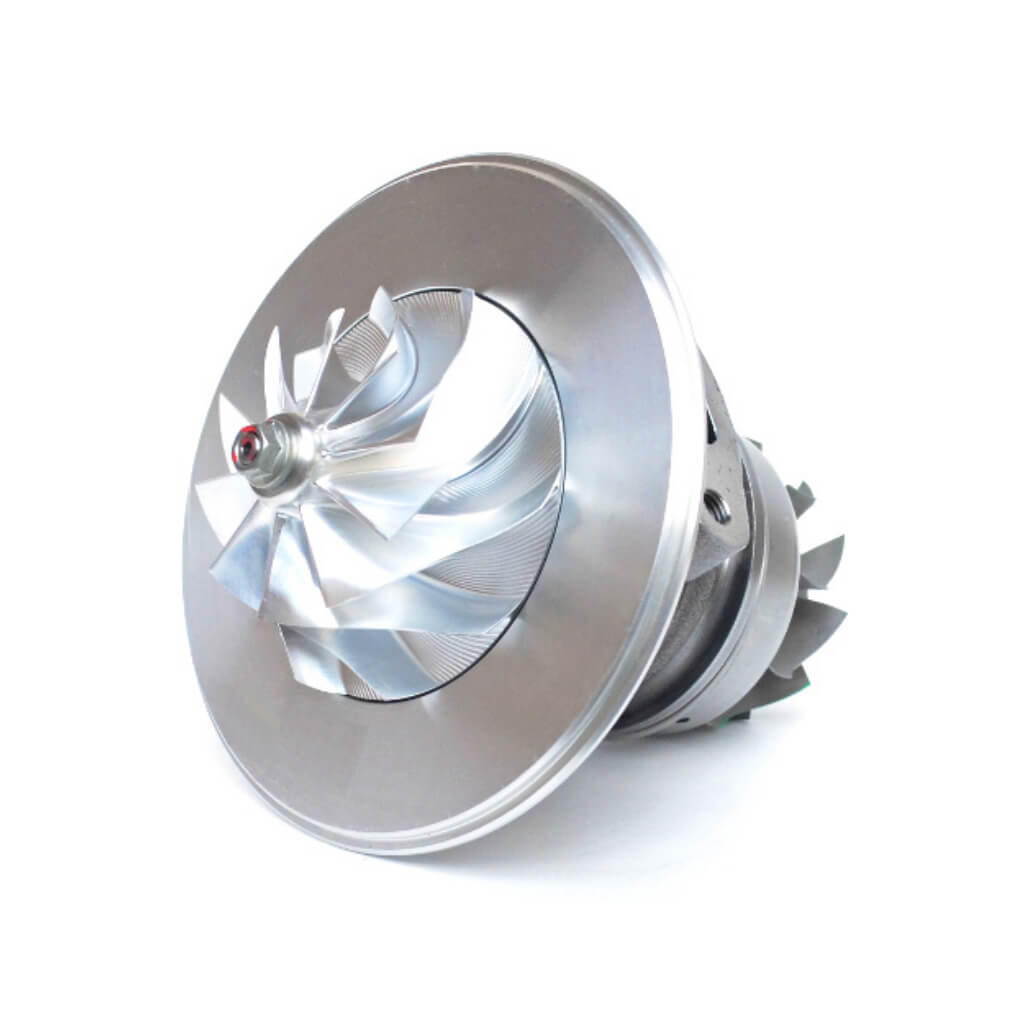

GARRETT 841297-5004S Turbocharger Super Core GTW3884 A/R 0.7 (w/o Housing Kit)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
GARRETT 841297-5004S Turbocharger Super Core GTW3884 A/R 0.7 (w/o Housing Kit)
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Garrett GTW Series turbochargers bring you the latest technologies with many advanced features to provide budget-minded enthusiasts cost-effective options to turbocharge their vehicles. These high performing mid-frame offerings are available in ball bearing and journal bearing options.
Garrett GTW Series turbochargers features
- Fully machined billet aluminum compressor wheels to provide optimal horsepower range and boost response
- Ported shroud compressor housings to increase surge resistance and to provide reliable, continuous power throughout the power band
- Lightweight aluminum backplates come standard on all GTW turbochargers reducing overall weight
- Water-cooled CHRA keeps housing temperatures to a minimum (not all options)
- Turbine wheels are constructed from Inconel, a super alloy that maintains strength during prolonged exposure to high exhaust gas temperatures (not all options)
- Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations
Technical characteristics
- Family: GTW
- Turbo Name: GTW3884
- Power Range: 450-950 HP
- Displacement: 2.0-6.0L
- Compressor Inducer: 64.3mm
- Compressor Exducer: 84.4mm
- Trim: 58
- A/R: 0.7
- Turbine Inducer: 74.2mm
- Turbine Exducer: 64.5mm
- Trim2: 76
- Cooling System: Oil and Water Cooled
- Wastegate: External
- Actuator Included: No
