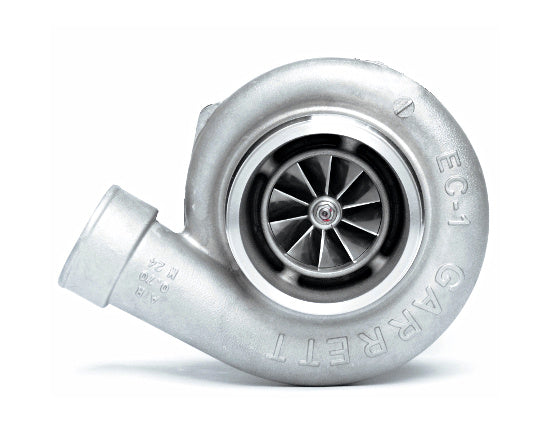

GARRETT 841297-5002S Turbocharger GTW3684 w/o Housing Kit

₴31,893.75

Shipping calculated at checkout

GARRETTP/N: 841297-5002S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

GARRETT 841297-5002S Turbocharger GTW3684 w/o Housing Kit

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611


GTW Series - Garrett's Performance solution to the popular size turbo. Great performance at a competitive price!
Garrett GTW Features:

Advanced aerodynamic compressor wheel
Forged aluminum compressor wheel
Available in ball bearing or journal bearing CHRA
T3 and T4 turbine housing options
GTW turbo models from 700 to 950+HP!


PRODUCT SPECIFICATIONS GTW3684JB:
Compressor Wheel Inducer: 62.3mm
Compressor Wheel Exducer: 84.4mm
Compressor Wheel Trim: 54
Turbine Wheel Inducer: 71.0mm
Turbine Wheel Exducer: 61.9mm
Turbine Wheel Trim: 76
Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.

Turbo ModelComp.
Wheel
Inducer
(mm)		Comp.
Wheel
Exducer
(mm)		Comp.
Wheel
Trim		Turbine
Wheel
Inducer
(mm)		Turbine
Wheel
Exducer
(mm)		Turbine
Wheel
Trim		Bearing
Type		Flow
Capacity
GTW3684JB (aka
GTW6262JB)		62.384.45471.061.976JB750 HP

APPLICABLE GARRETT PART NUMBERS:
715582-5007S
841297-5002S

APPLICATION NOTES:
NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
