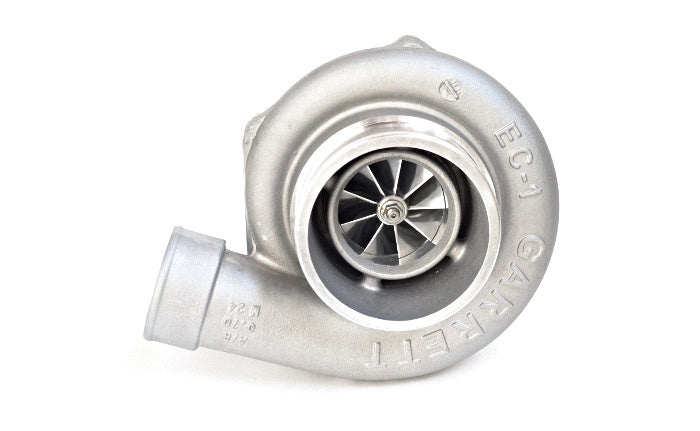

GARRETT 841297-5001S Turbocharger GTW3476 w/o Housing Kit
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 841297-5001S Turbocharger GTW3476 w/o Housing Kit
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
Garrett GTW Features:
Advanced aerodynamic compressor wheel
Forged aluminum compressor wheel
Available in ball bearing or journal bearing CHRA
T3 and T4 turbine housing options
GTW turbo models from 700 to 950+HP!
PRODUCT DESCRIPTION:
GTW3476JB (aka GTW5857JB) journal bearing turbo. 700HP potential flow.
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 58.3mm
Compressor Wheel Exducer: 76.4mm
Compressor Wheel Trim: 58
Turbine Wheel Inducer: 65.0mm
Turbine Wheel Exducer: 56.6mm
Turbine Wheel Trim: 76
| Turbo Model | Comp. Wheel Inducer (mm) | Comp. Wheel Exducer (mm) | Comp. Wheel Trim | Turbine Wheel Inducer (mm) | Turbine Wheel Exducer (mm) | Turbine Wheel Trim | Bearing Type | Flow Capacity |
| GTW3476JB aka GTW5857JB | 58.3 | 76.4 | 58 | 65.0 | 56.6 | 76 | JB | 700 HP |
APPLICATION NOTES:
NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
APPLICABLE GARRETT PART NUMBERS Garret GTW3476JB (aka GTW5857JB)::
715582-5005S
841297-5001S
