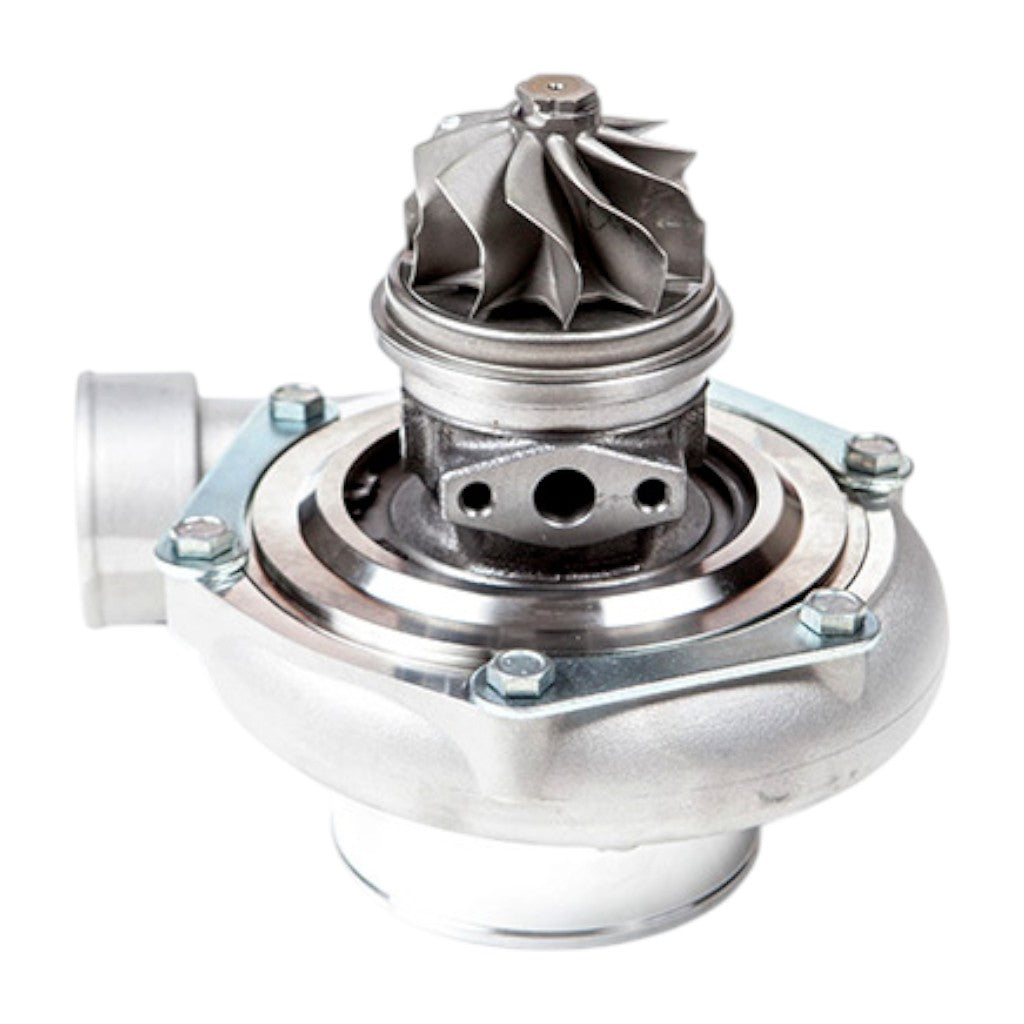

GARRETT 836047-5002S Turbocharger without Turbine Housing for GARRETT GTX3582R

Description GARRETT 836047-5002S Turbocharger without Turbine Housing for GARRETT GTX3582R

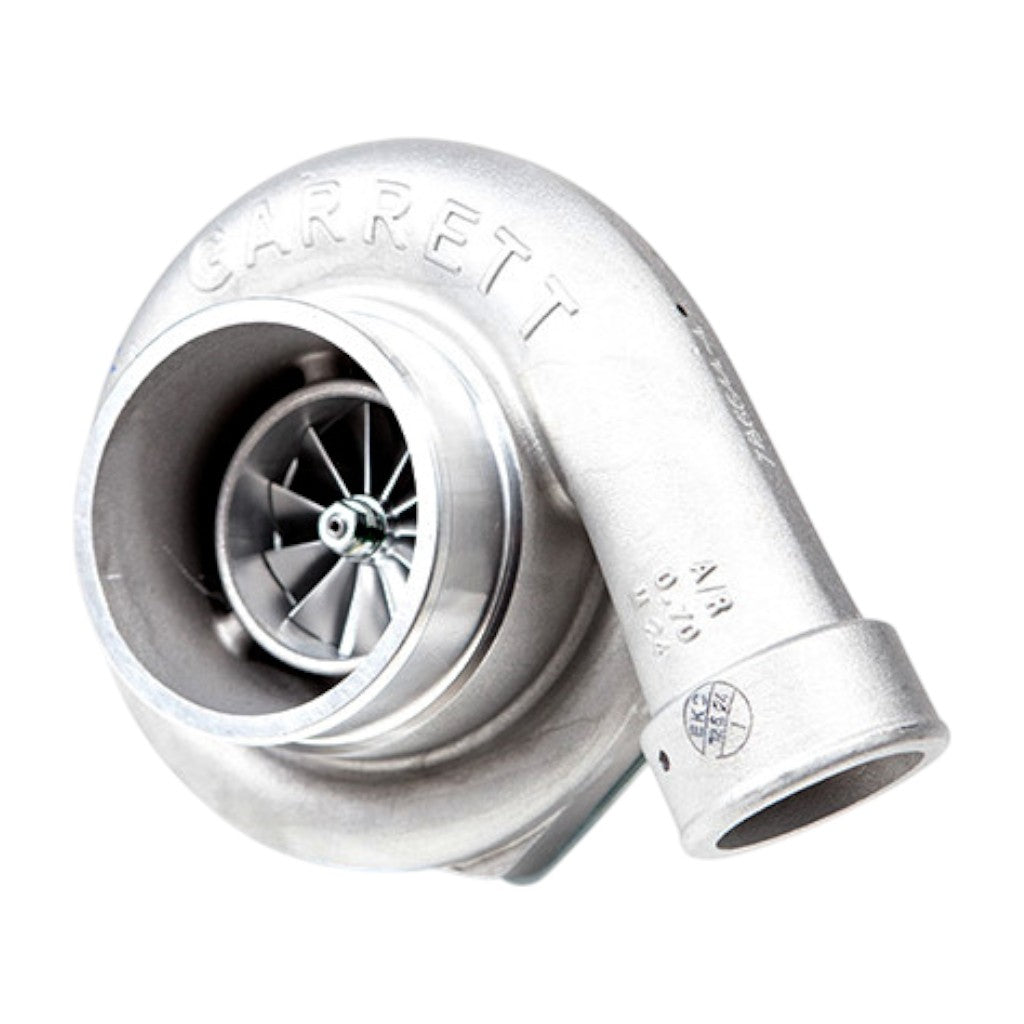

The GARRETT 836047-5002S turbocharger is a GTX3582R unit supplied without a turbine housing, incorporating Garrett’s proven dual ball bearing cartridge technology. This bearing system, validated in elite motorsport disciplines such as ChampCar, Le Mans, Pikes Peak, WRC, and drag racing, offers superior durability, reliability, and power delivery. The oil film design damps harmful vibrations, significantly extending turbo life. Featuring Garrett’s advanced 11-blade compressor wheel, the GTX3582R provides ultra-high airflow and rapid boost response with a potential output of up to 750 HP. The standard T04S frame compressor housing includes a 4-inch inlet, 2.5-inch outlet, and integrated anti-surge machining, with optional housings available.

• Dual ball bearing cartridge for durability and quick spool
• 11-blade compressor wheel for high efficiency and smooth operation
• Proven in top-tier motorsport applications worldwide
• Oil film bearing design reduces vibration and increases lifespan
• 750 HP potential flow capacity
• Standard T04S compressor housing with anti-surge feature

Specifications:

• Model: GTX3582R
• Garrett Turbo Part: 836047-5002S
• Garrett CHRA Part: 836019-5002S
• A/R: 0.70
• Compressor Wheel Inducer: 62.5 mm
• Compressor Wheel Exducer: 82.5 mm
• Compressor Trim: 56
• Turbine Wheel Inducer: 68.0 mm
• Turbine Wheel Exducer: 62.3 mm
• Turbine Trim: 84

Applicable Garrett Part Numbers:

• 803715-5001S
• 803715-1
• 706451-0034

CHRA Part:

• 706451-5034S

Optional Turbine Housings (sold separately):

• 740902-0016: 1.06 A/R
• 740902-0017: 0.82 A/R
• 740902-0018: 0.63 A/R
