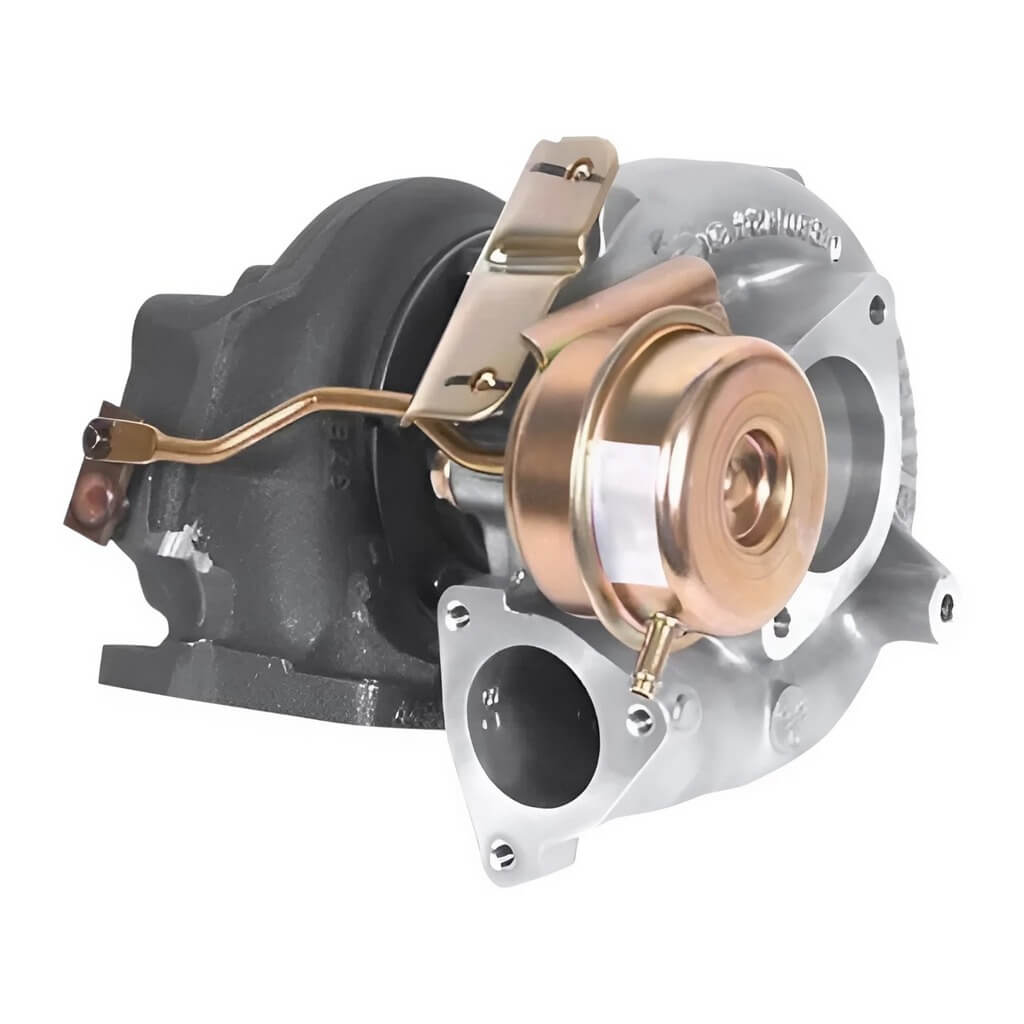

GARRETT 836023-5004S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 836023-5004S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description GARRETT 836023-5004S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate
The Garrett GT2560R turbocharger (PN: 836023-5004S) is designed for performance applications within compact engine platforms, supporting a wide power range while maintaining efficient airflow and responsiveness. Suitable for engines with displacement from 1.4L to 2.5L, it delivers reliable boost characteristics for both street and light motorsport use.
Specifications
- Power Range: 200 - 330 HP
- Compressor Inducer Diameter: 46 mm
- Compressor Exducer Diameter: 60 mm
- Compressor A/R: 0.80
- Turbine Inducer Diameter: 53 mm
- Turbine Exducer Diameter: 42 mm
- Turbine Trim: 62
- Turbine A/R: 0.64
- GT Series aerodynamic design for optimized airflow and efficiency
- Ball bearing CHRA with water cooling for improved response and durability
- Internally wastegated turbine housing for simplified boost management
- Supplied as a complete turbocharger with actuator and turbine components
- Turbine material: Inconel
