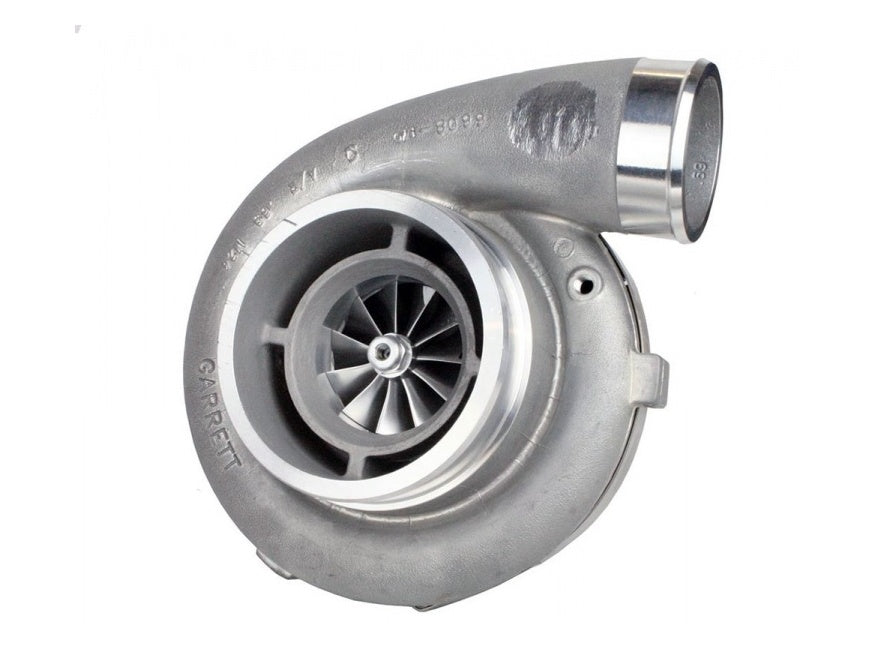

GARRETT 800269-5001S Turbocharger GTX4294R 82mm; 84 Trim 94mm; 56 Trim 0.60 A/R 71.33mm
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 800269-5001S Turbocharger GTX4294R 82mm; 84 Trim 94mm; 56 Trim 0.60 A/R 71.33mm
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
The next step in the evolution of the turbocharger is here! Garrett® GTX-R Turbos feature all new compressor wheels with next generation aerodynamics and improved efficiency to deliver wicked performance!
Garrett® GTX-R Turbochargers provide higher flow and greater boost pressure ratios beyond the world-class Garrett GT Series compressor wheels
- 10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
- Forged, fully machined wheels (billet) for expedited release
- 11 Full-blade design for improved efficiency and ultra quiet operation
- Outline interchangeable with Garrett® GT Series turbos
|
Turbine Hsg
| Part Number | Size | Material | A/R | TRIM | Inlet | Outlet |
| 757707-0500 | GT42 | SS | 1.00 | 84 | V-Clamp | V-Clamp |
| 757707-0010 | GT42 | Ni-Resist | 1.01 | 84 | T18 | V-Clamp |
| 757707-0001 | GT42 | Ni-Resist | 1.01 | 84 | T4 | V-Clamp |
| 757707-0009 | GT42 | Ni-Resist | 1.15 | 84 | T18 | V-Clamp |
| 757707-0002 | GT42 | Ni-Resist | 1.15 | 84 | T4 twin scroll | V-Clamp |
| 757707-0516 | GT42 | SS | 1.16 | 84 | V-Clamp | V-Clamp |
| 757707-0003 | GT42 | Ni-Resist | 1.28 | 84 | T4 twin scroll | V-Clamp |
| 757707-0530 | GT42 | SS | 1.30 | 84 | V-Clamp | V-Clamp |
| 757707-0004 | GT42 | Ni-Resist | 1.44 | 84 | T4 twin scroll | V-Clamp |
Old Part Garrett
| Turbo Part | CHRA Part |
| 451888-0043 |
