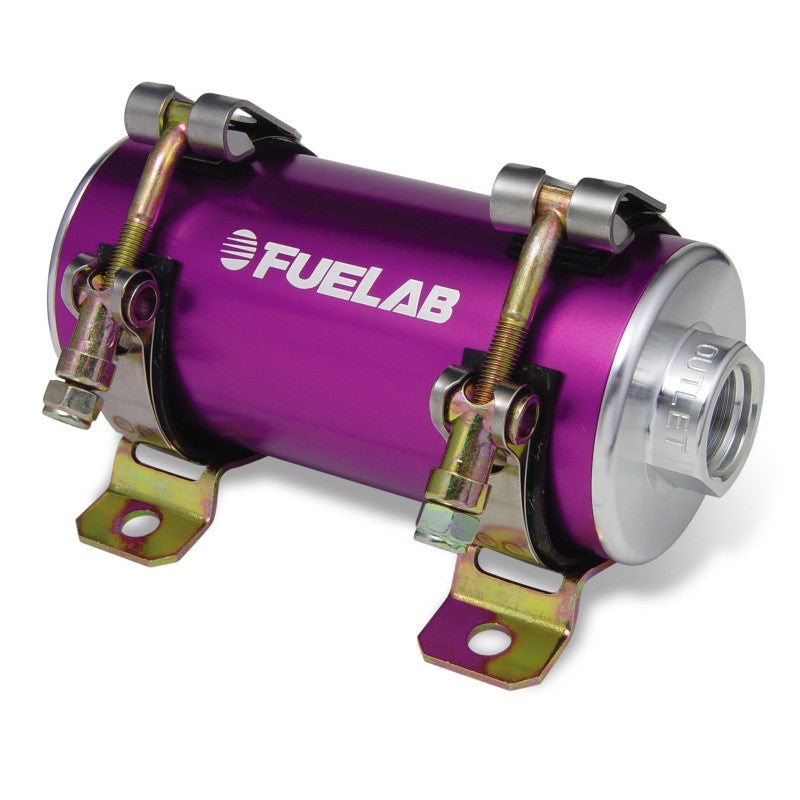

FUELAB 41404-4 Carbureted In-Line Fuel Pump PRODIGY (200 GPH @ 20 PSI, 30 PSI max, up to 2000 HP) Purple

Developed from our successful 41403 model, it has all the benefits of its high flow and low current draw with an added external bypass on the outlet of the pump. This pump is designed for use with a blocking style regulator. 200 GPH @ 20 PSI, 30 PSI MAX.

Power Ratings (at the flywheel) :

• Up to 2000HP N/A on Gas
• Up to 1675HP N/A on E85
• Up to 925HP N/A on Methanol

Our Prodigy line of fuel pumps were born of inspiration and innovation, and our DC brushless technology stands alone as the benchmark in demand based fuel delivery systems. Each Prodigy pump is hand built, tested and certified at our facility in Collinsville, IL under strict quality and rigorous testing guidelines before shipping. We have 11 innovative models available ranging in performance levels to give you the confidence and competitive edge you demand

Pump Features

• Compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quiet operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty–motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• High quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style –10AN fittings

Pulse Width Modulation Compatibility (PWM)

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt
