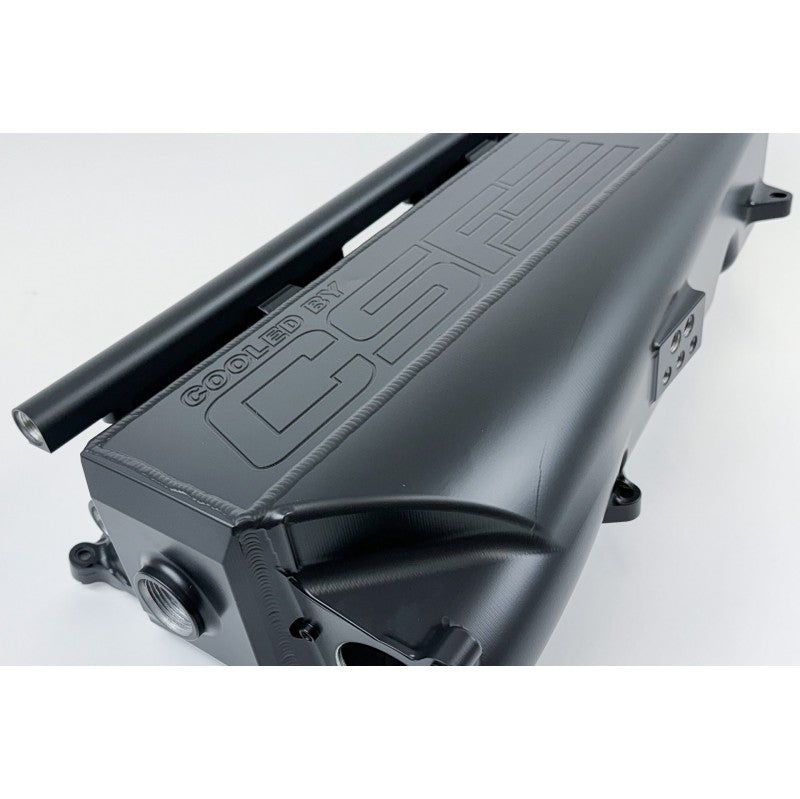

CSF 8400B Charge Air Cooler Manifold RACE X (thermal black finish) for TOYOTA GR Supra (A90/A91) / BMW M340iX (G20/G21)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 8400B Charge Air Cooler Manifold RACE X (thermal black finish) for TOYOTA GR Supra (A90/A91) / BMW M340iX (G20/G21)
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) – 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
- Core can be setup for dual or single pass configuration
- The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Comes with CNC machined plug to use in dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)

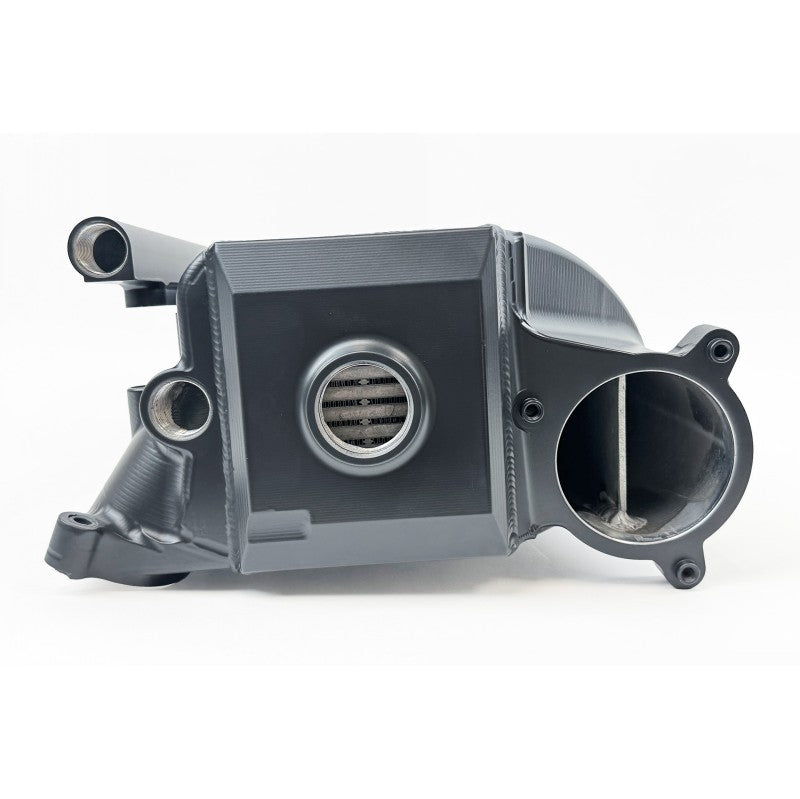

- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core

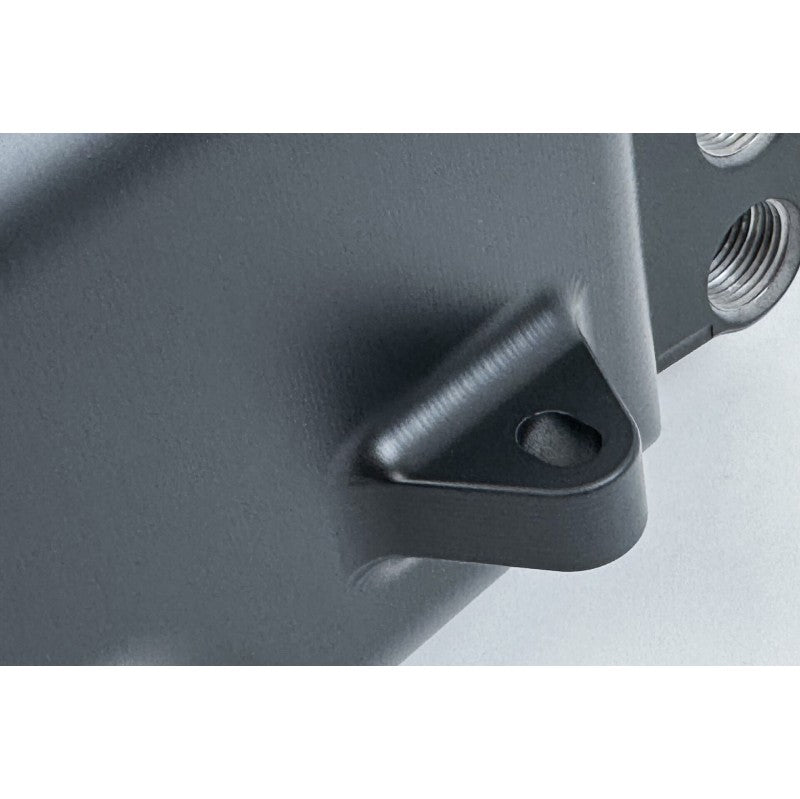

- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes

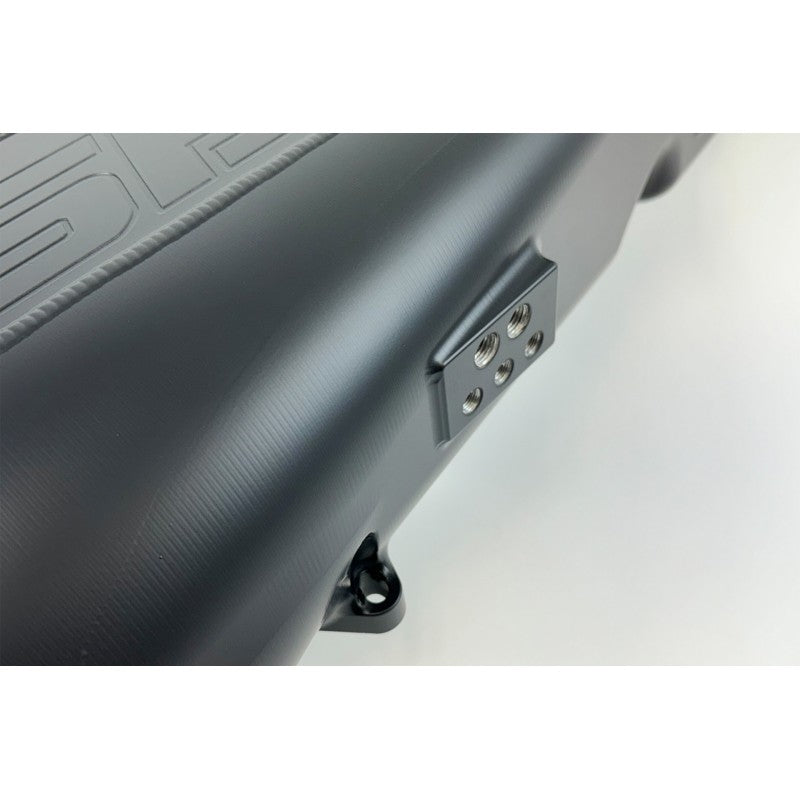

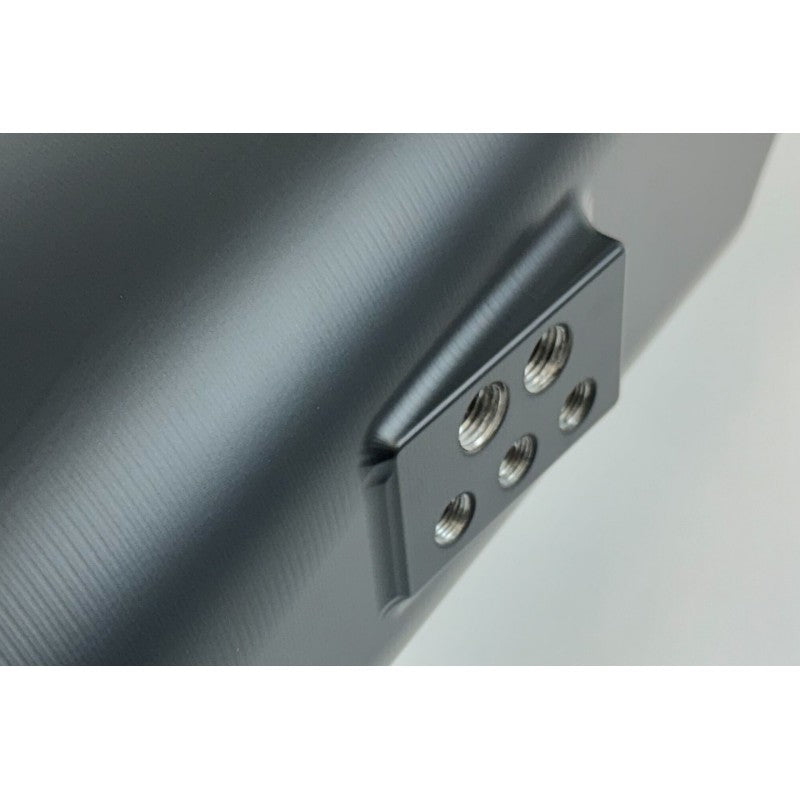

- Integrated Sensor Pad with Two 1/4″ and Three 1/8″ NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum

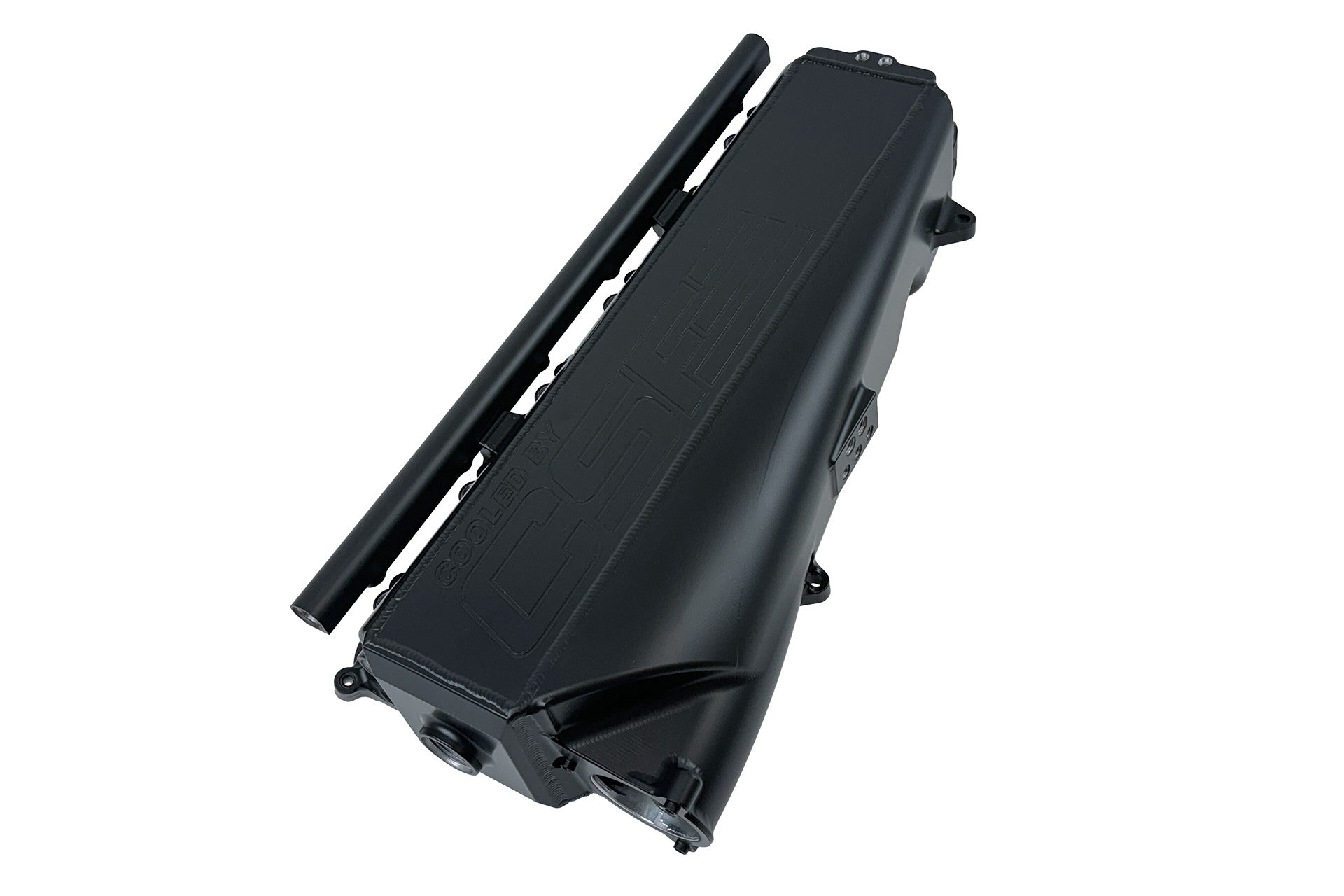

- Included Fuel Rail for Top Feed Port Injection

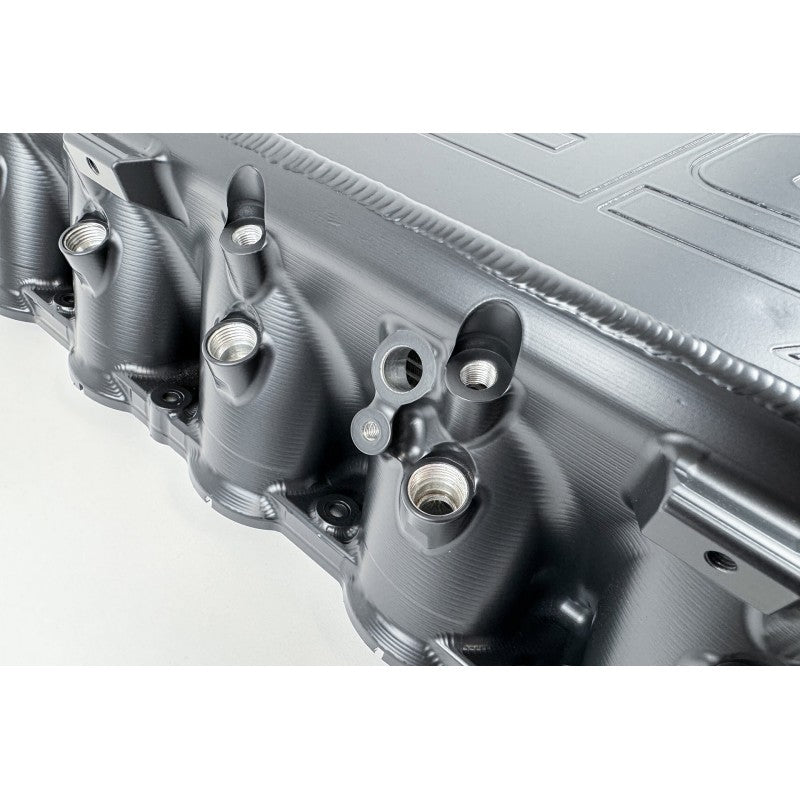

- Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance

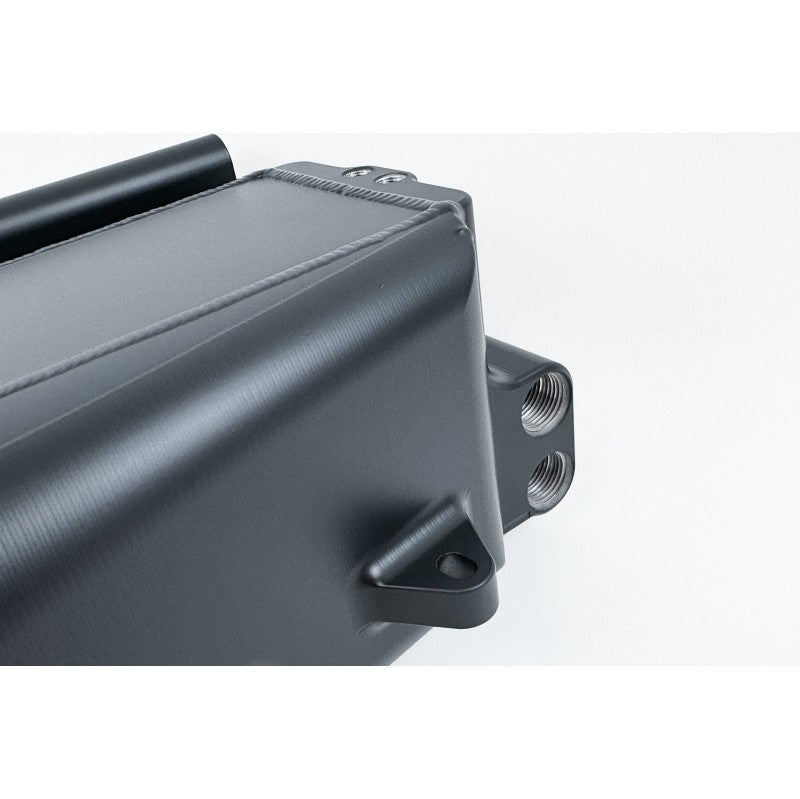

- Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Some modifications to install – this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
- Includes Hardware and Installation Kit with Picture Diagrams and Instructions
Disclaimer:
CSF pressure tests each #8400 manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process. The CSF manifold is not designed to operate above 60 PSI. Any users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited 2 Year Warranty.
OEM Part Number:
- Toyota: 17101-WAA01
- BMW: 11-61-8-647-977
Applications:
*B58 (Gen 2 – B58B30M1, B58B30C, & B58B30O1) motors only. Some Model Years equipped with this motor vary by region
- 2020-2023 Toyota GR Supra 3.0L (Base)
- 2020 Toyota GR Supra 3.0L (Launch Edition)
- 2021 Toyota GR Supra 3.0L (A91 Edition)
- 2020-2023 Toyota GR Supra 3.0L (Premium)
- 2022+ BMW M240iX (G42)
- 2018+ BMW M340i (G20)
- 2018+ BMW M340iX (G20)
- 2018+ BMW M340iX (G21)
- 2020+ BMW 440i (G22)
- 2020+ BMW 440i (G23)
- 2020+ BMW 440i (G26)
- 2018+ BMW 540i (G30)
- 2018+ BMW 540iX (G30)
- 2018+ BMW 540iX (G31)
- 2018+ BMW 630iX (G32)
- 2018+ BMW 640i (G32)
- 2018+ BMW 640iX (G32)
- 2018+ BMW 740i (G11)
- 2018+ BMW 745e (G11)
- 2018+ BMW 740i (G12)
- 2018+ BMW 740iX (G12)
- 2018+ BMW 740Li (G12)
- 2018+ BMW 740LiX (G12)
- 2018+BMW 745eX (G12)
- 2018+ BMW 745Le (G12)
- 2018+ BMW 745LeX (G12)
- 2018+ BMW 840i (G14)
- 2018+ BMW 840iX (G14)
- 2018+BMW 840i (G15)
- 2018+ BMW 840iX (G15)
- 2018+ BMW 840i (G16)
- 2018+ BMW 840iX (G16)
- 2018+ BMW X3 M40iX (G01)
- 2018+ BMW X4 M40iX (G02)
- 2018+ BMW X5 45i (G05)
- 2018+ BMW X5 45iX (G05)
- 2018+ BMW X5 45eX (G05)
- 2018+ BMW X6 40i (G06)
- 2018+ BMW X6 40iX (G06)
- 2018+ BMW X7 40iX (G07)
- 2018+ BMW Z4 M40i (G29)
