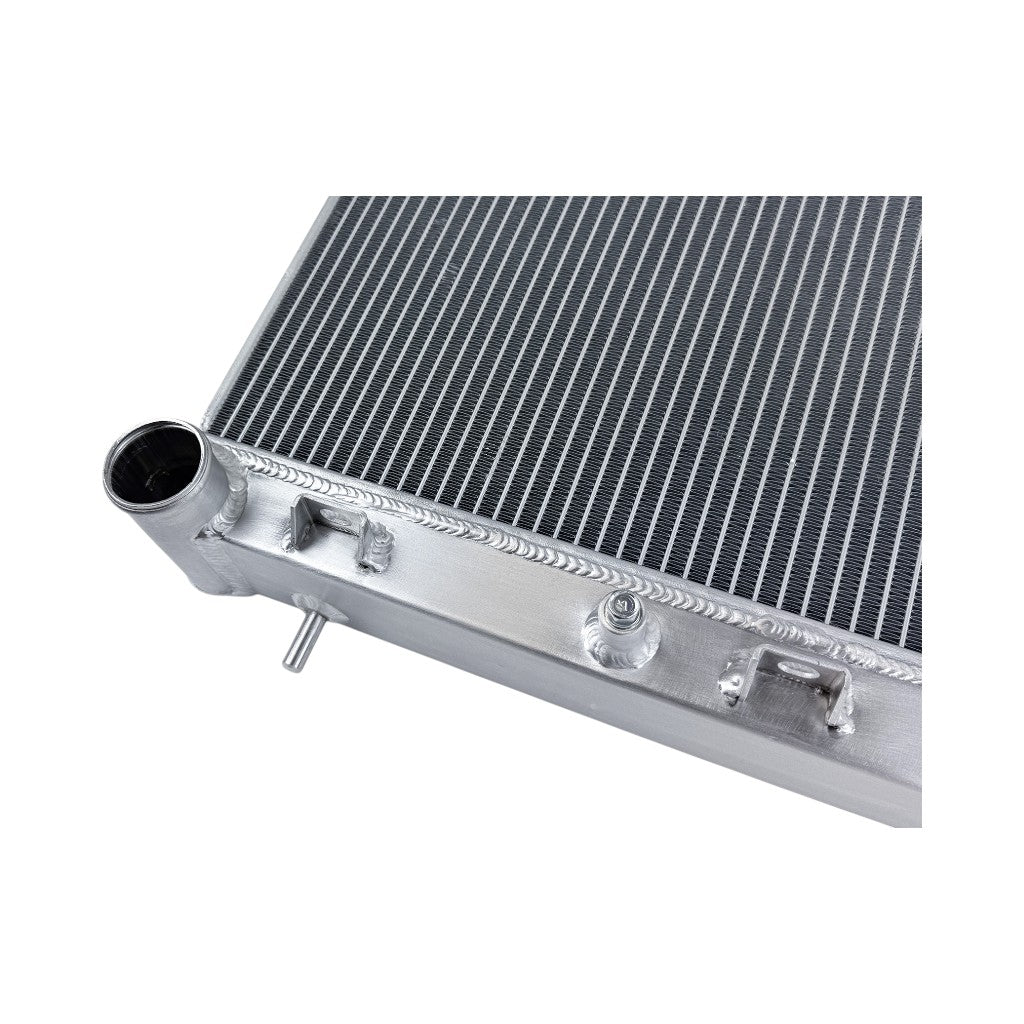

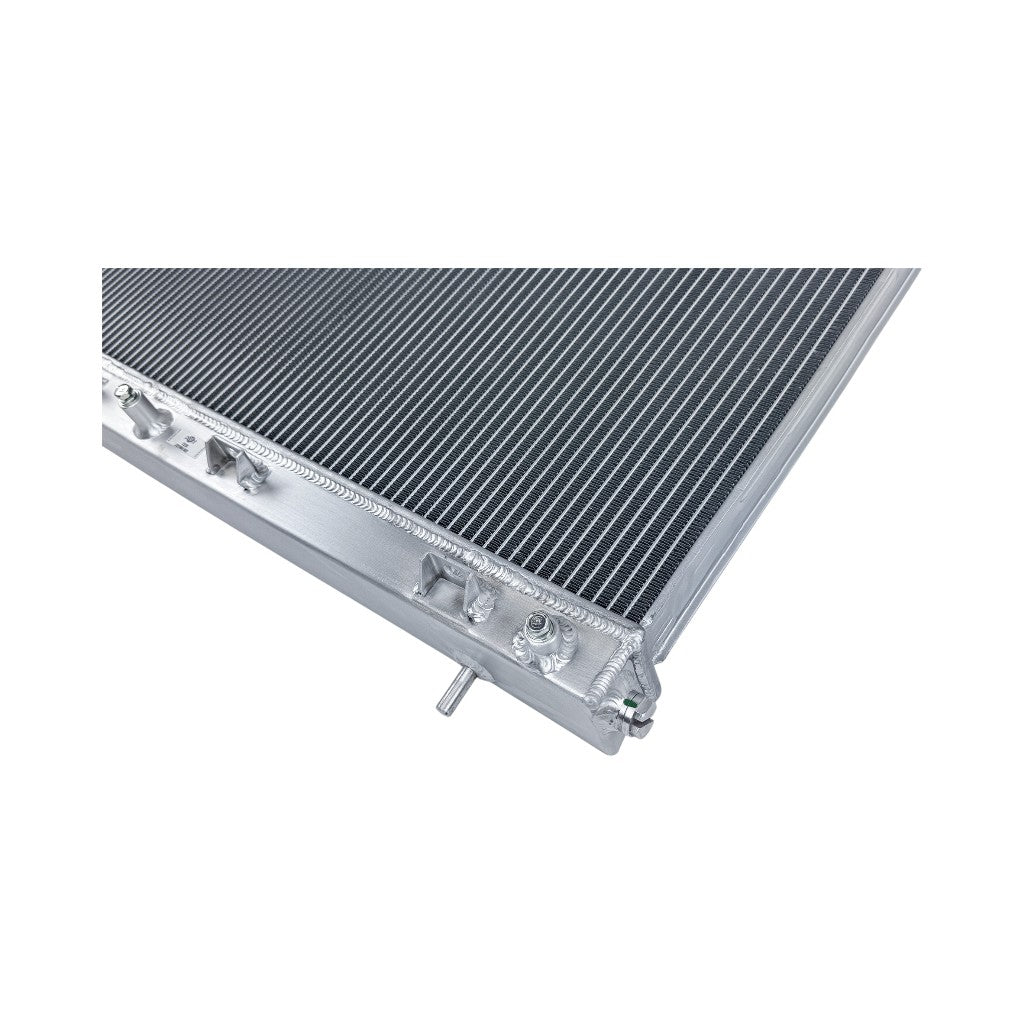

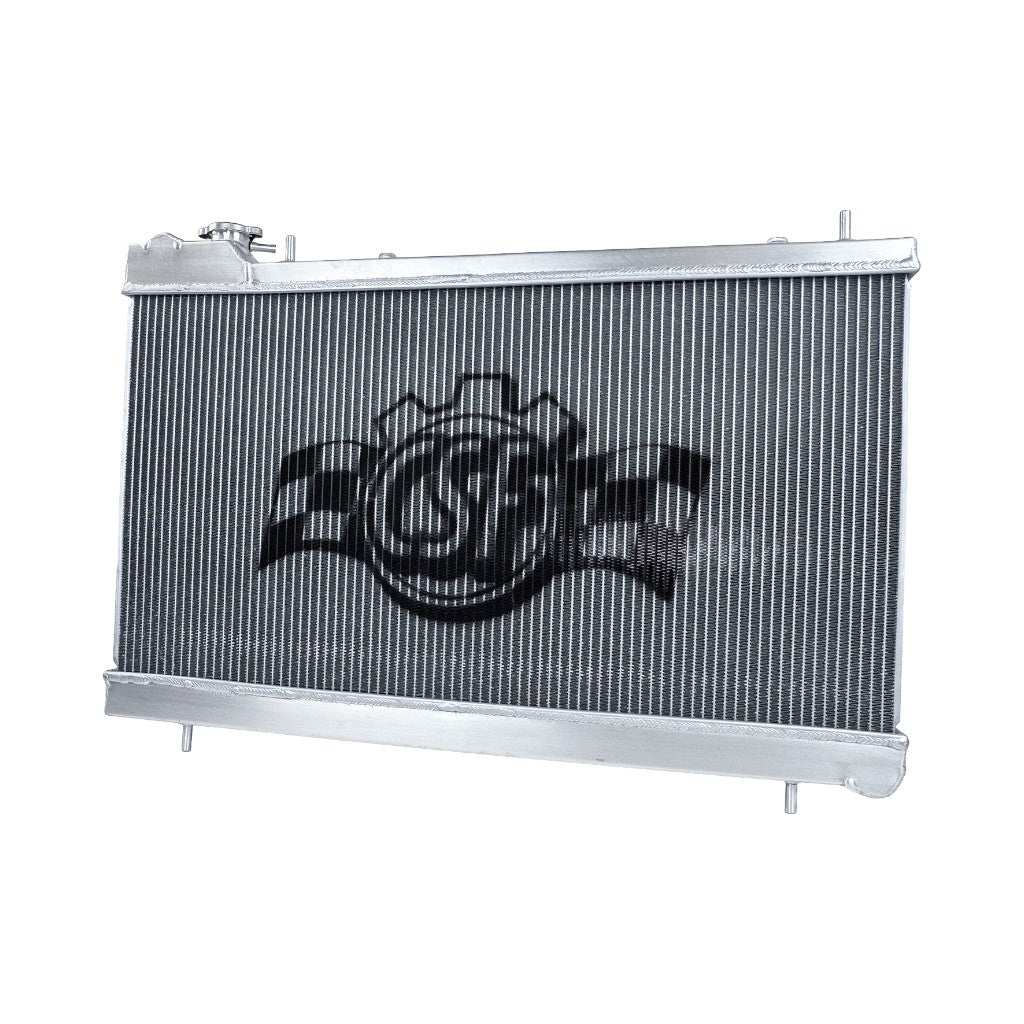

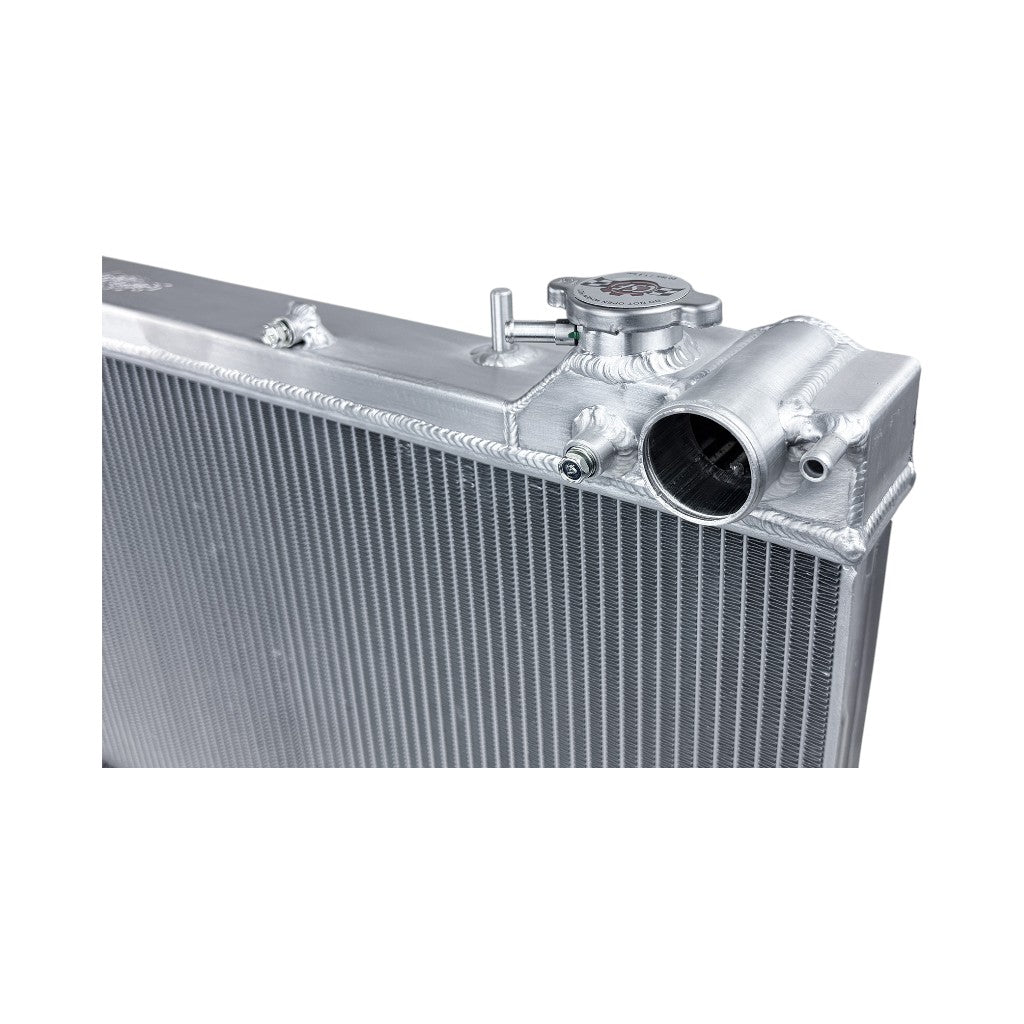

CSF 7235 High Performance Cooling Radiator for SUBARU Forester XT (Manual Transmission Only) 2006-2008

The CSF 42mm 2-Row aluminum core is more than double the size of the OEM core. A thicker core, second cooling row, and increased fluid capacity drastically improves the amount of heat the system can absorb and dissipate. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible cooling performance.

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.

• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2006-2008 Forester XT Limited (Manual Transmission Only)
• 2008 Forester Sports 2.5 XT (Manual Transmission Only)
• 2008 Forester 2.5 XT (Manual Transmission Only)

OEM Part Numbers:

• Subaru: 45111-SA141
