CSF 7091 High-Performance 2-Row Radiator for AUDI (B8) S4/S5 / PORSCHE Macan S/GTS
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CSF 7091 High-Performance 2-Row Radiator for AUDI (B8) S4/S5 / PORSCHE Macan S/GTS
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine

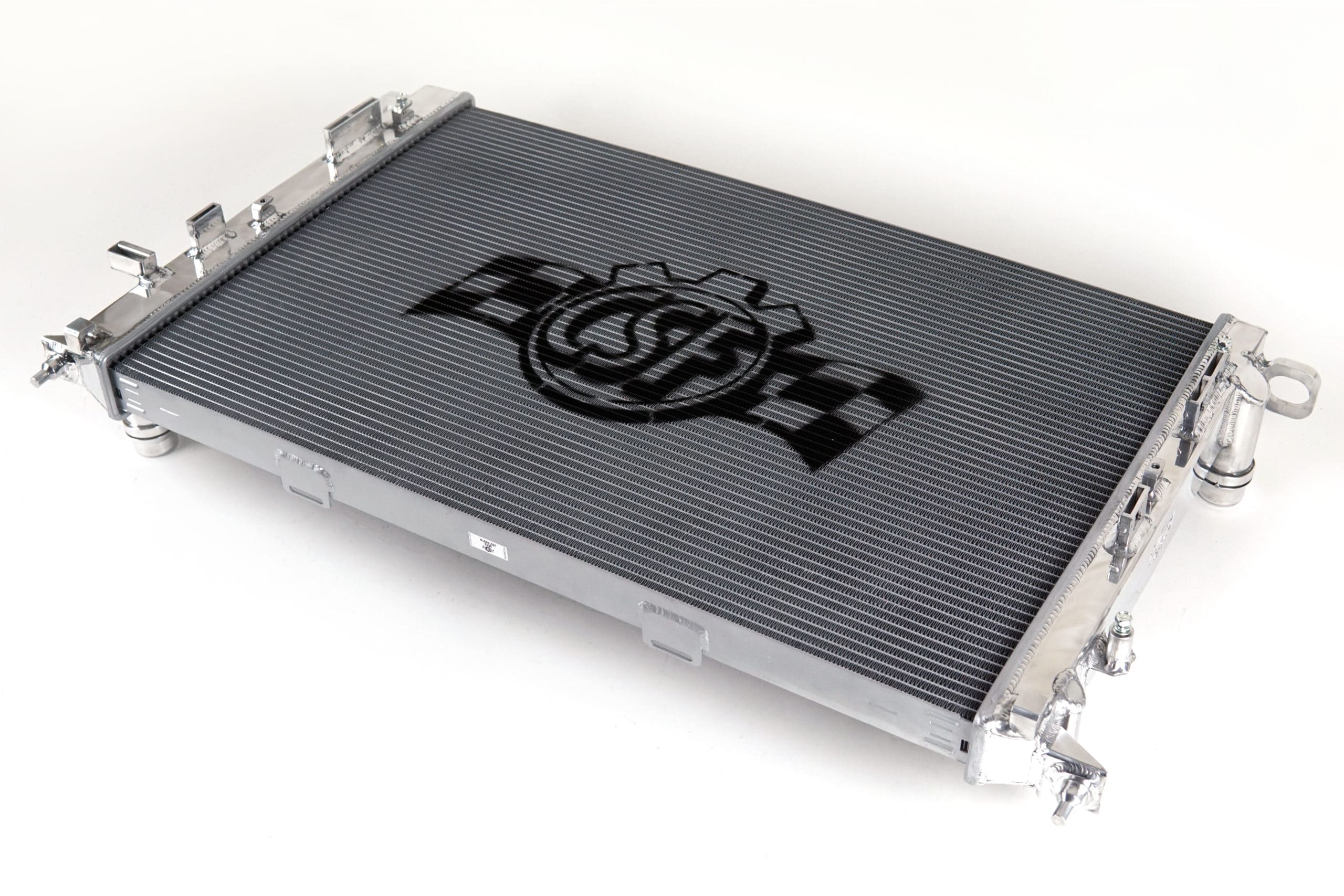

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape \"O\" type radiator tube, CSF uses a specially engineered tube in the shape of a \"B\". These \"B-tubes\" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal \"O\" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With \"B-tubes\" you are able to get \"dual liquid laminar flow\". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

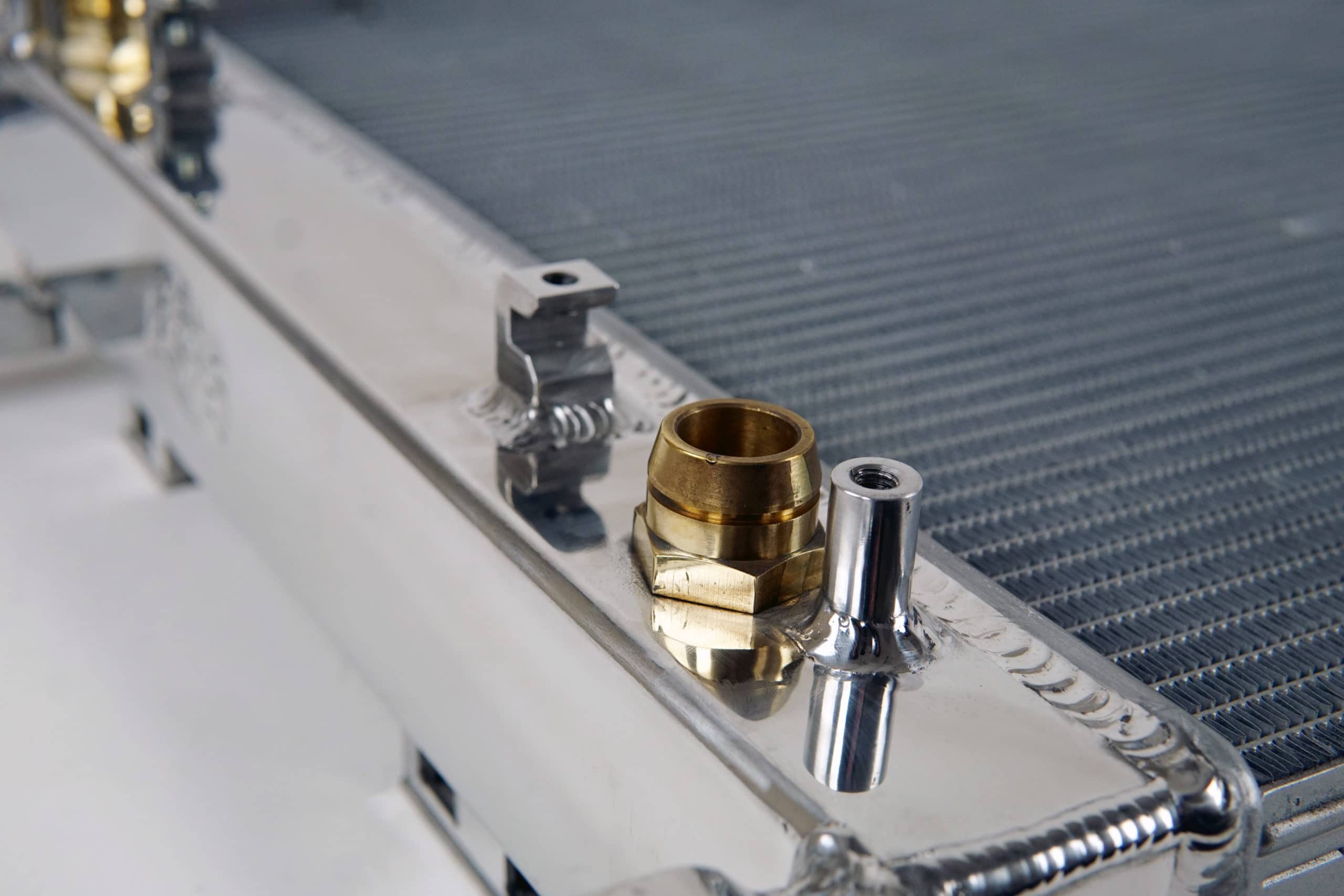

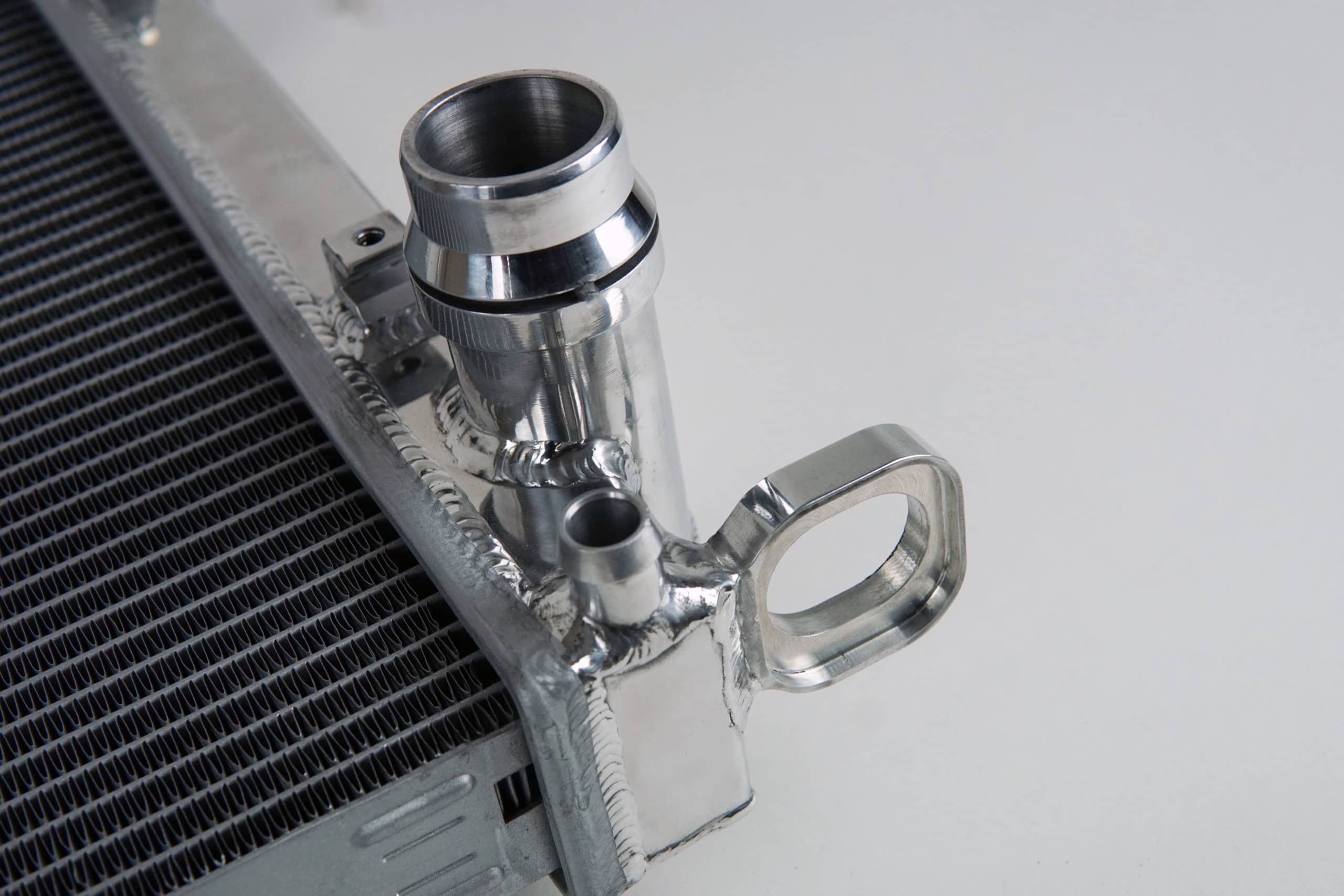

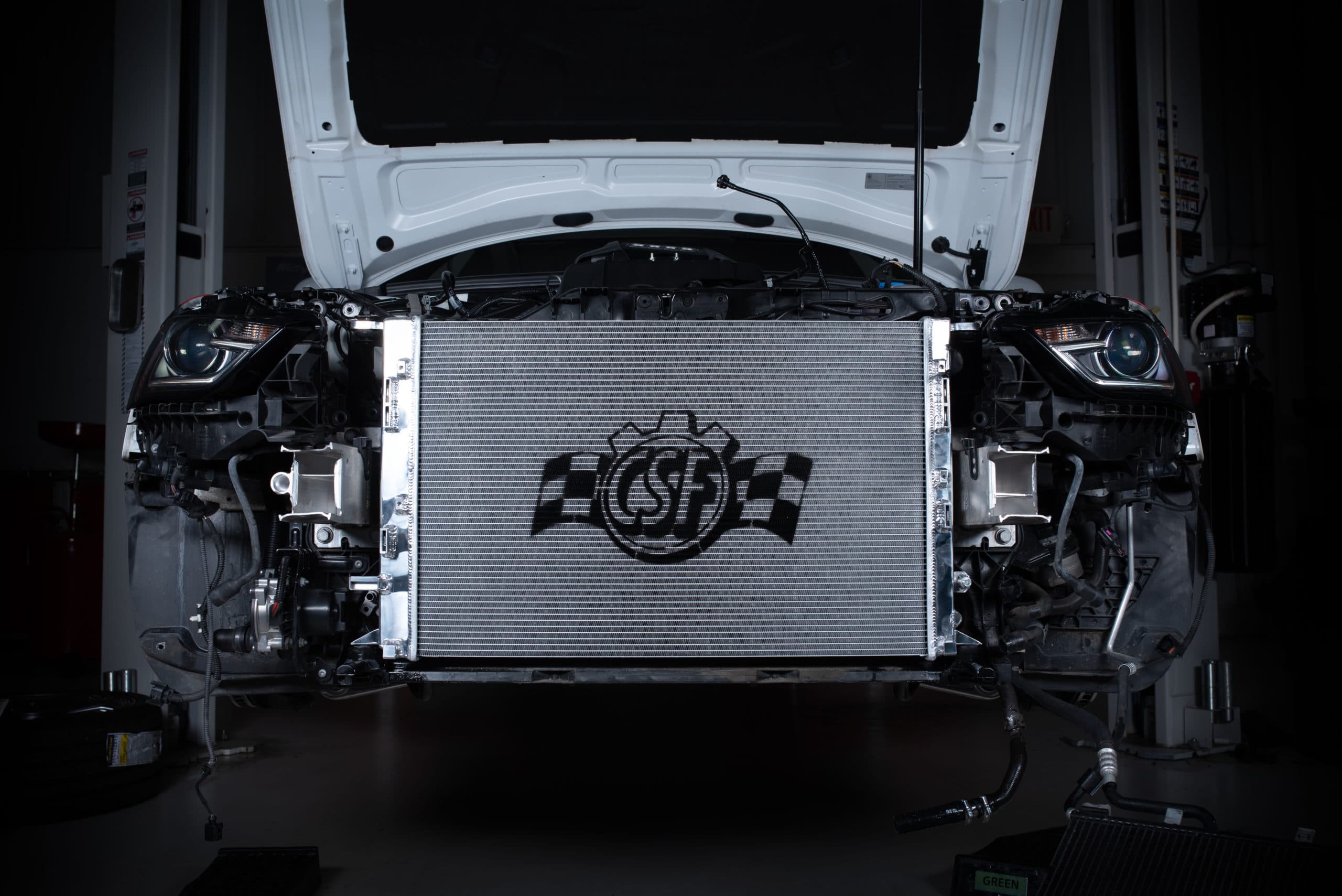

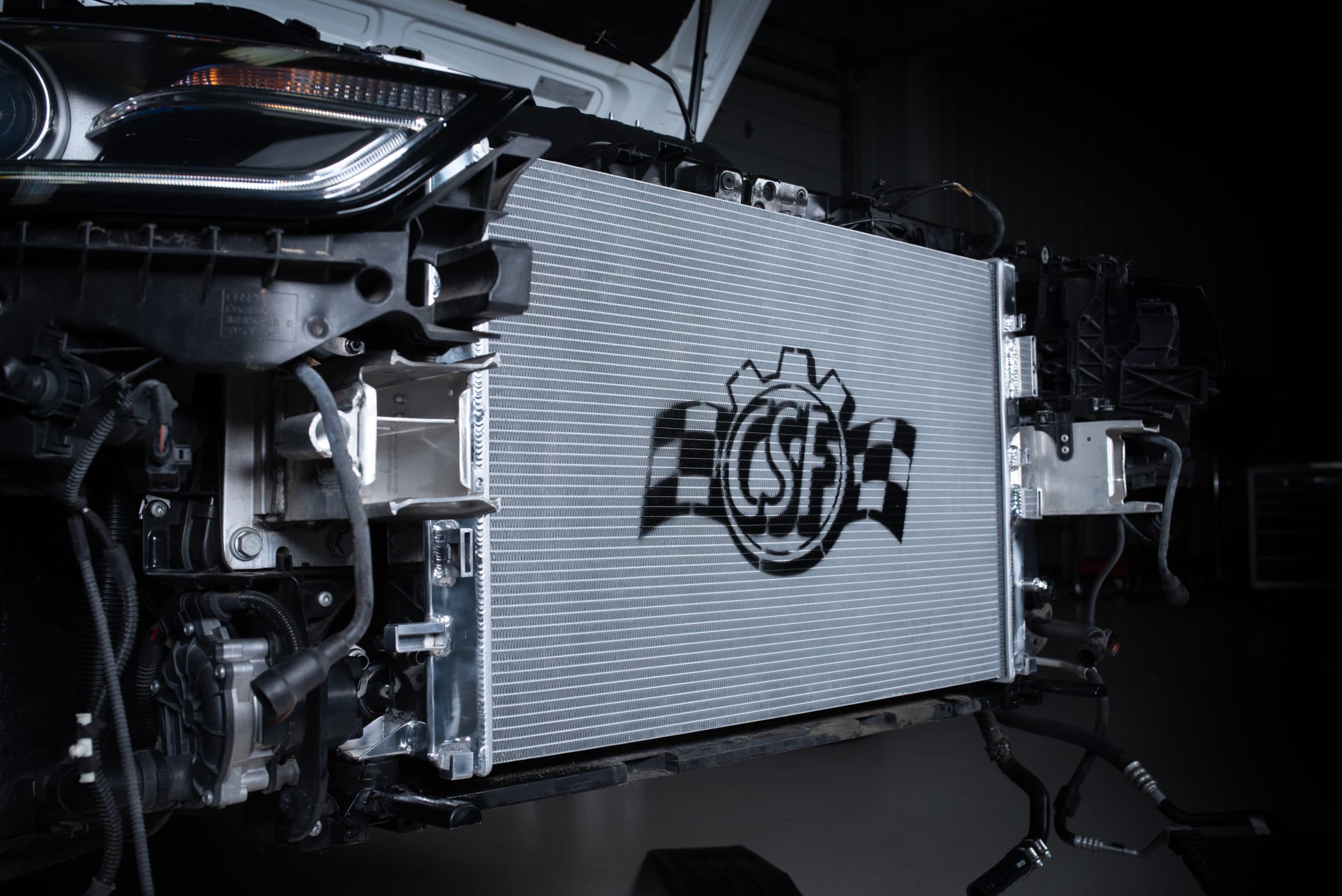

The CSF Audi radiator is a true \"Drop-in fit\" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. In addition, CSF has added an upgraded plate-type transmission oil cooler to the left side tank for improved transmission cooling in vehicles with automatic transmissions (comes pre-plugged for use in manual transmission vehicles).
Applications
- 2009-2012 Audi A4 Quattro - 3.2L V6 (Automatic)
- 2009-2012 Audi A4 Quattro - 3.2L V6 (Manual)
- 2013-2014 Audi A4 Quattro - Supercharged 3.0L V6 (Manual)
- 2010 Audi A5 - 3.2L V6 (Automatic)
- 2008-2011 Audi A5 Quattro - 3.2L V6 (Automatic)
- 2008-2011 Audi A5 Quattro - 3.2L V6 (Manual)
- 2012-2016 Audi A5 Quattro - Supercharged 3.0L V6 (Automatic)
- 2012-2016 Audi A5 Quattro - Supercharged 3.0L V6 (Manual)
- 2016 Audi A6 - Supercharged 3.0L V6 (Manual)
- 2012-2018 Audi A6 Quattro - Supercharged 3.0L V6 (Automatic)
- 2012-2018 Audi A6 Quattro - Supercharged 3.0L V6 (Manual)
- 2012-2016 Audi A6 Quattro - Turbocharged 3.0L V6
- 2012-2018 Audi A7 Quattro - Supercharged 3.0L V6
- 2014-2016 Audi A7 Quattro - Turbocharged 3.0L V6
- 2009-2012 Audi Q5 - 3.2L V6
- 2010-2017 Audi Q5 - Turbocharged 3.0L V6
- 2013-2017 Audi Q5 - Supercharged 3.0L V6
- 2010-2016 Audi S4 - Supercharged 3.0L V6 (Automatic)
- 2010-2016 Audi S4 - Supercharged 3.0L V6 (Manual)
- 2010-2017 Audi S5 - Supercharged 3.0L V6 (Automatic)
- 2010-2017 Audi S5 - Supercharged 3.0L V6 (Manual)
- 2014-2017 Audi SQ5 - Supercharged 3.0L V6
- 2017-2018 Porsche Macan GTS - Turbocharged 3.0L V6
- 2015-2021 Porsche Macan S - Turbocharged 3.0L V6
- 2015-2021 Porsche Macan - Turbocharged 3.0L V6
OEM Part Numbers
- Audi: 8K0 121 251 AL
- Audi: 8K0-121-251-AL
- Audi: 8K0121251AL
- Audi: 8K0 121 251 H
- Audi: 8K0-121-251-H
- Audi: 8K0121251H
- Porsche: 9A7 121 251 01
- Porsche: 9A7-121-251-01
- Porsche: 9A712125101
