COBB AP3-NIS-006 AccessPORT with TCM Flashing for NISSAN GT-R (R35) 2009-2014

Description COBB AP3-NIS-006 AccessPORT with TCM Flashing for NISSAN GT-R (R35) 2009-2014

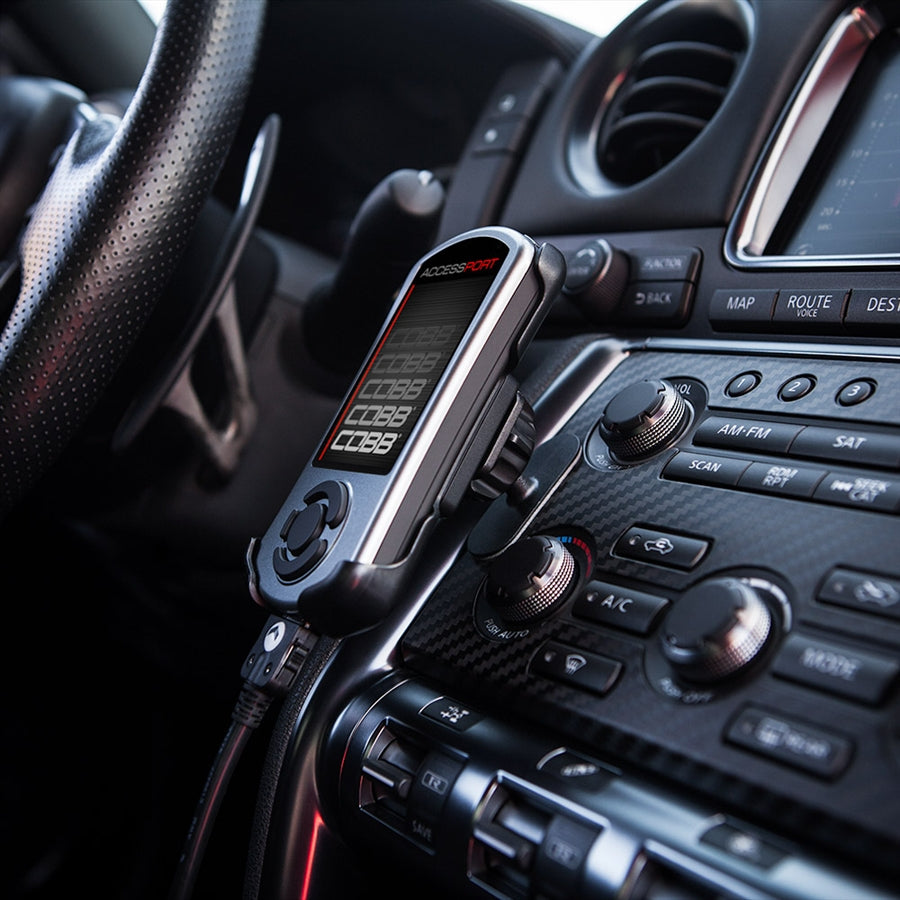

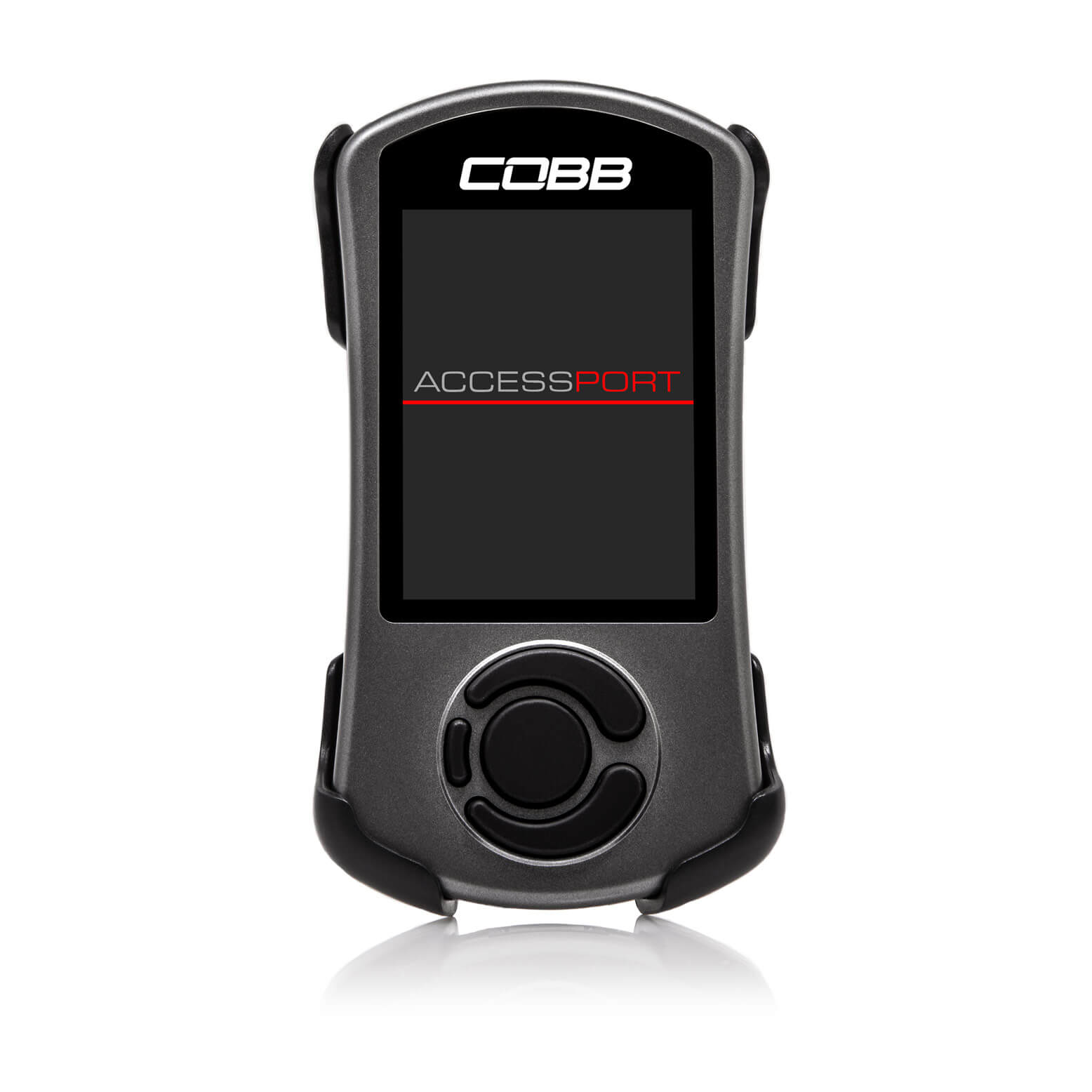

The COBB Accessport V3 (AP3-NIS-006) for the Nissan GT-R is an advanced ECU and TCM flashing and monitoring solution designed for in-cabin installation. Equipped with a large, full-color, high-resolution display, it enables real-time monitoring of up to six parameters simultaneously. Increased processing power, expanded memory, and enhanced storage capacity ensure faster flashing performance while securely storing calibration maps and data logs.

This version supports both Engine Control Unit (ECU) and Transmission Control Module (TCM) calibration. Conservative factory settings can be replaced with performance-oriented tuning strategies using pre-loaded Off The Shelf (OTS) maps or custom calibrations tailored to specific modification levels.

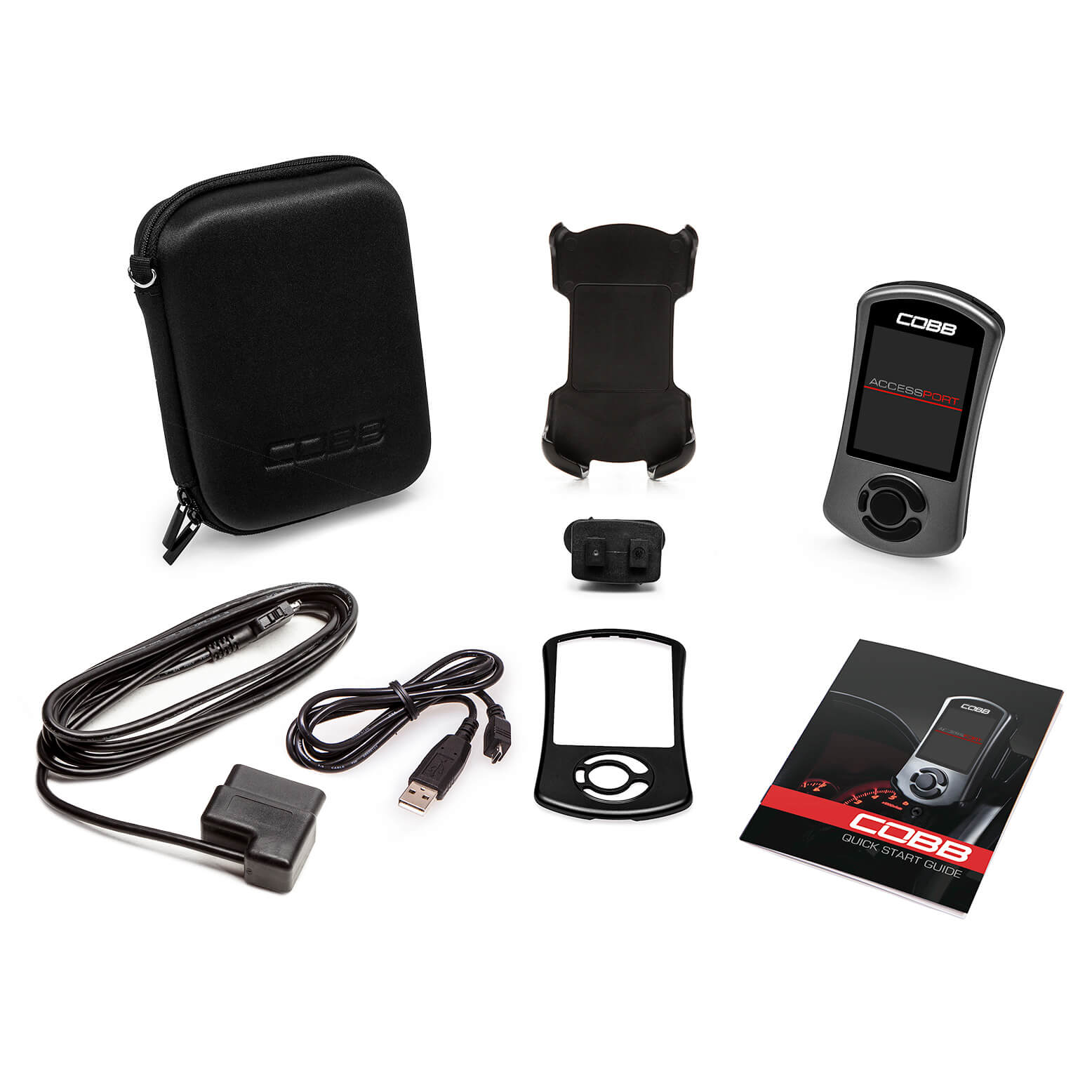

• Nissan GT-R Accessport V3 (AP3-NIS-006) with TCM flashing support
• ECU and TCM flashing capability
• Larger full-color, high-resolution display
• Customizable multi-gauge layouts (street, race, dyno)

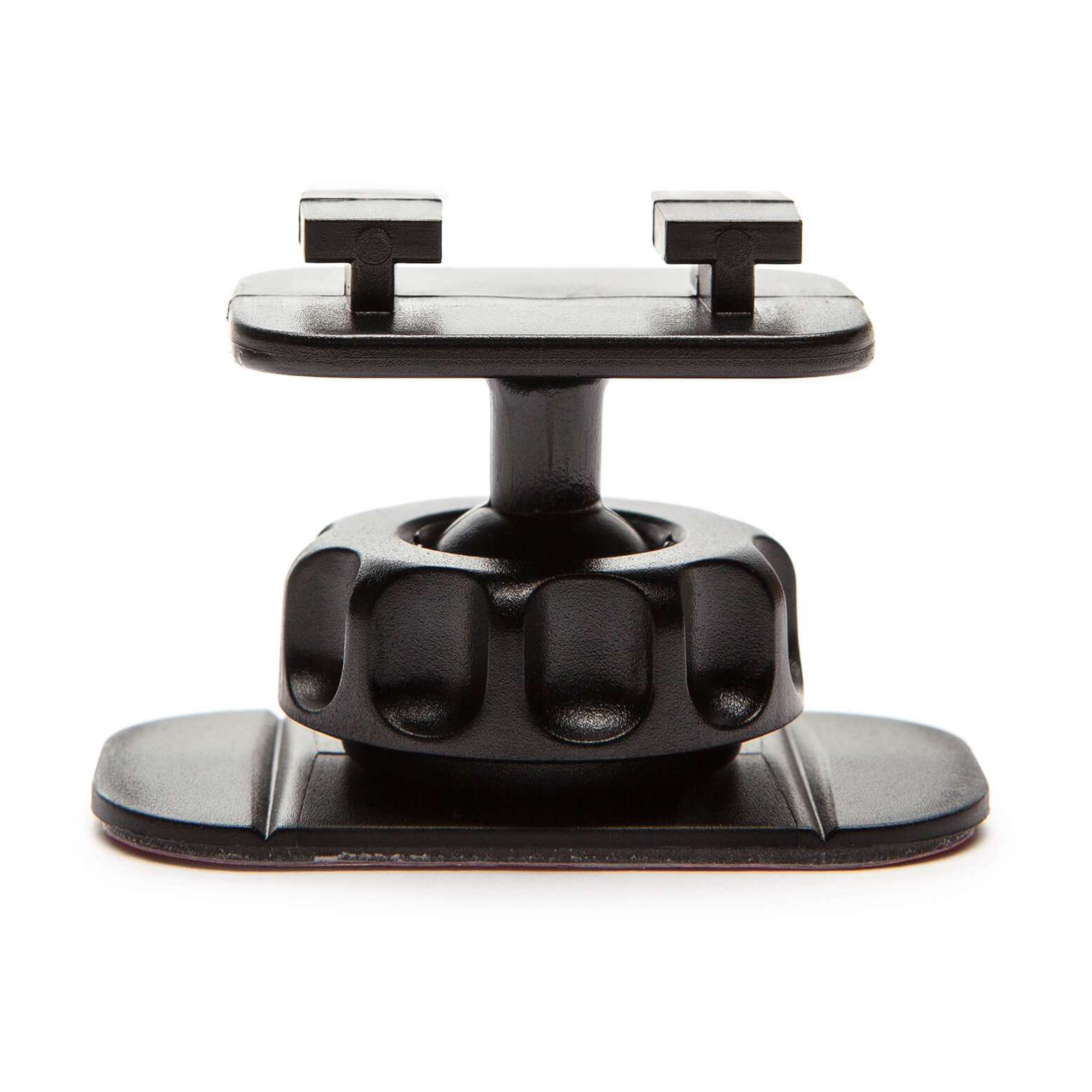

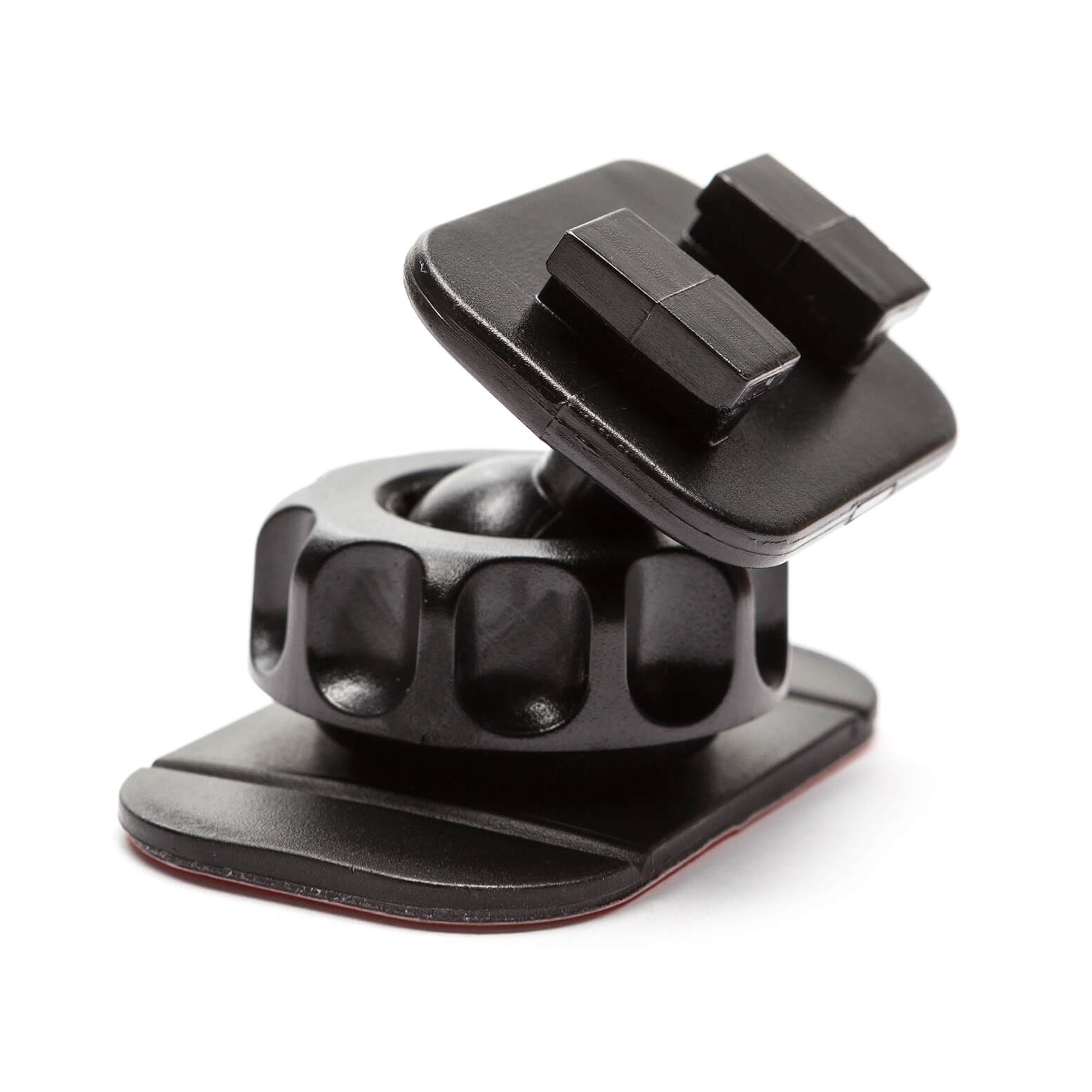

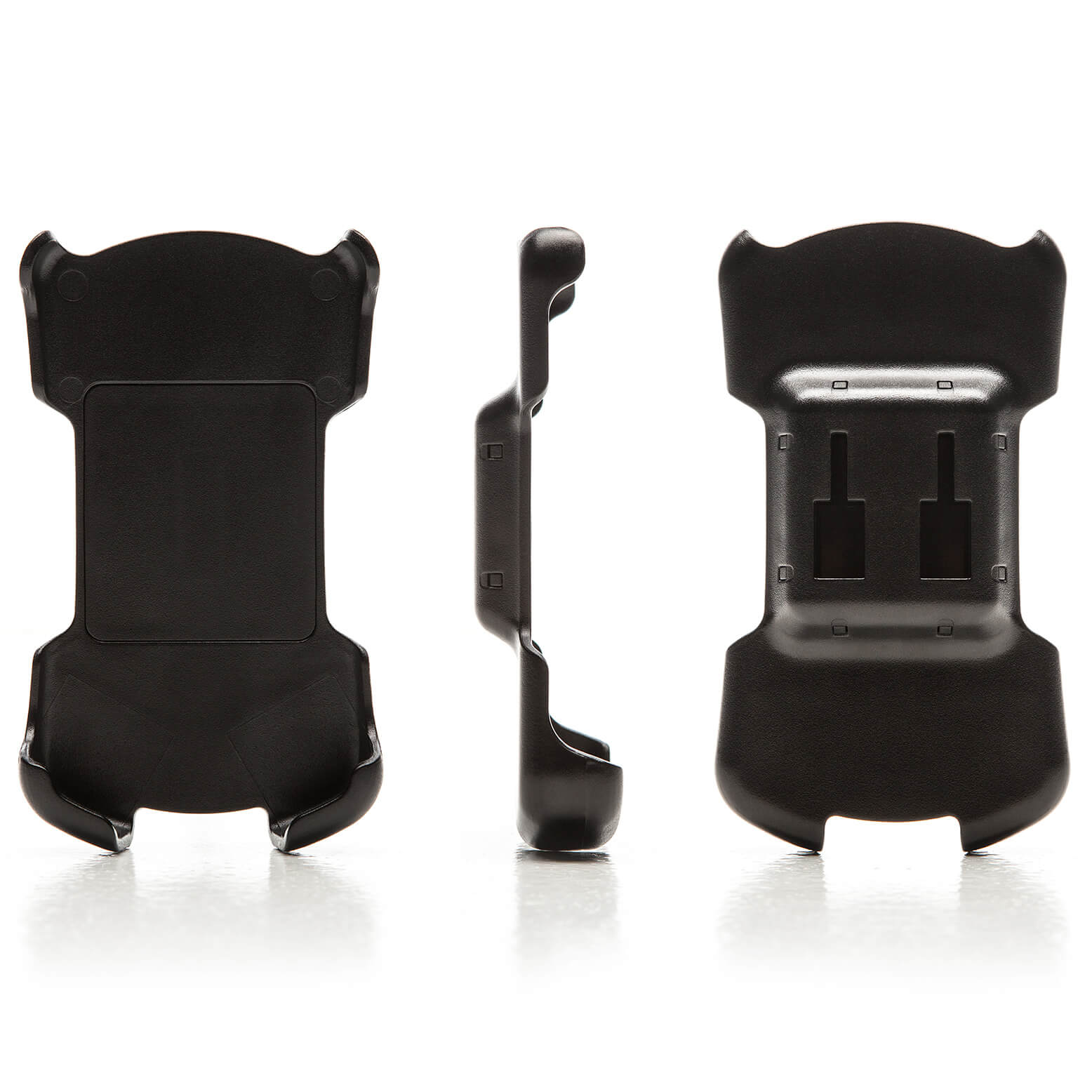

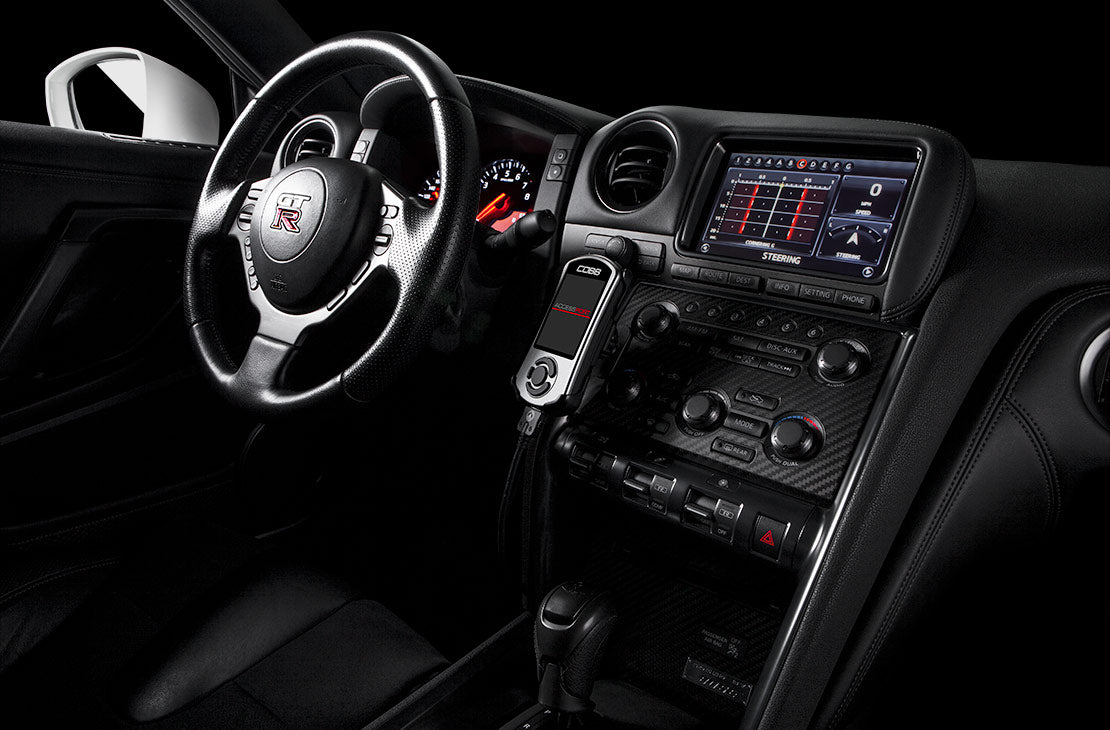

• In-vehicle mount with integrated on/off switch
• Improved processing speed and faster ECU flashing

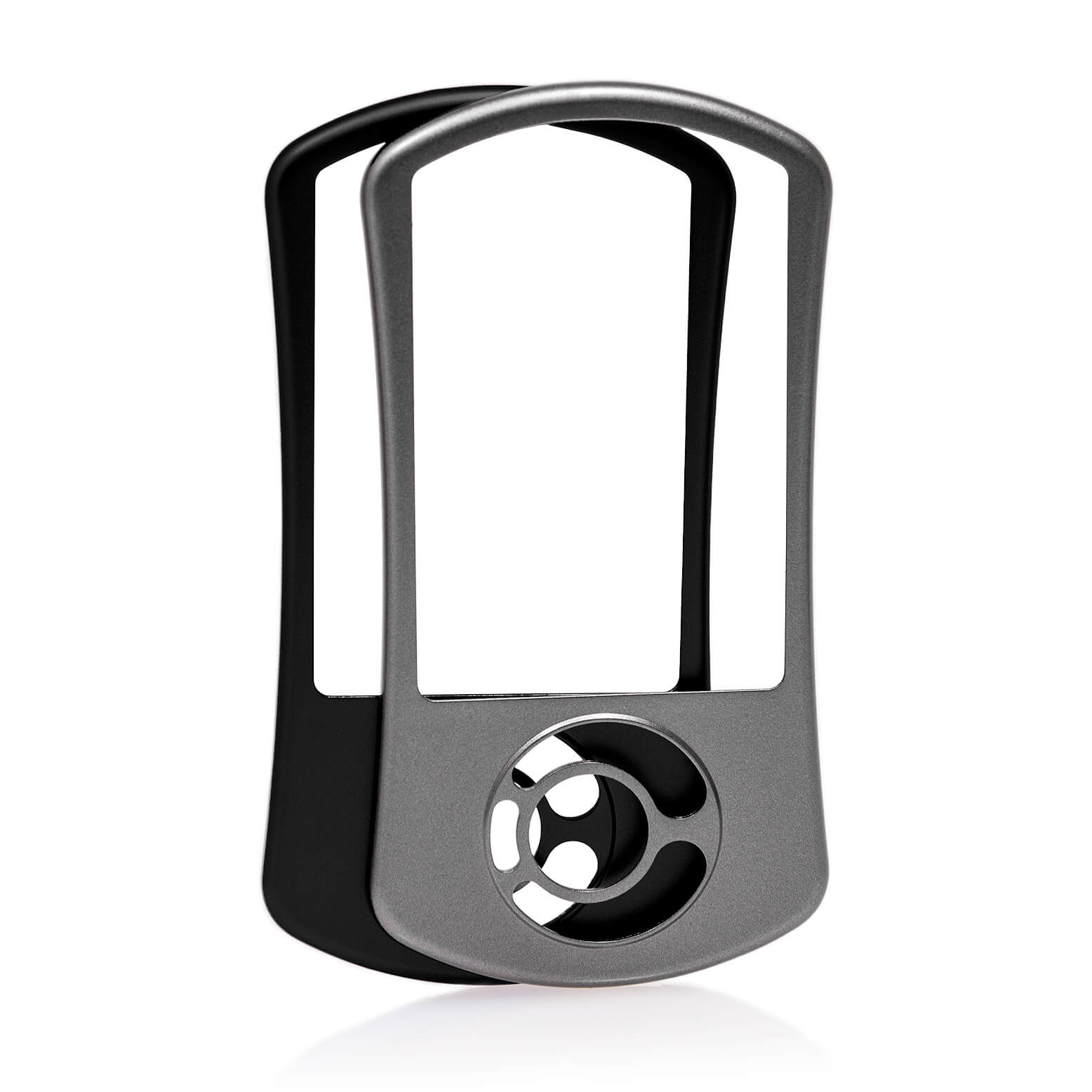

• Interchangeable faceplates
• Pre-loaded OTS maps with support for custom tuning

Nissan Specific Features:

• COBB Adjustable Traction Control: Adjust target traction slip in real time (slots 1–8) to optimize grip for varying conditions. Feature must be enabled in ECU calibration.
• COBB Adjustable Launch Control: Adjustable factory launch control RPM to optimize tire-to-surface contact.
• COBB Boost Gauge Wrap Around: Displays boost levels beyond the OEM Multi-Function Display limit of 20 PSI (~150 kPa).
• COBB Boost Off The Line: Builds boost beyond factory launch logic to optimize standing starts. Feature must be enabled in ECU calibration.
• COBB Knock Indicator: Displays knock events on the factory Multi-Function display in real time.
• COBB On The Fly Map Switching: Enables map changes while driving.
• COBB Realtime Tuning: Allows live calibration changes while the engine is running.
• COBB Rolling Boost: Builds boost for roll racing via cruise control “Set Coast” input. Feature must be enabled in ECU calibration.

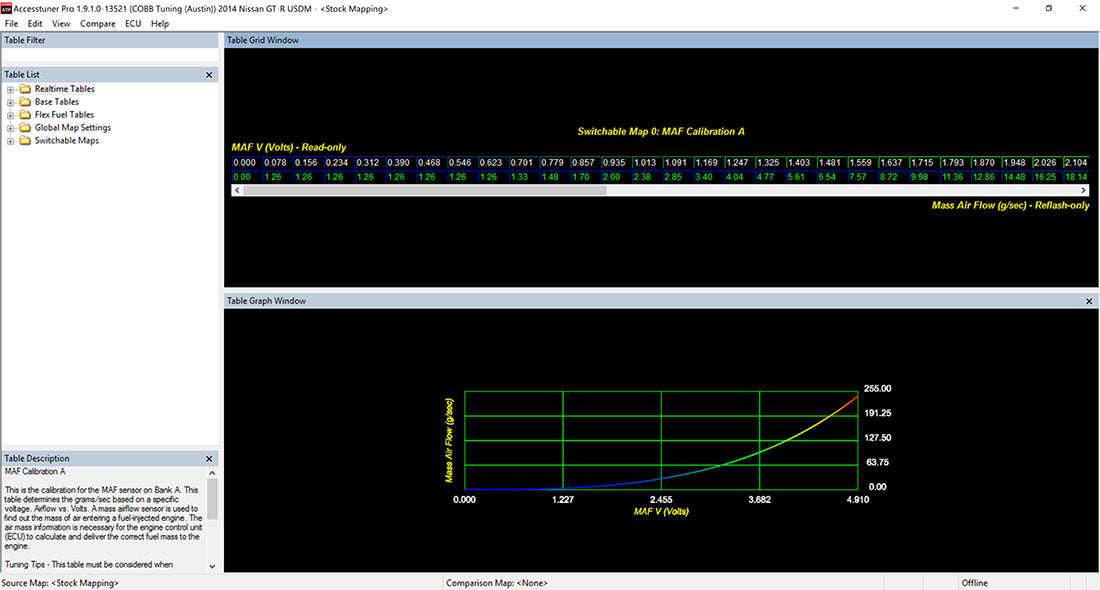

• COBB Speed Density Tuning: Utilizes MAP sensor-based tuning instead of MAF for high-output configurations exceeding stock MAF capacity.
• COBB Fast ECU Flashing: Reduces ECU map flashing time to approximately 40 seconds or less.

TCM Features:

• TCM Flashing: Reflash the Transmission Control Module to enhance launch control strategies, perform factory gear learning, and adjust clutch capacity and touch points.
• TCM Adjustments: Execute clutch gear learning procedures and adjust clutch touch points and torque capacity limits.
• TCM Logging: Log transmission data monitors for diagnostics and performance optimization. Transmission and engine parameters can be logged simultaneously.
• TPMS Learning: Reprogram TPMS sensors for new wheel and tire setups (requires compatible TPMS tool).
• Bank Air Learn: Relearn and rebalance airflow between left and right intake manifolds.

Important Notice:

• Installation over non-OEM or non-COBB software may result in ECU/TCU failure

Applications

• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD JDM 2008-2013
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD ADM 2009-2013
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD EDM 2009-2013
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD USDM 2009-2014
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD East Asia 2009-2013
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD Gulf Spec 2009-2013
• Nissan GT-R (R35) 3.8 V6 Twin-Turbo DCT AWD South Africa 2009-2013
• Nissan GT-R Vspec (R35) 3.8 V6 Twin-Turbo DCT AWD JDM 2009-2010
• Nissan GT-R Vspec (R35) 3.8 V6 Twin-Turbo DCT AWD EDM 2010
• Nissan GT-R Vspec (R35) 3.8 V6 Twin-Turbo DCT AWD Gulf Spec 2010
• Nissan GT-R Vspec Race (R35) 3.8 V6 Twin-Turbo DCT AWD JDM 2009-2010
• Nissan GT-R Vspec Race (R35) 3.8 V6 Twin-Turbo DCT AWD EDM 2009
• Nissan GT-R NISMO (R35) 3.8 V6 Twin-Turbo DCT AWD JDM 2011-2013
