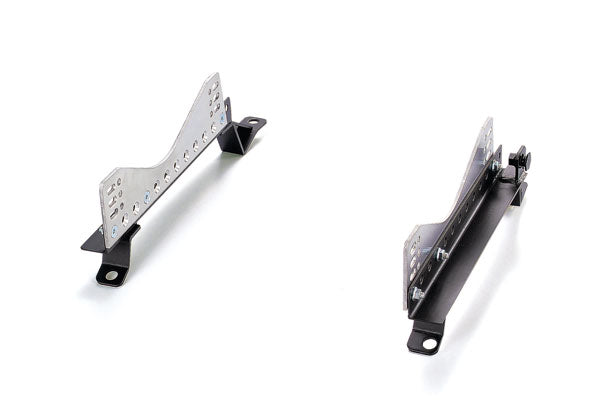

BRIDE H114FX Seat Rail FX (Left) for HONDA NSX (NA1 / NA2)

BRIDE H114FX Seat Rail FX (Left) for HONDA NSX (NA1 / NA2)

BRIDE's super seat rails are developed using precise measurements taken directly from each individual car. Each frame is measured by hand to ensure high strength and accuracy, and a master rail is created before tools for mass production are developed. This approach allows for detailed design of each part, such as bolt hole size, reducing excess gaps and improving the fit between the frame, seat rail, and seat.

BRIDE offers 9 models for reclining seats and 10 models for full bucket seats, accommodating more than 800 car models for various applications and achieving optimal seat positioning. Rails can be designed using computers, but BRIDE prioritizes hand measurements for greater precision and fit.

The sliders used in the BRIDE super seat rail are supplied exclusively by Faurecia, a leading mechanical parts manufacturer from France. These sliders feature upper rails 2.0mm thick and lower rails 2.3mm thick, lock on both sides, and provide excellent strength and durability. The slide pitch is 10 mm, with a total slide amount of 220 mm.

The super seat rail is ASEA-approved, meeting the standards set by ASEA, an industry organization representing Japan's motorsports and tuning parts manufacturers.

• Super Low position. Maximum - 30mm. Depending on vehicle
• Made in Japan
• Seat mounting dimensions / length 290mm (+5/-5) x breadth 395mm
• Aluminum parts side stay
• FIA Approved
• Fixed type seat rail for competition
• The seating position is the same as the FO type , FG type

Fit seat

• BRIDE: Fixed bucket seat series, edirb 031 / 042 / 061 / 067, excluding the ZETA III type-XL, ZODIA
• RECARO: SP-G
• SPARCO: PRO DRIVE
• Other: AAR Racing, COBRA, Seat within the mounting dimensions

Vihcle information

• HONDA/ACURA NSX (NA1) 1990-
• HONDA/ACURA NSX (NA2) 1990-
