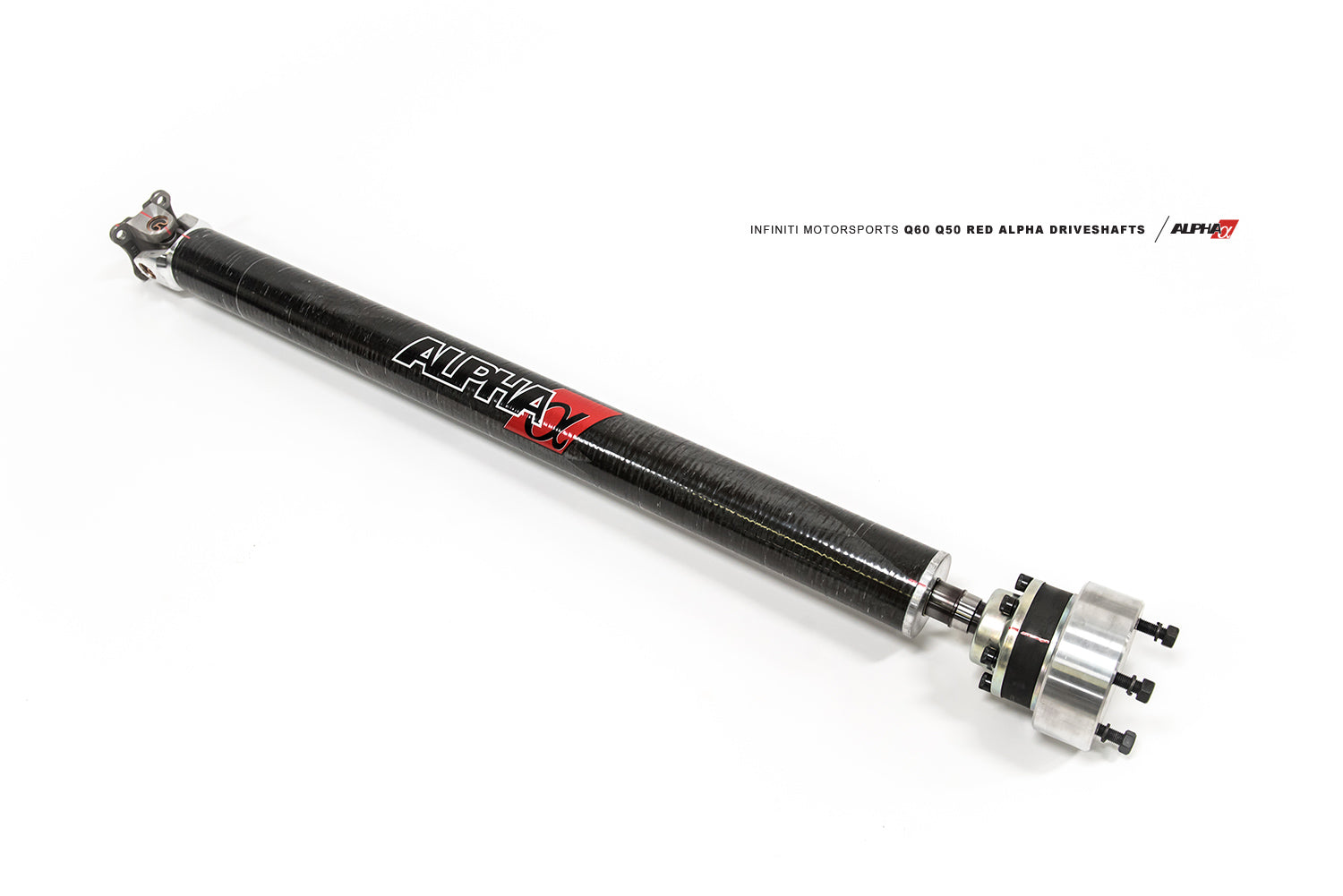

AMS ALP.28.03.0001-2 Carbon Fiber Driveshaft INFINITI AWD Q50 / Q60 (1-Piece Dampened 3.25")

The INFINITI Q60 Red Alpha one piece carbon driveshaft version is manufactured using a new carbon fiber weave that was tested to 6800 lbs of torque! The main difference between the carbon and aluminum driveshaft is that the 3.25″ diameter carbon fiber tube is more torsional than aluminum, therefore it can twist more under load resulting in a smoother transfer of power at launch or between shifts. Aluminum is already much more torsional than steel, (about 15° under load vs about 5° for steel) but carbon fiber can go upwards of 30° to 35°. Carbon fiber is also typically quieter and there is typically a 2-3lb difference in weight which will help acceleration as well. It will be a significant upgrade over the stock 2-piece driveshaft. The one piece drive shafts will make more noise than their stock two piece counterparts.

Benefits

• Superior One Piece Design
• Aluminum Shaft Manufactured from 3.5″ x .125″ thick wall 6061-T6 Aluminum
• Rated to 3464 ft lbs of Torque
• High Speed Balanced and Rated for over 9000 RPM
• Pulse Welded Means Less Heat for a Stronger Shaft
• Purpose Built German High Speed CV
• High Strength Spline is 6800 ft lb tq Capable
• Solid U-joints from Dana/Spicer and without Grease Fittings
• Aluminum Shaft Rated to + 800 HP

Product Notes

• Stock – 26.85 LBS (AWD)
• Aluminum – 23.05 LBS (AWD)
• Carbon Fiber – 21.55 LBS (AWD)
