AMS ALP.07.08.0101-6 Billet Intake Manifold with Secondary Fuel Rail 12 Injector Clear Anodized for NISSAN GT-R (R35)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AMS ALP.07.08.0101-6 Billet Intake Manifold with Secondary Fuel Rail 12 Injector Clear Anodized for NISSAN GT-R (R35)
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description AMS ALP.07.08.0101-6 Billet Intake Manifold with Secondary Fuel Rail 12 Injector Clear Anodized for NISSAN GT-R (R35)
The Alpha Performance R35 GT-R Cast Aluminum Intake Manifold Plenums are designed to be the most efficient and power-producing cast intake manifold available. Every detail has been considered to create this high-performance induction component. The Alpha GT-R Cast Aluminum Intake Manifold Plenums provide global performance, delivering more horsepower and torque throughout the entire power band compared to other leading cast aluminum GTR intake manifolds.
Based on championship-winning carbon fiber intake plenum designs, the cast aluminum plenums are molded and tapered to channel charged air effectively, reducing turbulence and accelerating air delivery to the engine. Each manifold is carefully matched to its upper and lower running sections to maintain optimal airflow from the throttle body to the cylinder heads. Dowel locating pins are used to ensure perfect alignment and eliminate steps or protrusions that could cause turbulence.
The manifold has been rigorously tested for strength and reliability, including cycle testing from 0–50psi in high heat and a burst test at over 150psi. Provisions are available for an additional Alpha fuel rail to support extremely high-powered GT-Rs. Optional Alpha billet big bore throttle bodies are available for applications exceeding 800HP. Anodized color finishes are offered to complement the appearance of the engine bay.
Product Notes: AMS Performance R35 GT-R Big Bore Billet Throttle Bodies available separately.
Product Notes: Custom PCV routing would be needed if the owner wishes to retain its functionality.
Product Notes: Alpha upper intercooler pipe adapter for current Alpha intercooler piping or full Alpha Induction Kit is required.
Product Notes: While other fuel rail kits may work (stock rails are not compatible), AMS can only guarantee AMS/ALPHA Fuel rails to be compatible with this Intake Manifold.
Product Notes: Custom color anodizing can add 2-4 weeks to build time.
Product Notes: 14035-JF00A OEM Nissan Gasket – R35 GT-R Lower Intake Manifold to Cylinder Head (Need qty. 2).
Product Notes: 16175-ET80A OEM Nissan Gasket – R35 GT-R Throttle Body to Manifold Adapter (Need qty. 2).
- Over 25% lighter than the leading cast intake manifold
- Dowel pin aligned for smooth, continuous flow between upper and lower runners
- Dual MAP sensor ports allow for monitoring bank to bank differences in boost pressure
- Retains PCV and functions exactly like stock
Kit comes with:
- Cast Aluminum Plenums

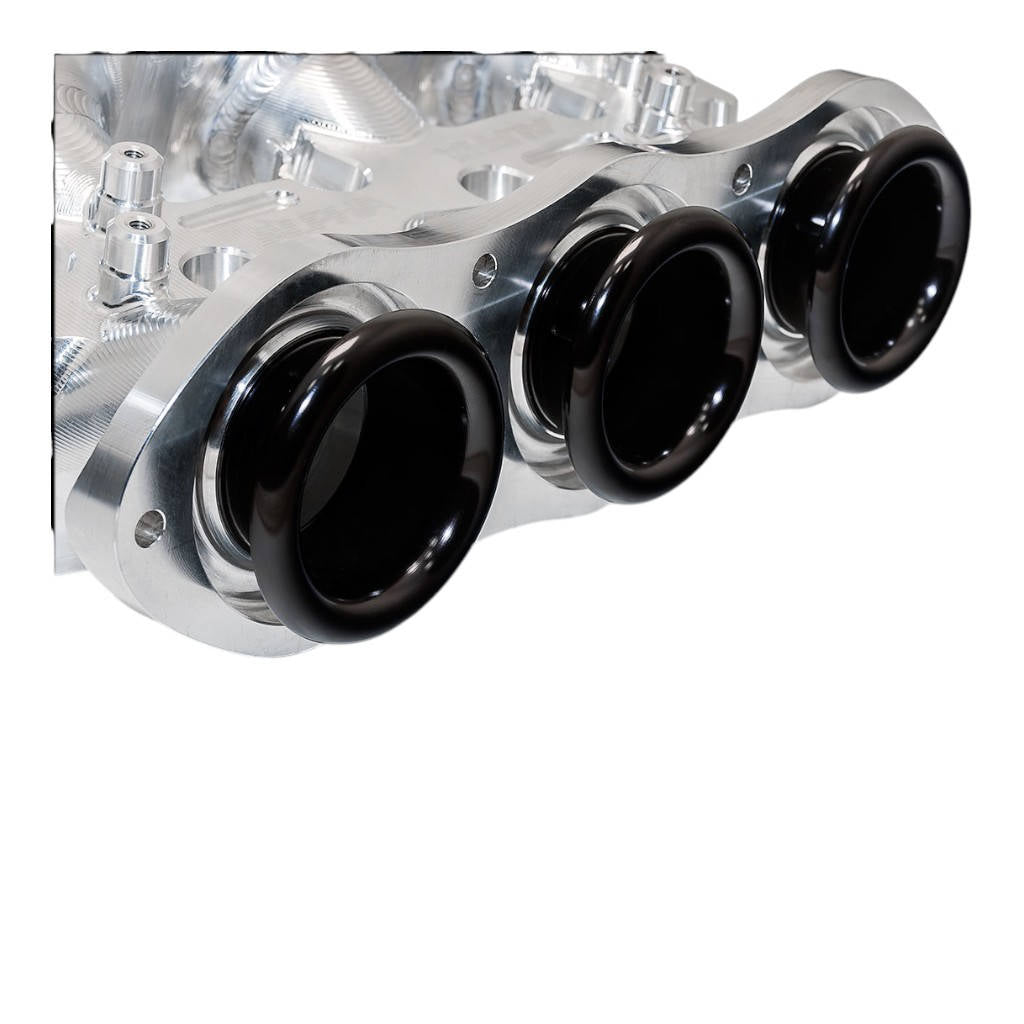

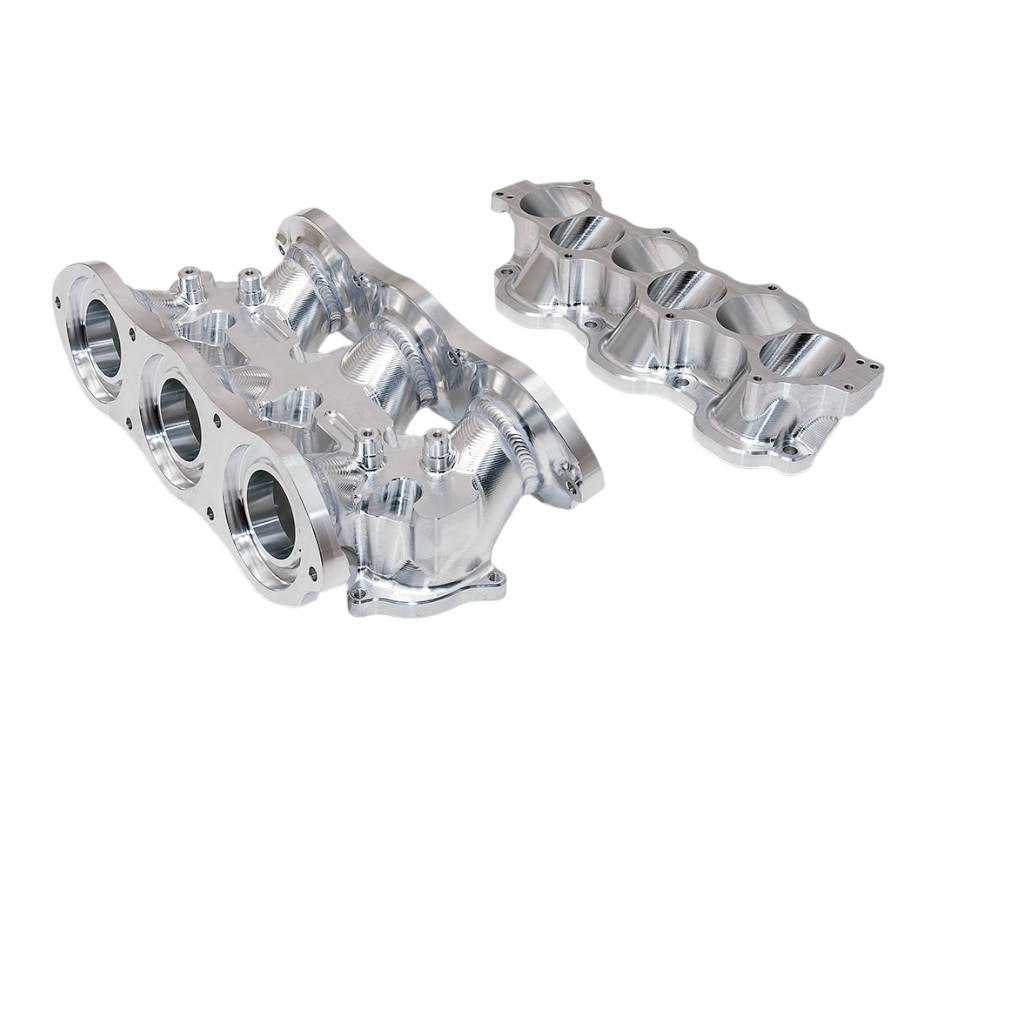

- Billet Upper Intake Runner
- Billet Lower Intake Runner

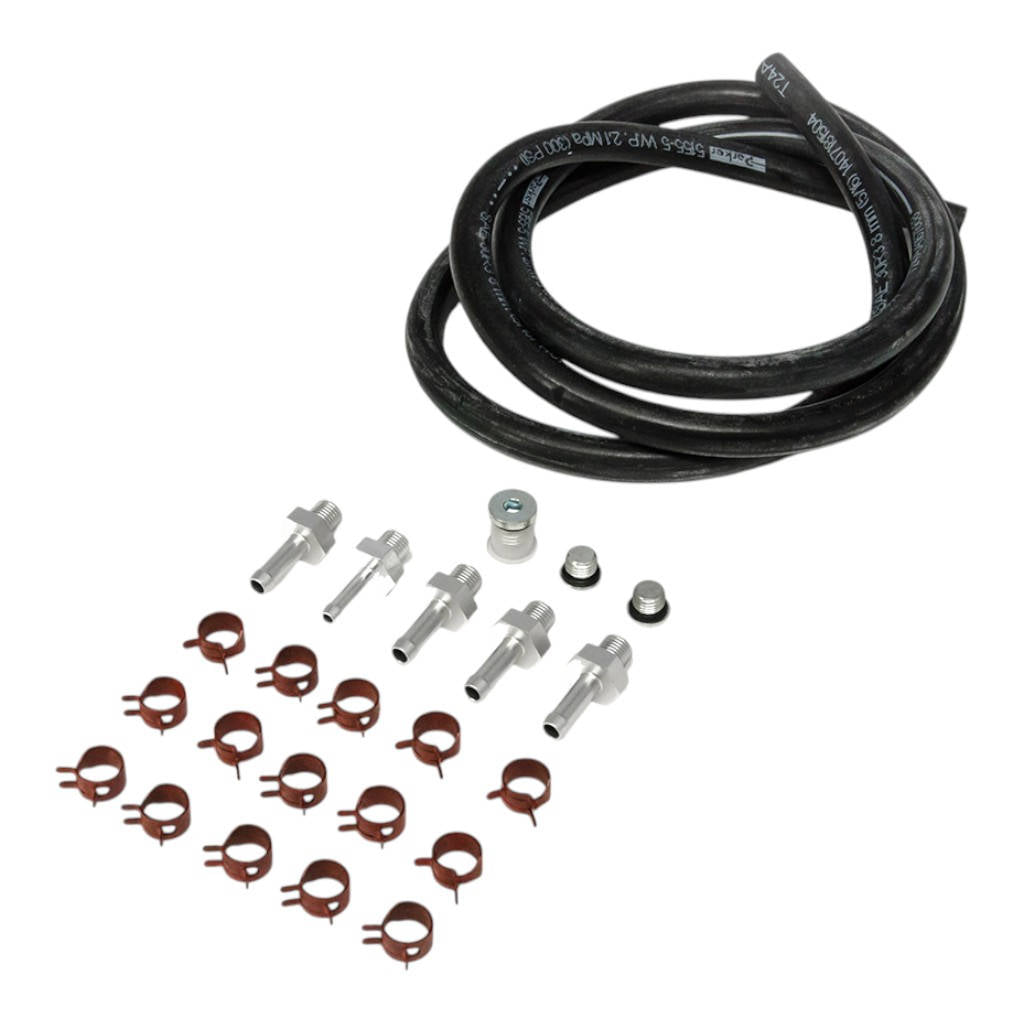

- Vacuum and Boost Fitting Kit

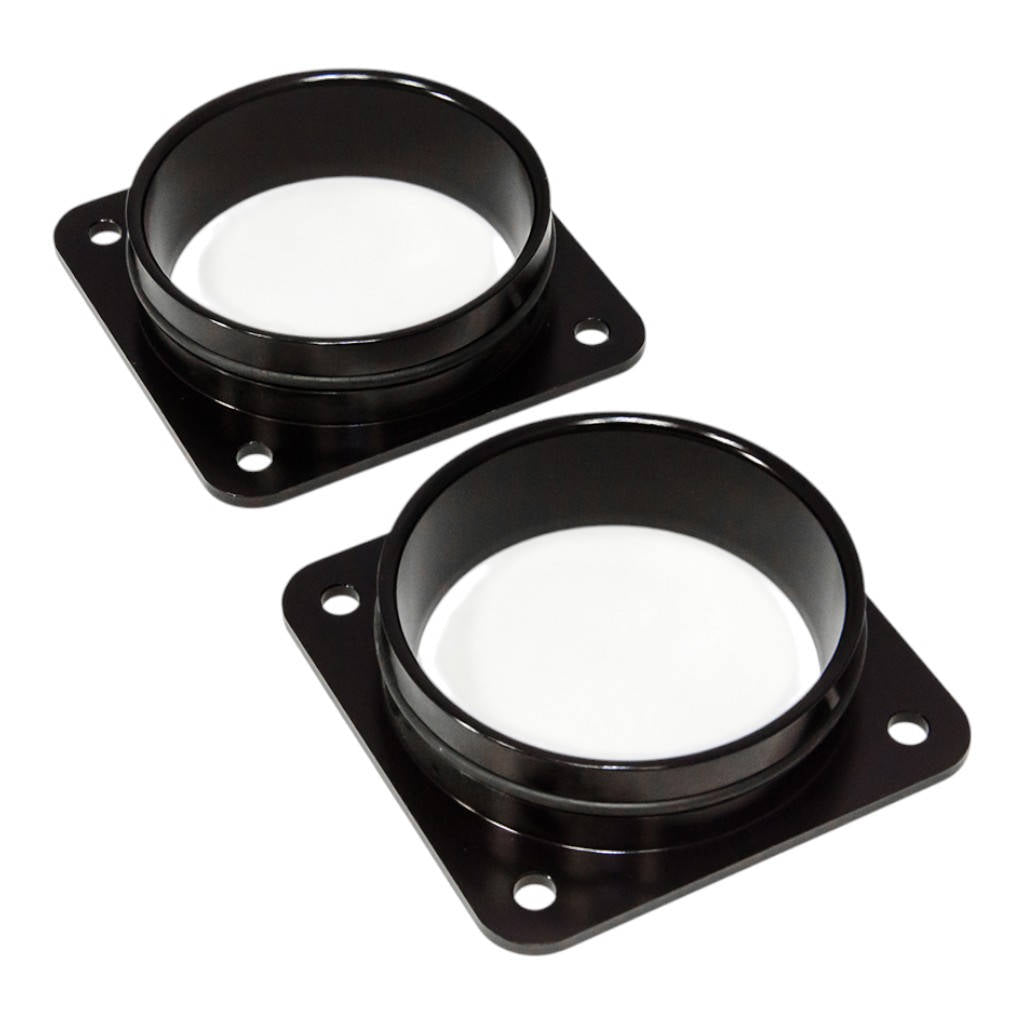

- Adapters for Stock Throttle Bodies
Vehicle Compatibility:
- 2009+ Nissan R35 GT-R (USDM, JDM, Gulf Spec, and European Models, LHD & RHD)
