AIM XC1PDM32D10G050C2 PDM32 D 10" Icons GPS 50

₴158,760.00

Shipping calculated at checkout

P/N: XC1PDM32D10G050C2
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

AIM XC1PDM32D10G050C2 PDM32 D 10" Icons GPS 50

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

PDM 32  offer also some interesting features, like:
  • ECU connection, for getting data from your ECU
  • Datalogging, for avoiding adding another logger to your car
  • GPS Module, for having automatic lap times and track positions
  • Dash controller, for easily managing a 10” dash
  • 9 axis EMU platform
  • Mirror camera, for easily getting a back view while you drive your car in reverse in the paddock

The PDM Kit includes:
  • New INTEGRATED Power Distribution Module+ 4 gigabytes Datalogger + Dash controller

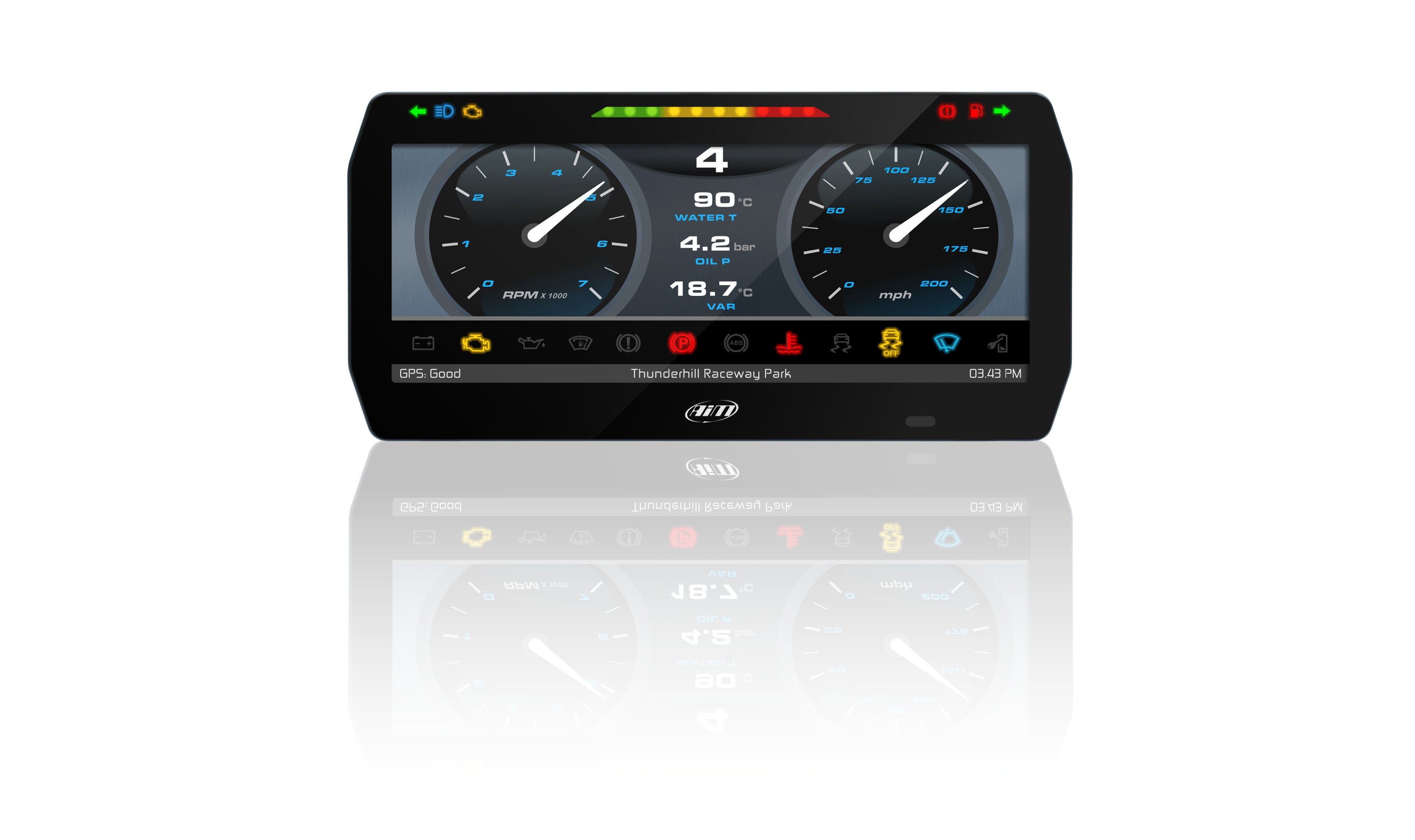

  • Dash 10” Technical sheet can be downloaded here

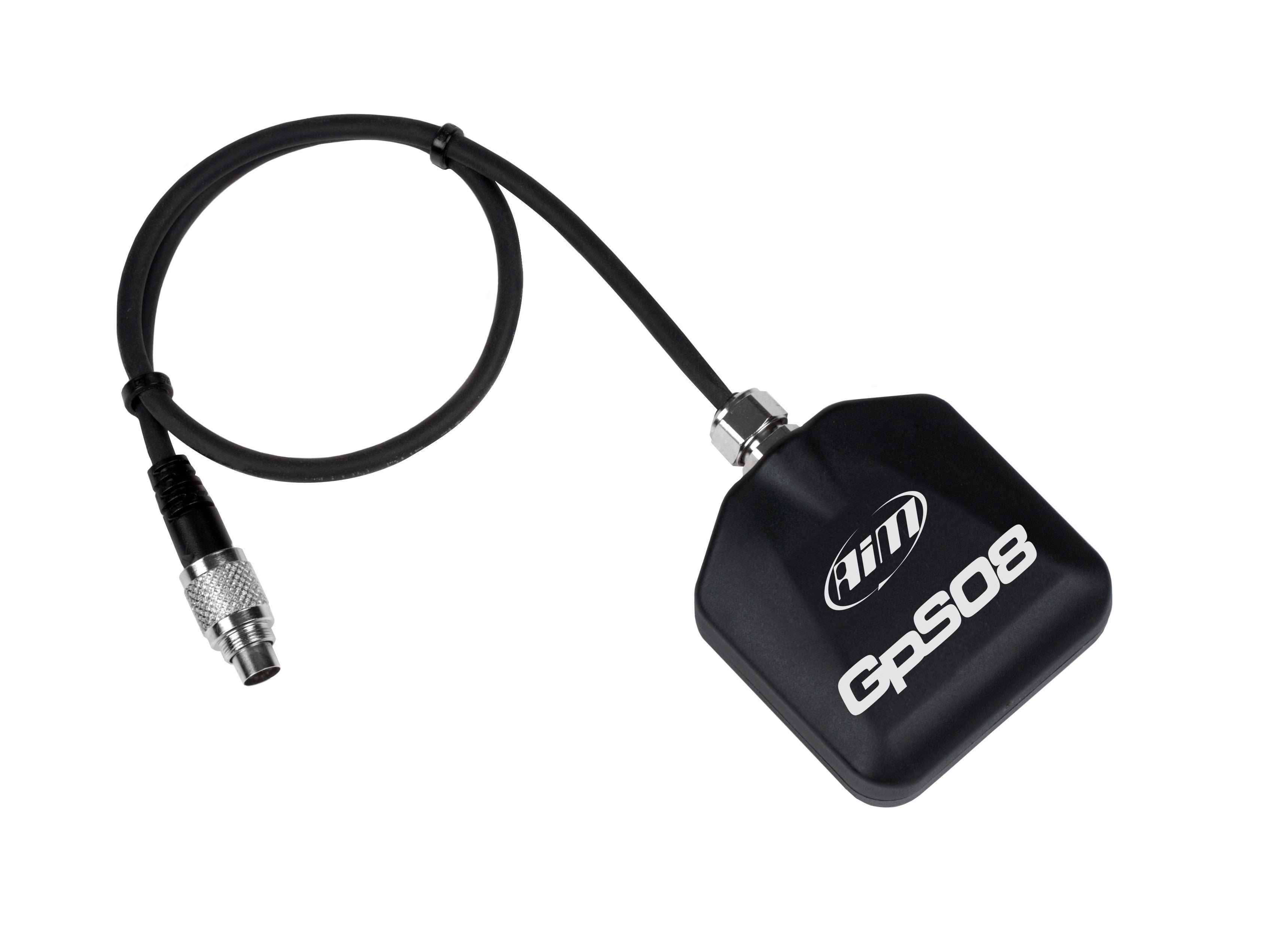

  • GPS Module for automatic Lap Time and track position. Pinout 1.00 can be downloaded here

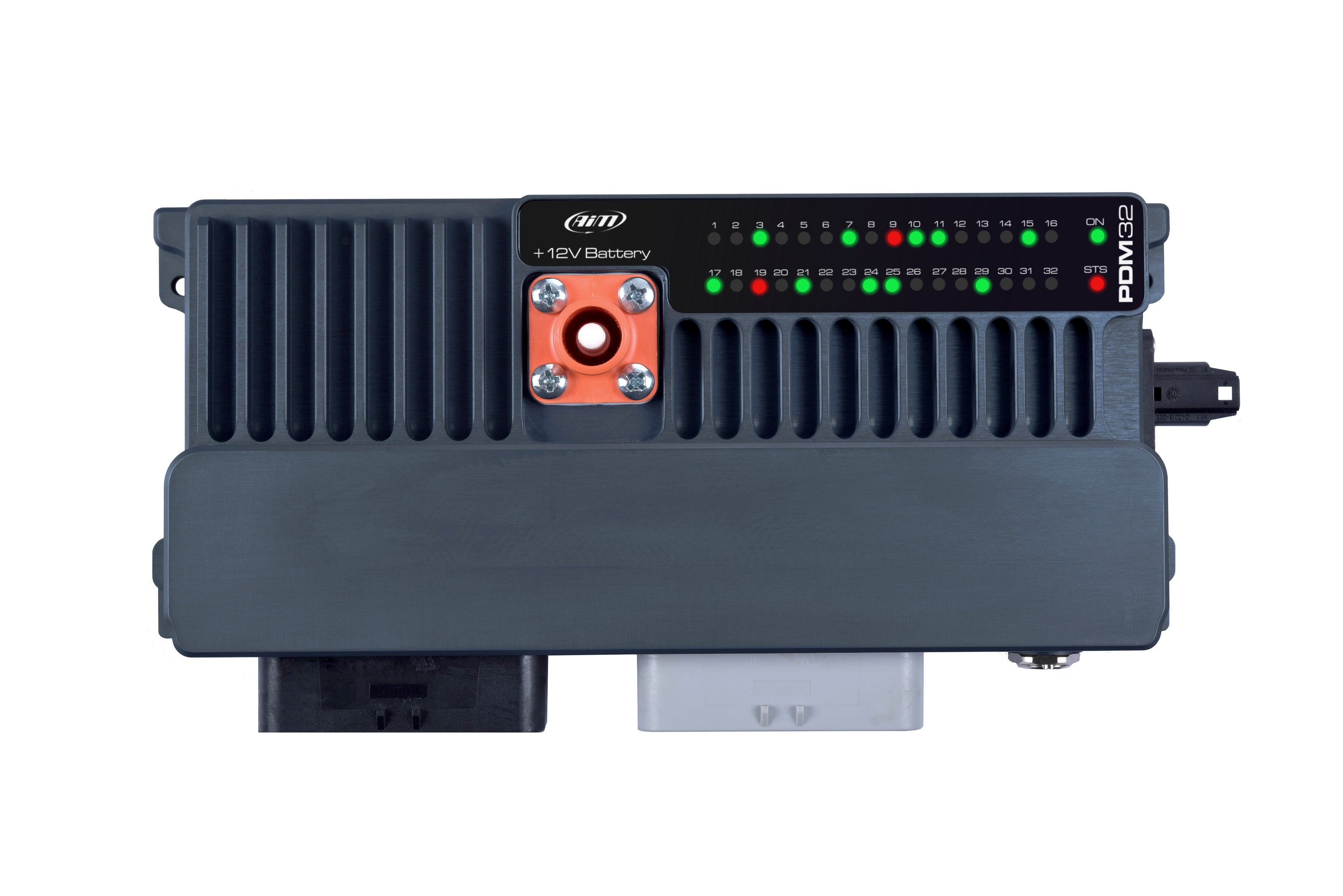

  • PDM32 with 28 High Side Outputs and 4 Half Bridge Outputs. Technical sheet can be downloaded here
  • PDM32 User guide can be downloaded here
  • PDM08/32 Part numbers can be downloaded here
The PDMs offer four different Power Outputs Levels:

Power Outputs PDM32

  • 4 rated up to 20 A (high power)
  • 12 rated up to 15 A (mid power)
  • 12 rated up to 10 A (low power)
  • 4 rated up to 35 A (Half Bridge)
  • Protected for: over voltage, under voltage, over current, over temperature
  • Total max current: 120 A
Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage. Inrush current, number of fault retries and the time between retries are all definable.All the outputs may be configurable as PWM and allow soft start/stop.For every output, a multicolor LED shows the status:

  • Enabled/disabled
  • Activated or not
  • Fault

Inputs:

PDM32 feature the following Inputs channels:

  • Analog/Digital - 8
  • Only digital - 4
  • Speed - 2
