AIM XA6MXPA20R1 MXP + 2 m GPS Module Roof version + 37 pins standard harness
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
AIM XA6MXPA20R1 MXP + 2 m GPS Module Roof version + 37 pins standard harness
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine

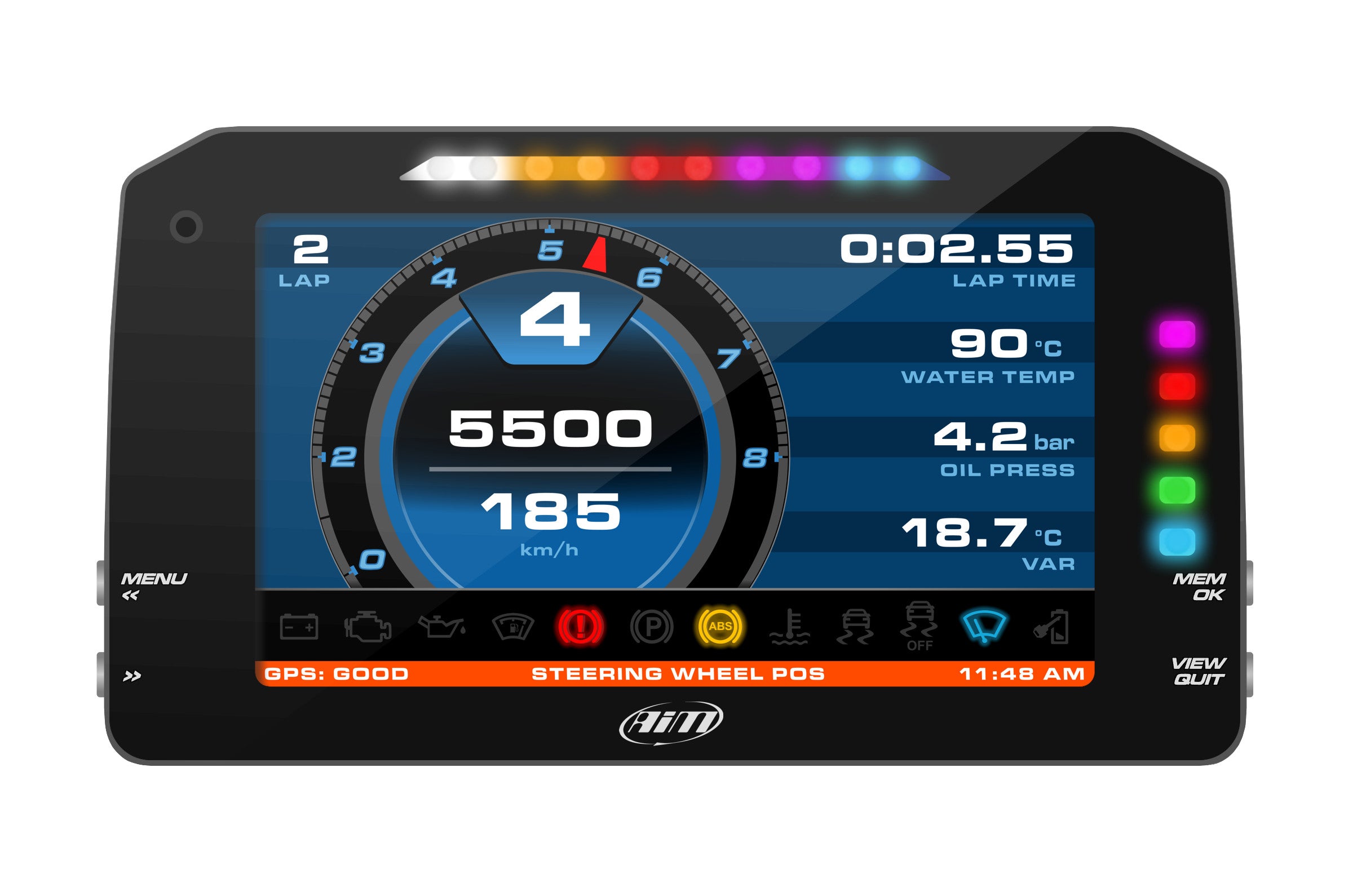

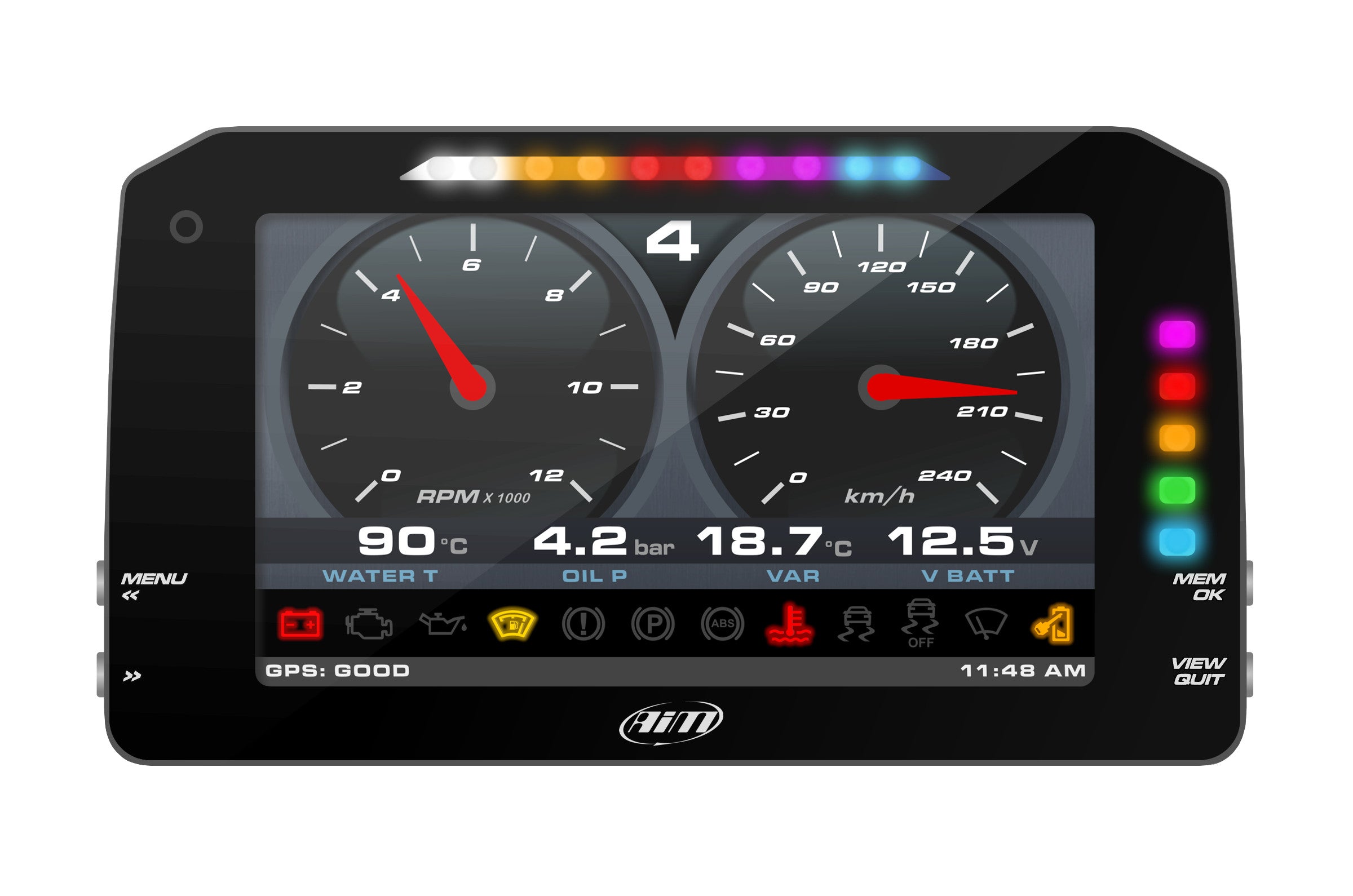

MXP offers 50% more display area than the 5'' MXS display, in a similar dimension. The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.
A wide range of data sources
MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.
MXP features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
- User guide can be downloaded here
- Technical sheet can be downloaded here
- Installation template (scaled 1:1) can be downloaded here
In the box: MXP, GPS Module with cable, USB cable, 37 pins standard harness, Race Studio 3 software.
