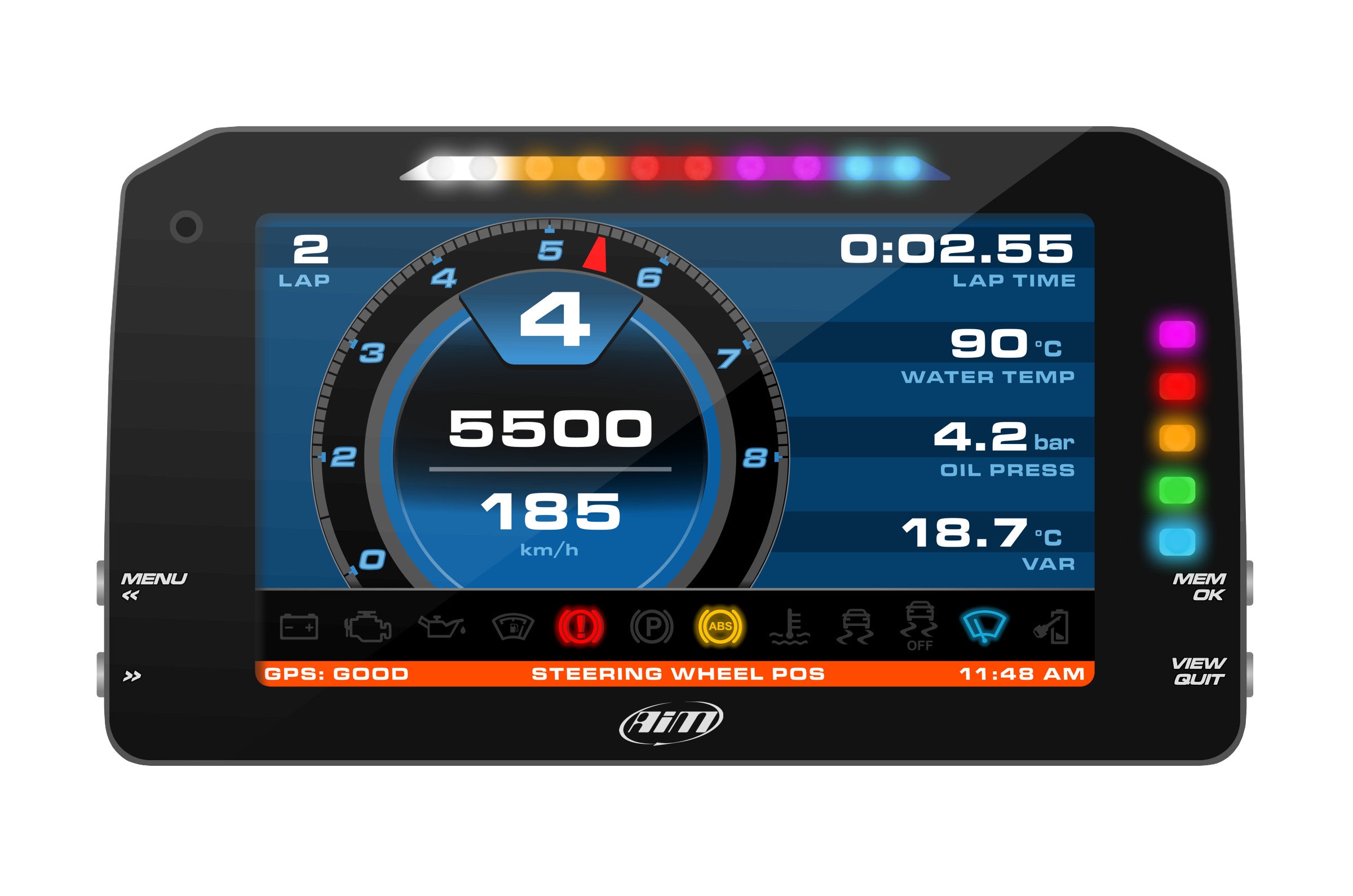

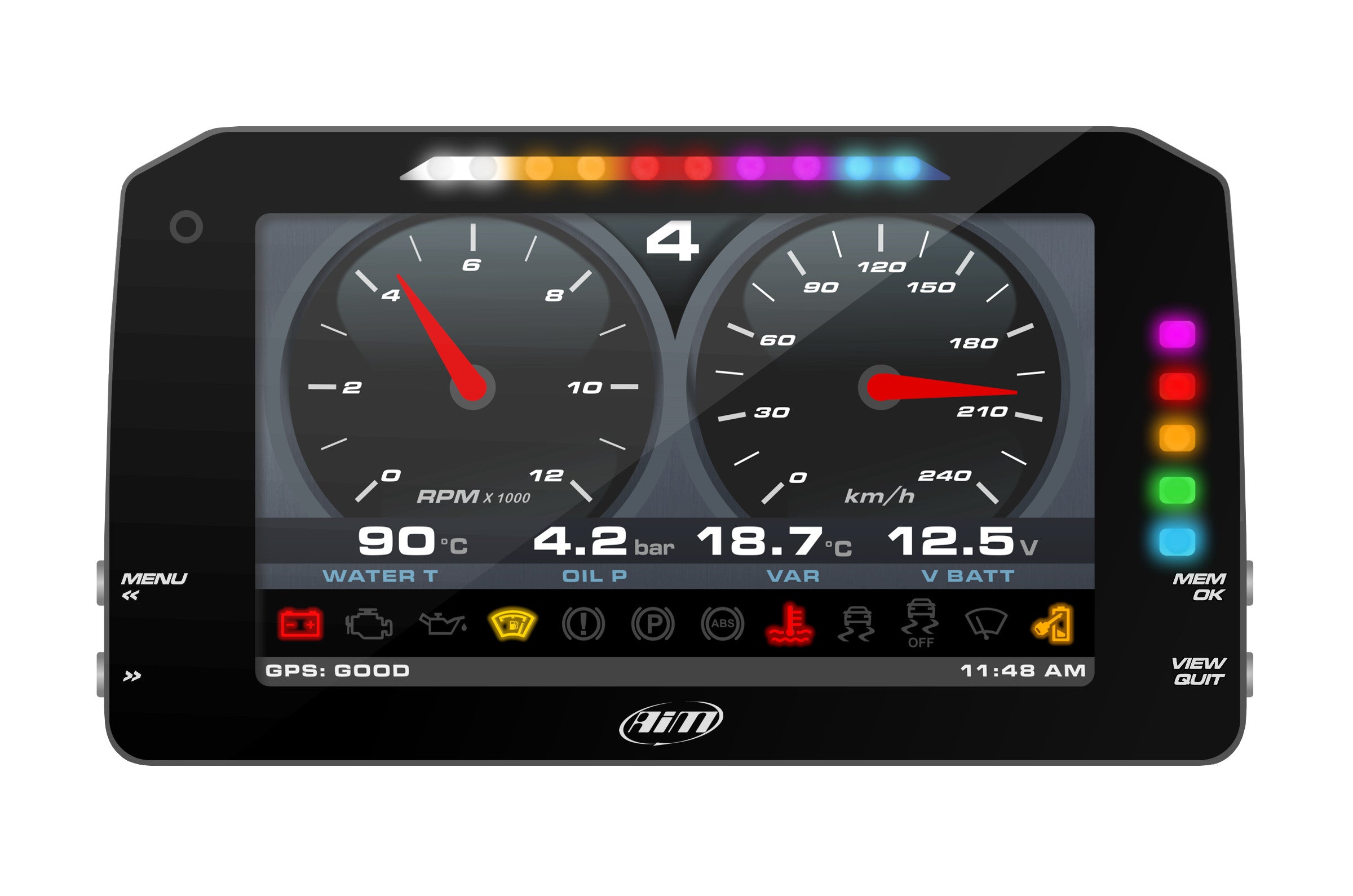

AIM XA6MXPA13G1 MXP + 1.3 m GPS Module + 37 pins standard harness

MXP offers 50% more display area than the 5'' MXS display, in a similar dimension. The dash logger has an integrated shift array, configurable multicolor alarms, drag and drop multi page configuration, Wi-Fi and USB connectivity, GPS Module, inertial platform, analog and digital inputs, digital outputs, Motorsport connectors, 4 GB of internal memory, 1,000Hz per channel sampling and support for over 1,000 ECU connections.



A wide range of data sources

MXP samples data coming from your ECU, the GPS Module, the 9 axis inertial platform (accelerometer, gyro and magnetometer), 8 fully configurable analog inputs, 6 digital inputs, predefined math channels and second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.



MXP features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.





In the box: MXP, GPS Module with cable, USB cable, 37 pins standard harness, Race Studio 3 software.
