AIM XA3MXSST12I010 MXS 1.2 Strada Icons version with CAN + RPM cable (ECU)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

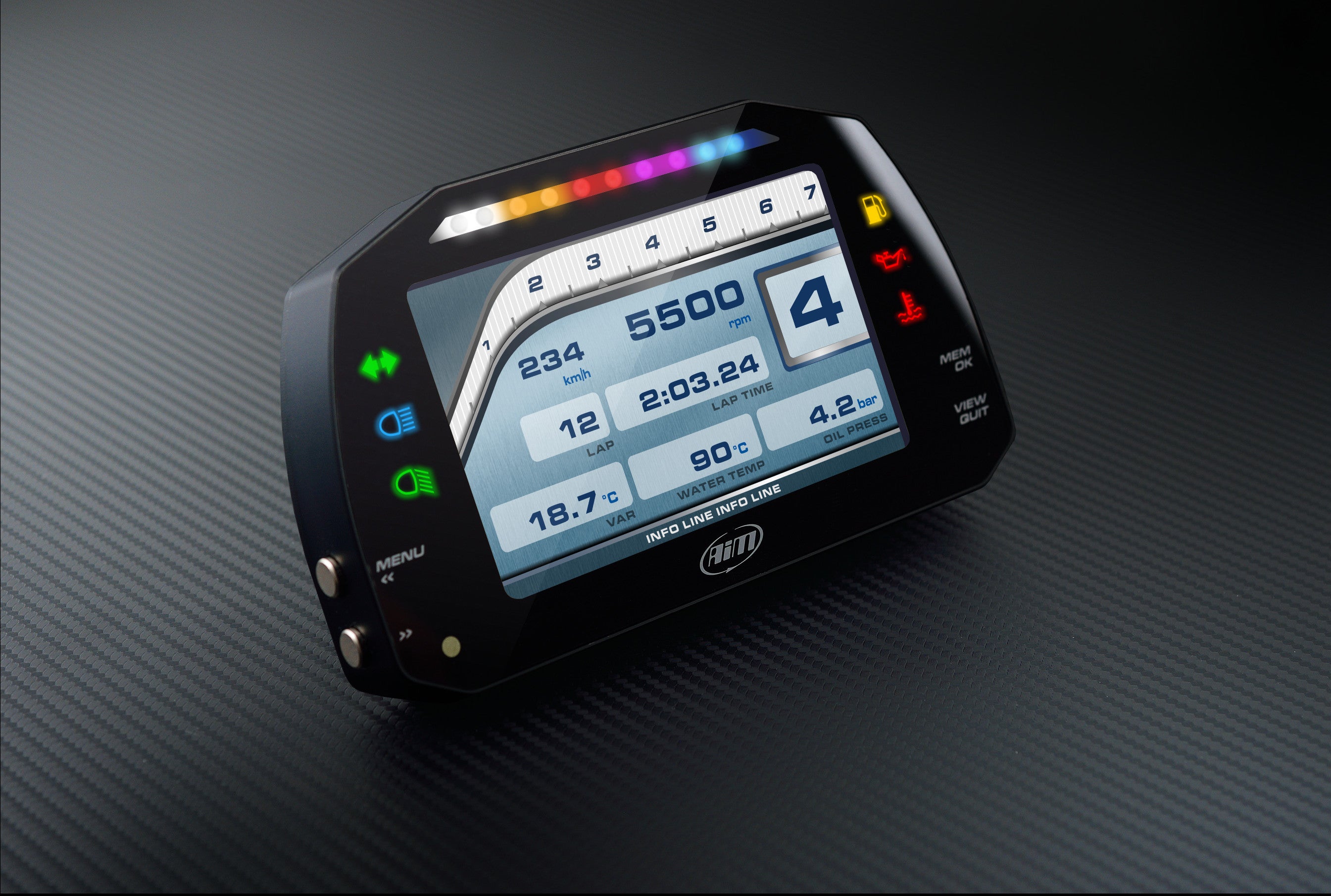

MXS 1.2 Strada, the evolution of MXS Strada, is a 5" color display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the GPS08 Module.
MXS 1.2 Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

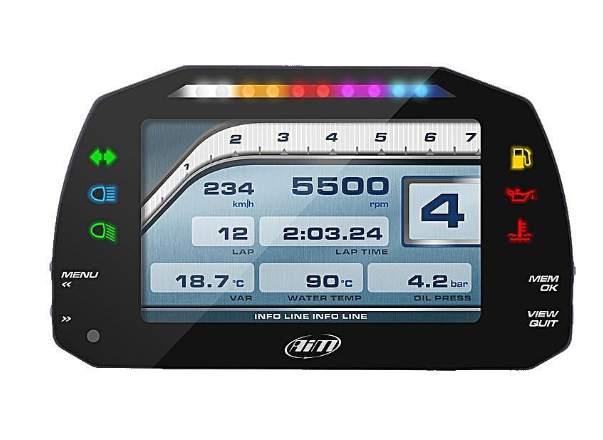

MXS 1.2 Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, laptimes and much more... You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the pushbuttons.
- User guide can be downloaded here
- Technical sheet can be downloaded here
- Installation template (scaled 1:1) can be downloaded here

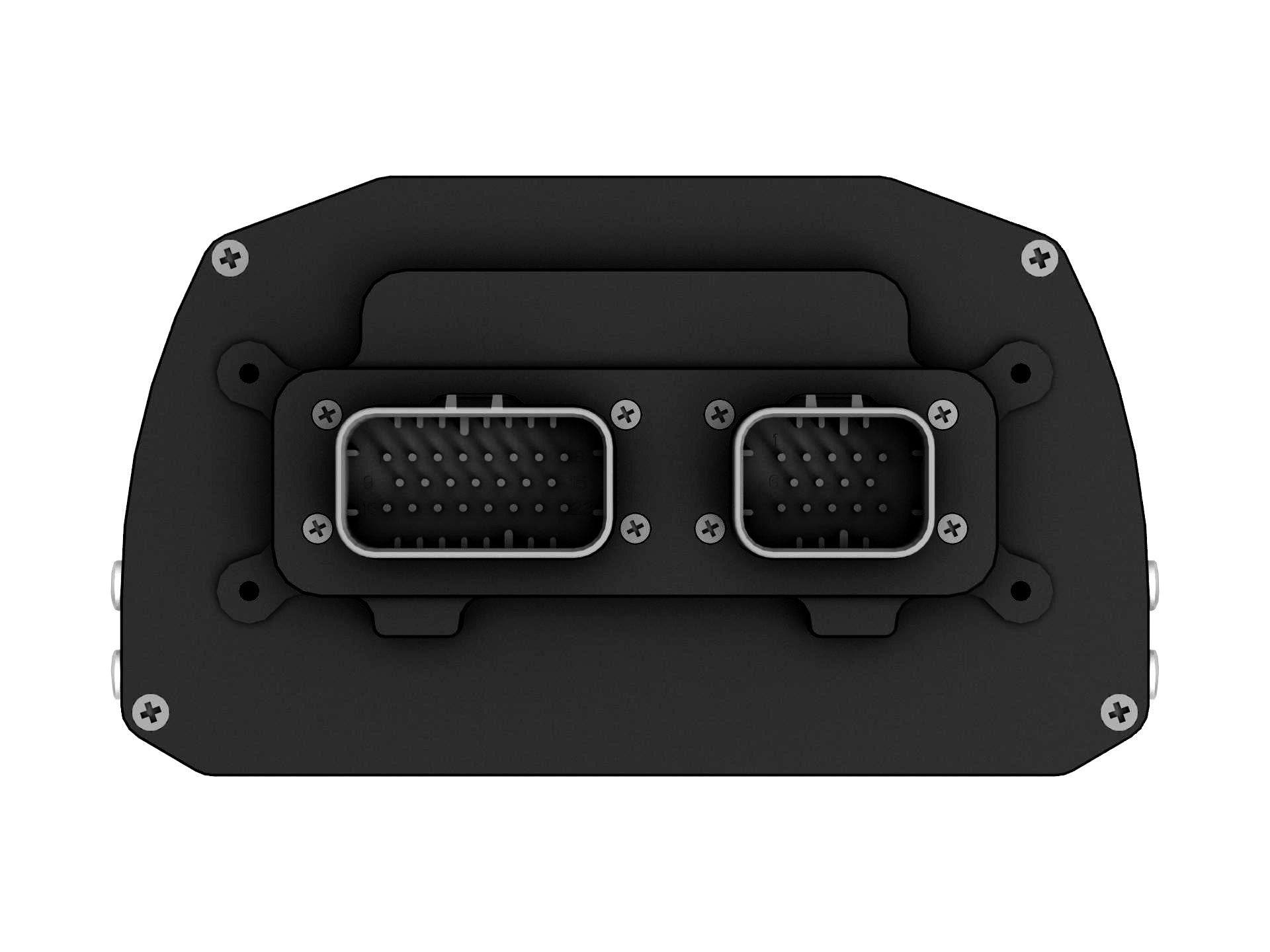

In the box: MXS 1.2 Strada, USB cable, 14 pins standard harness, 23 pin connector + contacts, Race
Studio 3 software.
