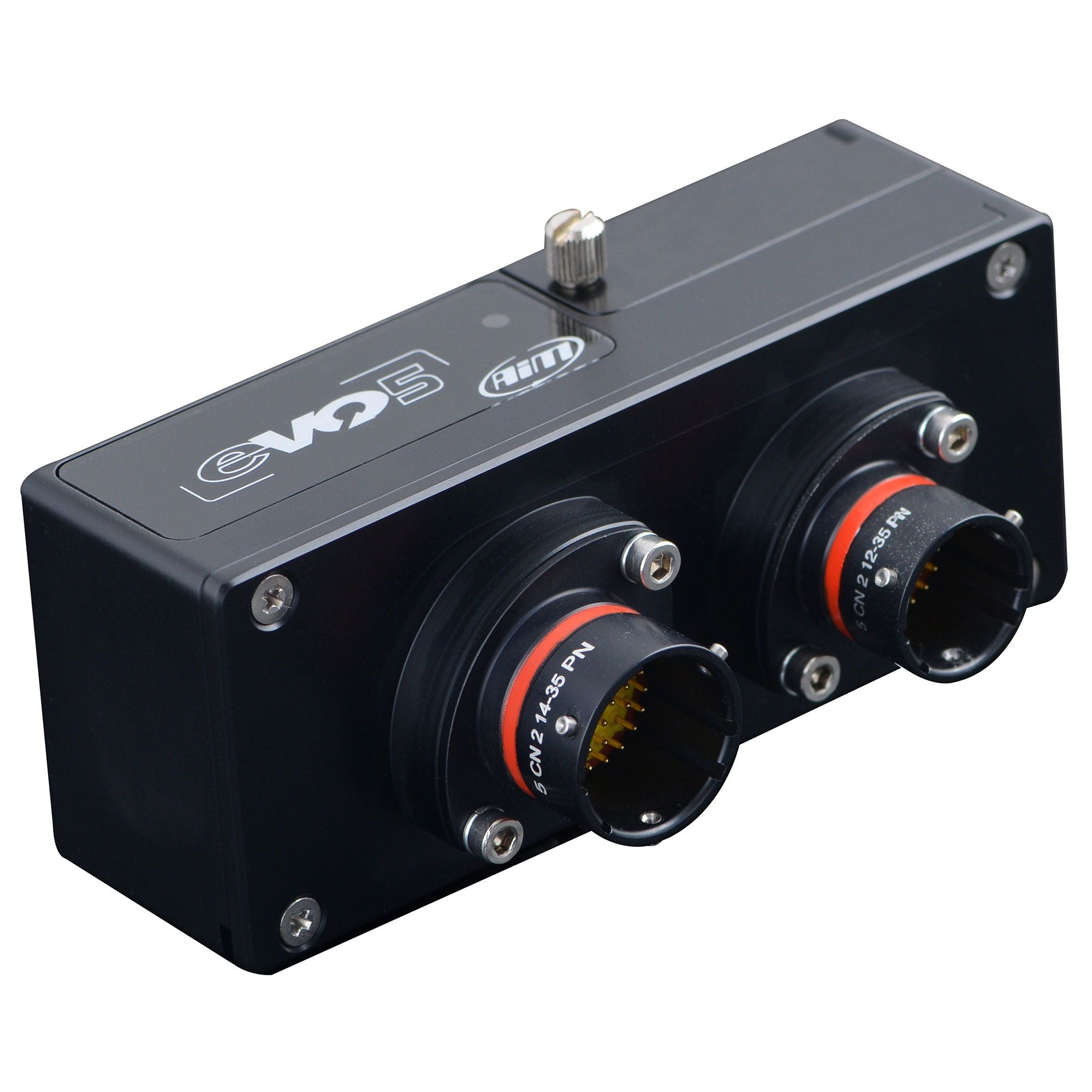

AIM X62EVO540R EVO5 with GPS08 Module Roof version 4 m lenght cable

EVO5 samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 8 configurable analog channels, to the RPM input and to 4 wheel speed inputs.



EVO5 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/ de-activate a cooling fan or circulation pumps, etc. when a certain event happens.



The internal SD card (not included in the box) permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility. No way to have a faster data downloading: you remove the SD and... it is done! Of course a USB connection is available, too.



In the box: EVO5, 37 pin harness, USB cable, GPS08 Module, mounting bracket, Race Studio 3 software CD.
