AIM X61E4S4002 EVO4S with GPS08 Module 4 m lenght cable
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

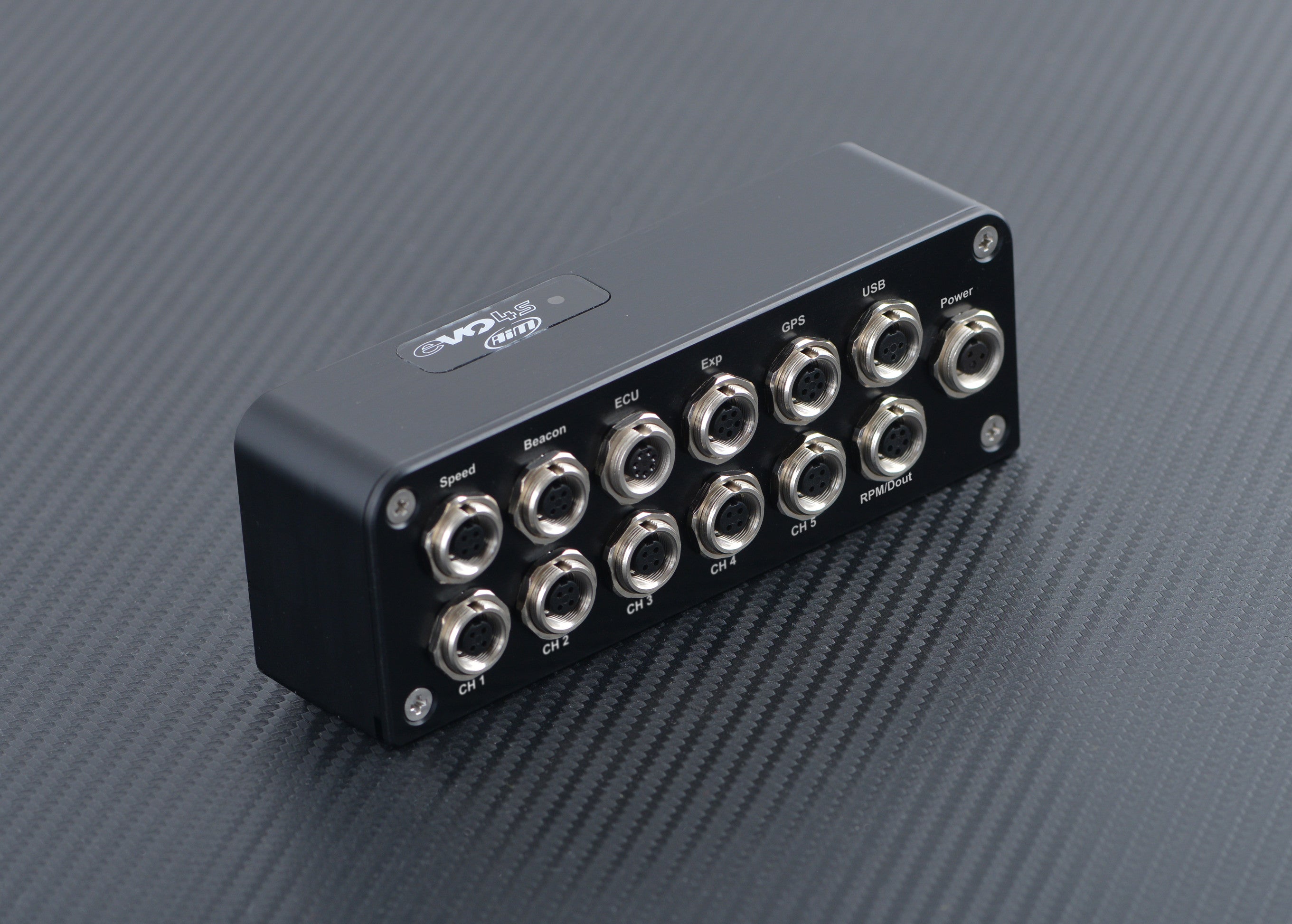

EVO4S is the evolution of the well known EVO4.
It maintains the same connection logic, one connector per channel, but with a completely redesigned internal electronic board, fully compatible with the last generation of AiM dashloggers and with the new powerful Race Studio 3 software. EVO4S samples all the information you need: data coming from your vehicle ECU via CAN, RS232 or K-line, from the internal accelerometers and gyro, from the GPS08 Module included in the kit. And from analog/digital inputs, external expansions as well as predefined math channels. Sensors can be connected to 5 configurable analog channels, to the RPM input and to 2 wheel speed inputs.
EVO4S features a LOW SIDE type (switch to ground) digital output. You can configure it in order to turn it on or off depending on the value of the analog or digital inputs, ECU values, expansion values, GPS information or math channels.
In the box: EVO4S, GPS08 Module, 1 power cable, 1 digital output + RPM cable, 1 OBD2 cable (CAN + K-Line), 1 USB cable, mounting bracket, Race Studio 3 software CD.
