AiM X05SNVK301 Sensor Front wheel speed
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
AiM X05SNVK301 Sensor Front wheel speed
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine

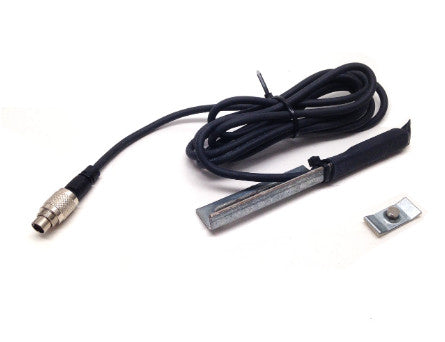

AiM devices can measure the kart front wheel speed using a non-contact sensor that needs a magnetic metallic trigger to pass in front of it. The sensor kit includes a metal plate with a magnetic cylinder and a metallic bracket the sensor is welded to.
- Datasheet can be downloaded here
Installation notes
- Install the magnetic plate on the front wheel rim;
- install the bracket on the steering arm; if the steering arm is solid make a hole in it with a 6mm drill bit;
- when mounting the bracket ensure that the sensitive part passes in front of the cylinder at a 3-5 mm distance;
- irmly fix the bracket to the steering arm to avoid sensor movements due to the strong vibrations of the kart front wheel;
- ensure the bracket does not get in contact with the metallic plate when steering;
