AiM 0-160 bar pressure sensor is suitable for brake pressure reading, being able to read pressures up to 160 bars.

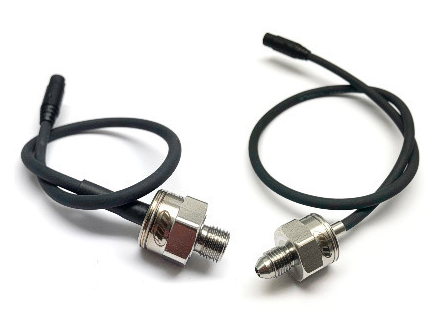

The sensor is sold with two different threads, whose part number is:
• 0-160 bar M10 - X05PSA00160B10K
• 0-160 bar 3/8 24 - X05PSA00160B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24
Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
