AIM X05PSA00160B10K Установчий комплект і датчик тиску AiM 0-160 бар M10 Photo-0
AIM X05PSA00160B10K Установчий комплект і датчик тиску AiM 0-160 бар M10 Photo-1

AIM X05PSA00160B10K Installation Kit and AiM 0-160 Bar M10 Pressure Sensor

₴12,902.40

Shipping calculated at checkout

AIMP/N: X05PSA00160B10K GTIN: 2000000016160
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

AIM X05PSA00160B10K Installation Kit and AiM 0-160 Bar M10 Pressure Sensor

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

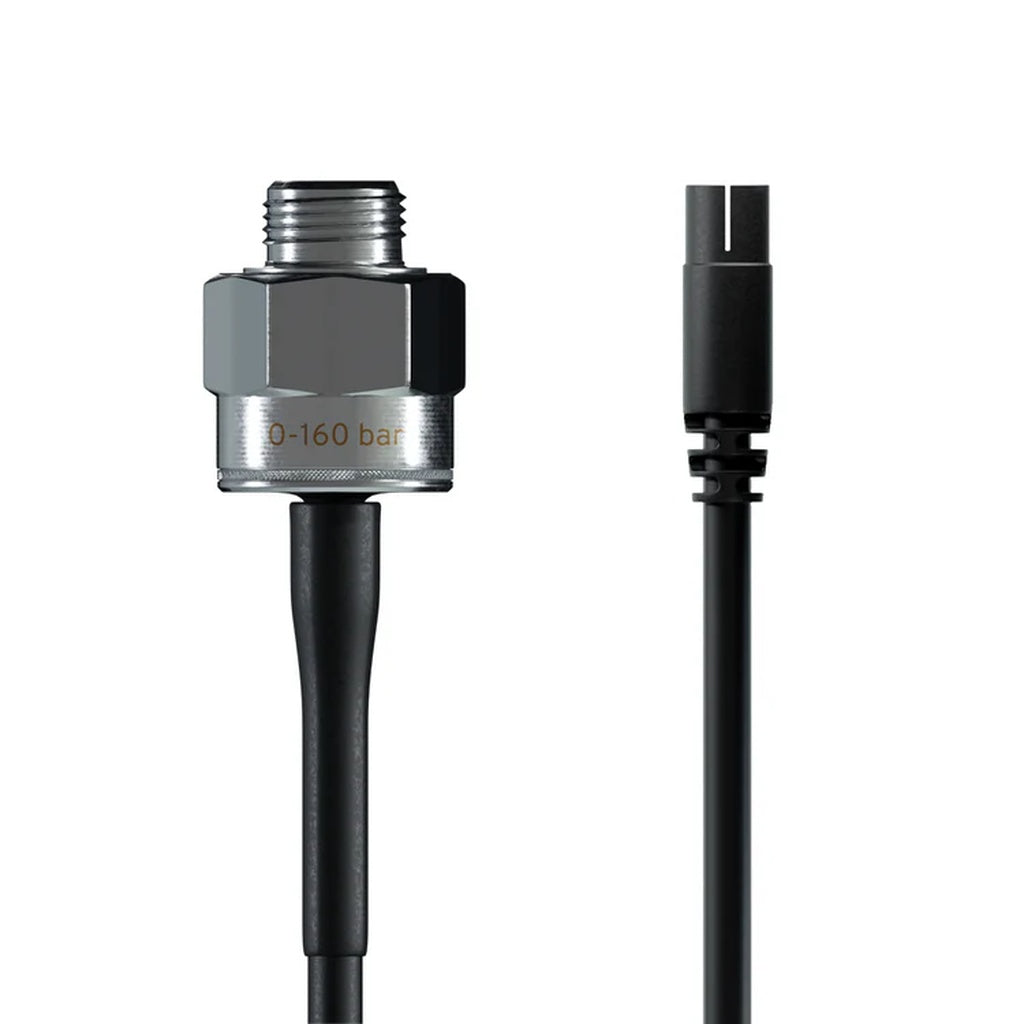

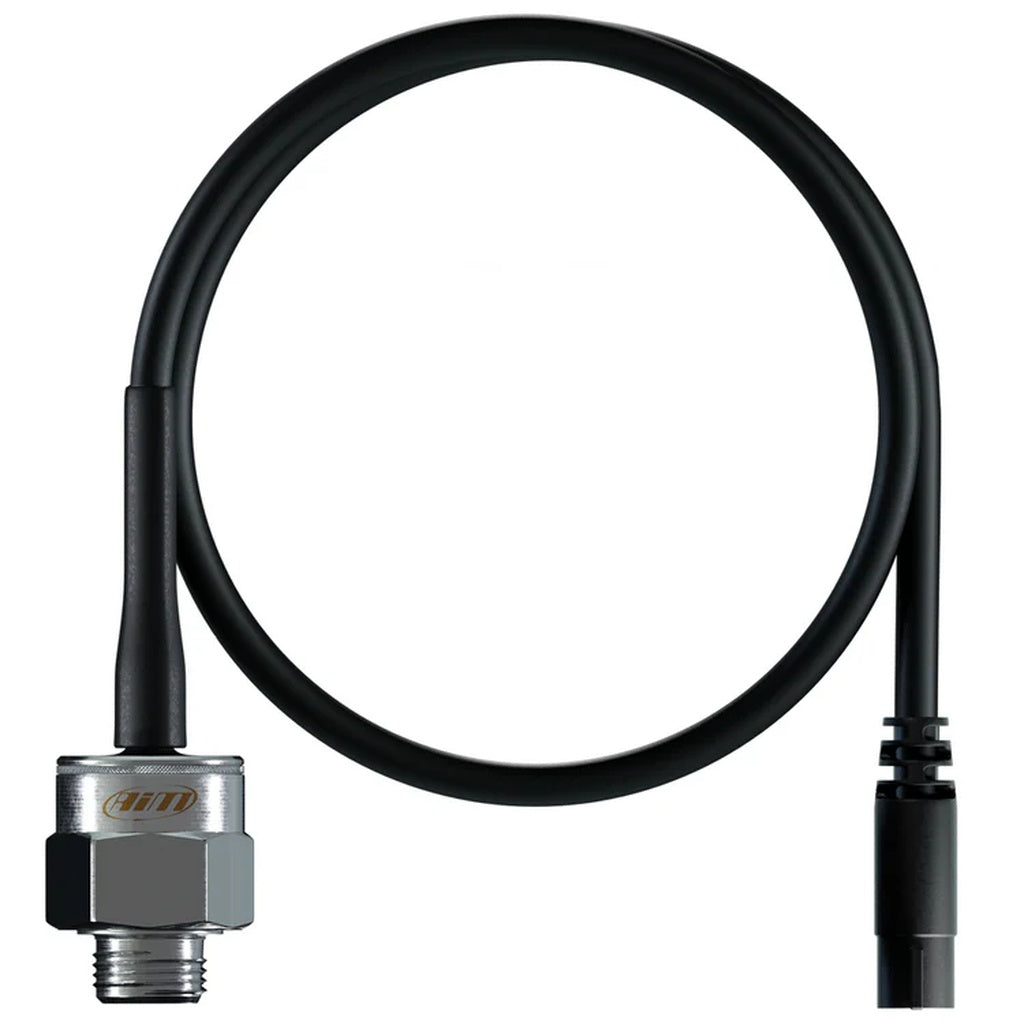

The AiM X05PSA00160B10K kit is designed for secure and precise installation of an oil pressure sensor in high-performance and motorsport applications. It provides stable sensor integration even under extreme temperature and vibration conditions. The kit includes both the AiM 0–160 bar M10 pressure sensor and all required fittings, allowing full system implementation without additional parts.

Kit Contents:

  • AiM 0–160 bar pressure sensor with M10 thread
  • 2 lock nuts
  • 2 nipples
  • Metallic “T” junction with M10 thread

Specifications:

  • Supply: 8–16 V
  • Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Output Signal: 0.5 V to 4.5 V
  • Characterisation: 500 mV/0 bar, 4500 mV/160 bar
  • Consumption: < 10 mA
  • Temperature Working Range: -20°C to 135°C
  • Sealing: IP66
  • Housing: 316 Stainless Steel
  • Weight: 30 g
  • Cable Length: 400 mm
  • Thread: M10
