AiM 0-100 bar M10 pressure sensor is suitable for brake pressure reading, being able to read pressures up to 100 bars.

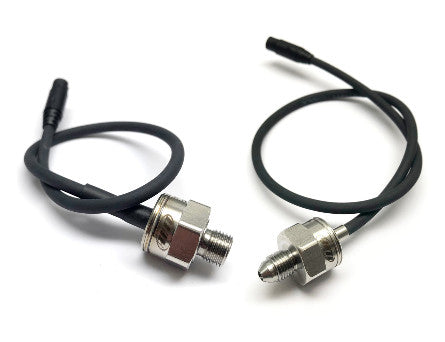

The sensor is sold with two different threads, whose part number is:
0-100 bar M10 - X05PSA00100B10K
• 0-100 bar 3/8 24 - X05PSA00100B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24
Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
