AIM X05PSA00005B38K AiM pressure sensor 0-5 bar
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
AIM X05PSA00005B38K AiM pressure sensor 0-5 bar
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
AiM 0-5bar pressure sensor is suitable for oil, fuel and water pressure reading, being able to read pressures up to 5 bars.

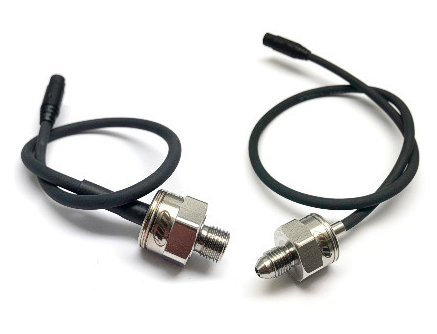

The sensor is sold with two different threads, whose part number is:
• 0-5 bar M10 X05PSA00005B10K
• 0-5 bar 3/8 24 X05PSA00005B38K
- Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
