AIM X05PSA00005B38AK Датчик тиску AiM 0-5 бар Абсолютний Photo-1

AIM X05PSA00005B38AK AiM pressure sensor 0-5 bar Absolute

Sale price₴12,096.00

Shipping calculated at checkout

AIMP/N: X05PSA00005B38AK
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

AIM X05PSA00005B38AK AiM pressure sensor 0-5 bar Absolute

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611
0-5bar absolute pressure sensor is suitable for manifold air pressure reading (MAP), being able to read depressions up to -1 bar in relation with atmospheric pressure, additionally to absolute pressures up to 4 bars.

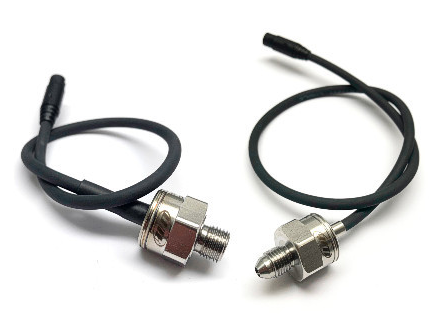

The sensor is sold with two different threads, whose part number is:
• 0-5 bar absolute M10 X05PSA00005B10AK
• 0-5 bar absolute 3/8 24 X05PSA00005B38AK

Technical characteristics:
  • Supply - 8-16 V
  • Accuracy  - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
  • Consumption - < 10 mA
  • Temperature working range - from -20°C to 135°C
  • Sealing - IP66
  • Housing - 316 stainless steel
  • Weight - 30 g
  • Cable - length 400 mm
  • Thread  - M10 – 3/8 24

Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
