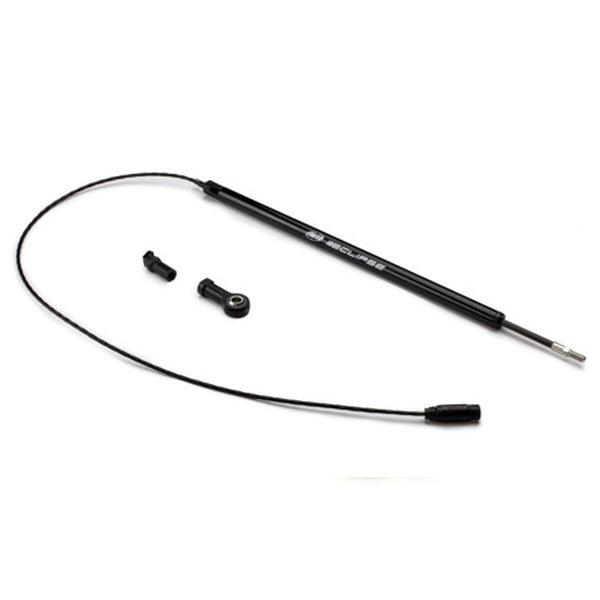

AIM X05ELP075ABJ ECLIPSE Car / Bike Linear Potentiometer with Quick Release Ball Joint

Linear Displacement Measurement Sensor for AiM Loggers

AiM loggers utilize a linear potentiometer sensor to measure displacement between two points via direct mechanical connection. This sensor is ideal for applications requiring precise linear displacement data such as damper compression and extension or steering rotation via rack displacement. The AiM ECLIPSE potentiometers feature M4x0.7mm male threads on both ends for secure mounting.

Installation guidelines emphasize careful handling to avoid bending the internal cylinder, which can occur from over-tightening or improper mounting. The internal cylinder should be extended approximately 5 mm from the sensor’s lower boundary. The sensor is designed to measure displacements within its maximum travel range and is not suitable for exceeding this limit.

• Measures linear displacement such as suspension damper movement and steering rack travel
• M4x0.7mm male threads on both ends for mounting
• Handle carefully to prevent bending and damage
• Internal cylinder extraction approx. 5 mm from lower limit for installation

Specifications:

• Output Signal Voltage Reference: 5 V DC
• Signal Output: 500 mV at 0 position, 4500 mV at full range
• Repeatability: ≤ 0.01 mm
• Operational Speed: ≤ 10 m/s
• Mechanical Life: > 25 million cycles
• Independent Linearity: ≤ ±0.5%
• Operating Temperature Range: -30°C to +100°C
• Ingress Protection: IP65
• Housing Material: Fiberglass reinforced epoxy resin
• Shaft Material: Carbon fibre
• Weight: 20 to 40 g
• Cable Type: High temperature M22759 AWG26 wires with Viton sleeve
• Cable Length: 500 mm
• Mounting Interface: M4x0.7 male thread
