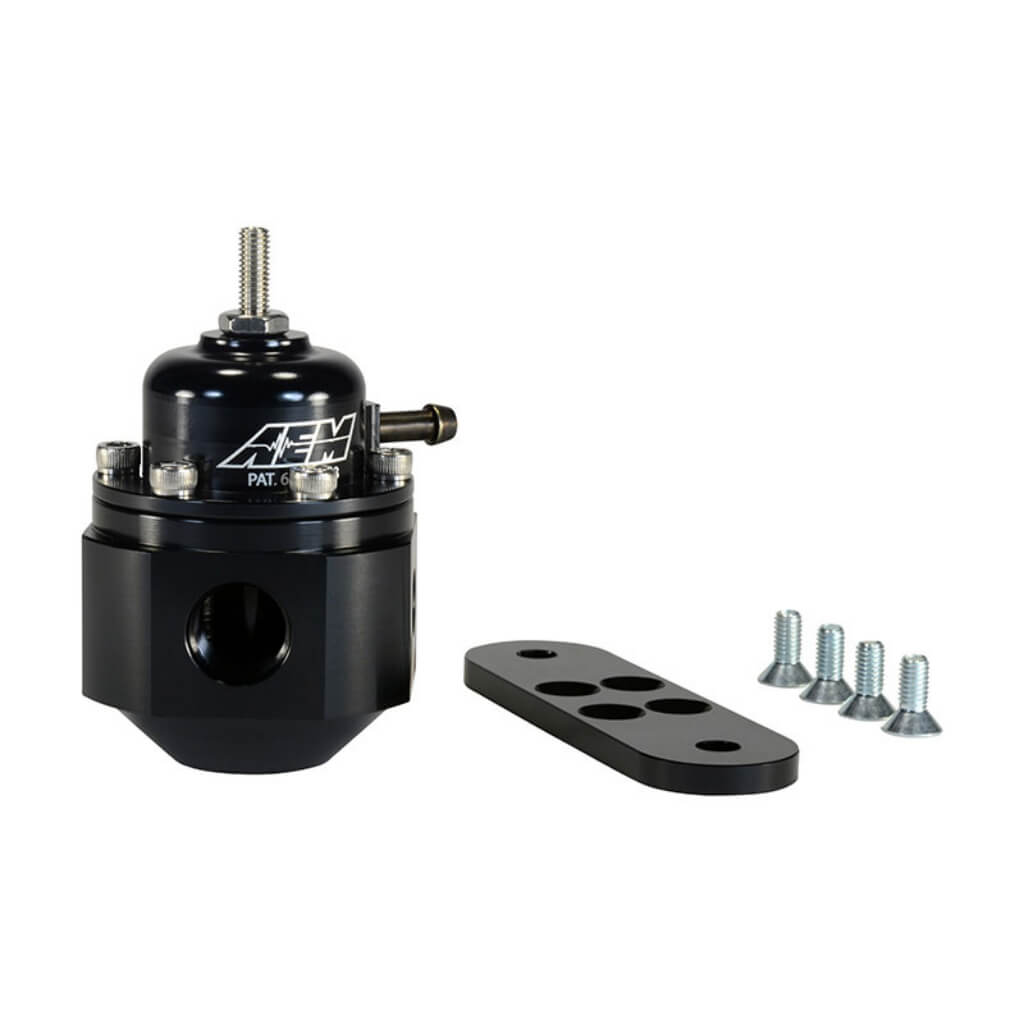

AEM 25-302BK Fuel Pressure Regulator 20-150 psi Black Anodized Universal
Quantity:
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
AEM 25-302BK Fuel Pressure Regulator 20-150 psi Black Anodized Universal
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
AEM's Universal Adjustable Fuel Pressure Regulator (AEM 25 302BK) is capable of supporting enough fuel flow for engines up to 1000 horsepower. The universal AEM FPR is tapped to accept a -6 AN, or 9/16”x18 fittings and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.
- Universal fuel pressure regulator adapts to virtually any vehicle
- Adjustable from 20 psi to maximum fuel pump capacity
- Supports fuel flow in racing applications up to 1,000 horsepower
- Boost dependent rising fuel pressure rate
- CNC-machined from 6061-T6 billet aluminum
- In the box: Regulator, Mounting Bracket
Technical specs
- Inlet Attachment - Female Threads
- Fittings Included - No
- Mounting Bracket Included - Yes
- Gauge Port - Yes
- Inlet Quantity - One
- Regulator Style - Return
- Boost/Vacuum Reference Port - Yes
- Rebuildable - Yes
- Regulator Location -Inline
- Regulator Finish- Black anodized
- Outlet Attachment - Female Threads
- Pressure Range (psi) - 20-150
- Outlet Quantity - One
- Regulator Material - Aluminum
- Inlet Size -6 AN
- Outlet Size -6 AN
- Return Attachment - Female Threads
- Boost/Vacuum Rise Ratio - 1:01
- Return Fitting Size -6 AN
