AEM 30-0334 Wideband UEGO AFR Sensor Controller Gauge X-Series With OBD2 Connectivity

AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is validated to work with DiabloSport in Tune 3, Trinity 2, EFILive, HPTuners and DashDaq software.

Features

• X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
• Patented X-Digital wideband technology (Patent 9,575,030)

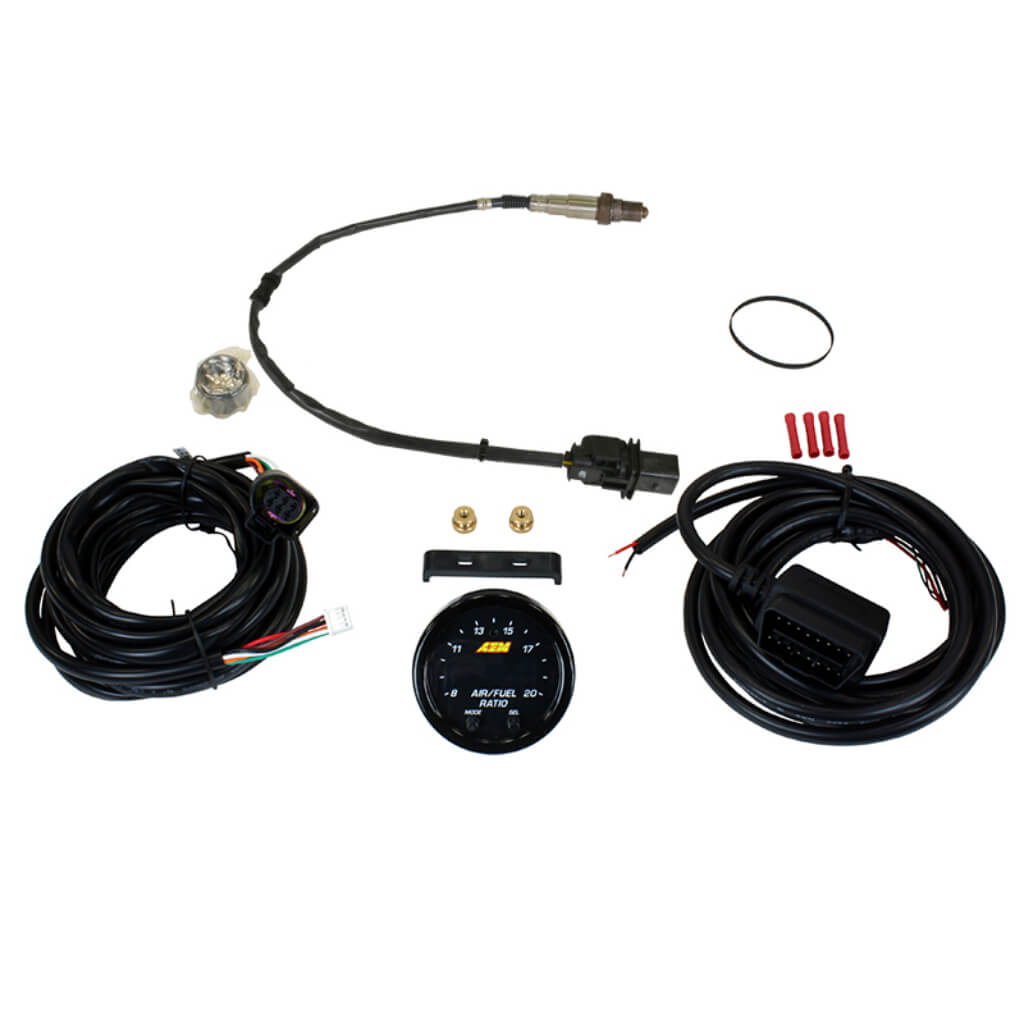

• Includes Bosch 4.9LSU wideband UEGO sensor
• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Can display AFR values in hundredths of %

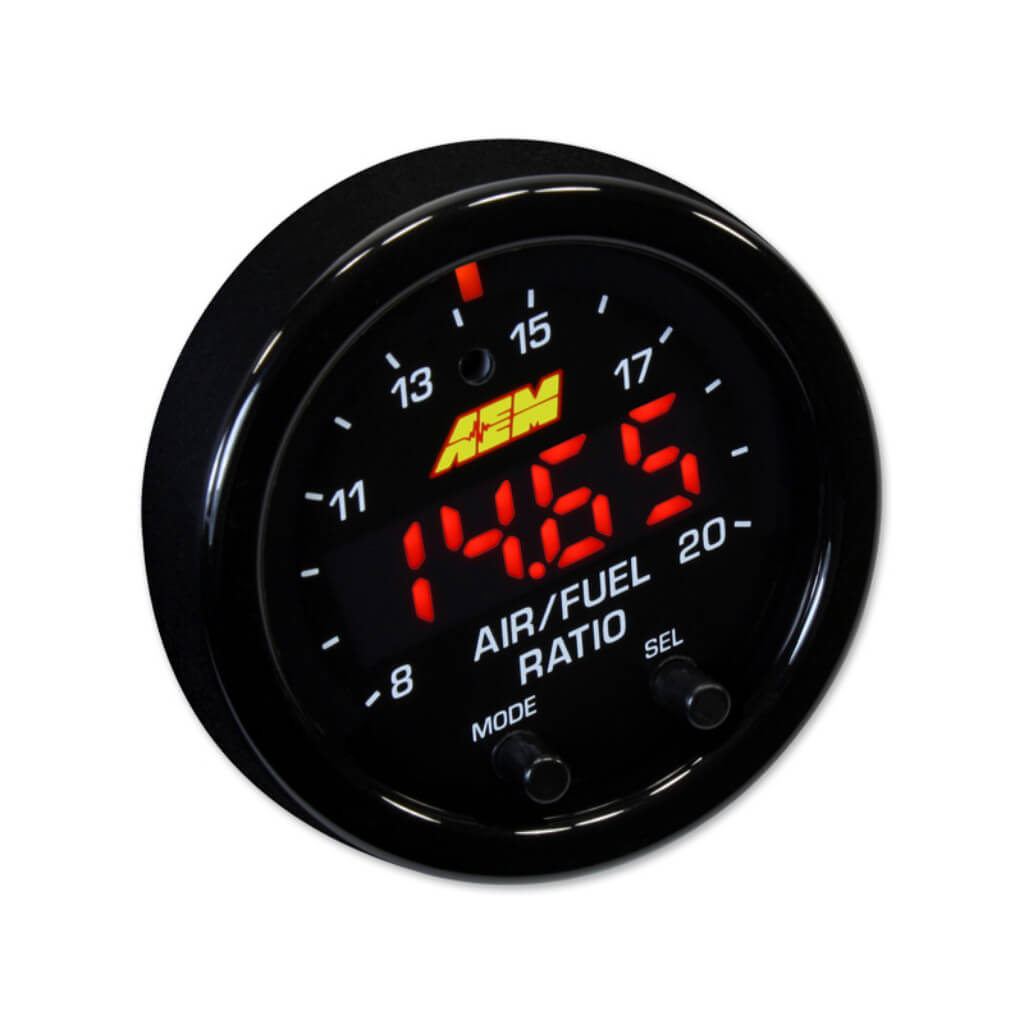

• 52mm gauge diameter and slim 0.825\" gauge depth
• Gauge cup depth only .200\" deep!
• Auto dimming feature
• User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
• Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
• Locking connectors
