Turbocharger Cartridges as a Key Component of the Turbocharger Assembly

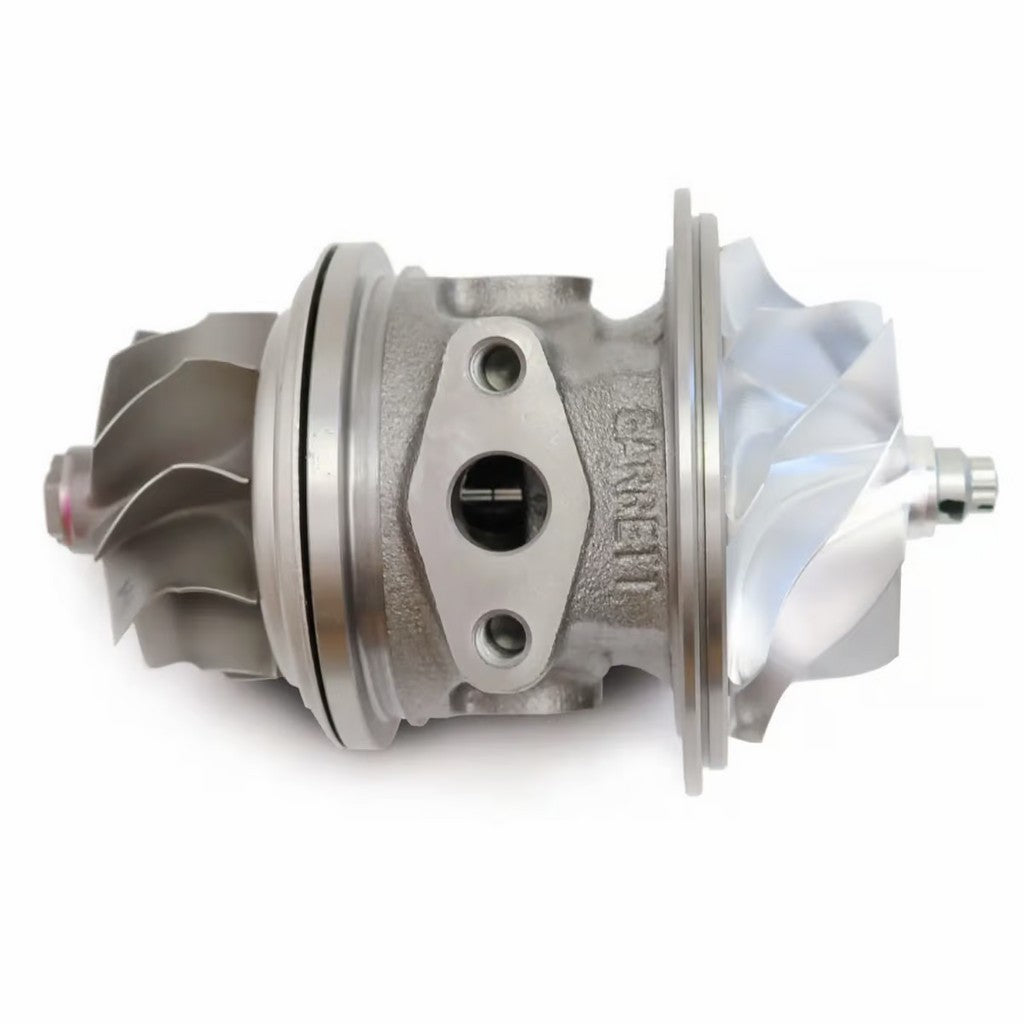

Turbocharger cartridges, also known as central assemblies or CHRA (Center Housing Rotating Assembly), are the core of the forced induction system. This unit contains all rotating components: the shaft, turbine and compressor wheels, as well as the bearing system. In practice, the condition of the cartridge determines not only boost performance but also the overall lifespan of the engine.
During operation, the CHRA unit is exposed to extreme loads. Exhaust gas temperatures at the turbine inlet often exceed 900°C, while the rotor can reach speeds of up to 250,000 RPM. Under such conditions, even micron-level imbalance or microcracks in the material can lead to immediate failure of the assembly. Therefore, the use of high-precision components is essential for projects of any level.
The ATOMIC-SHOP range includes cartridges from a global industry leader — Garrett Advancing Motion. The brand’s products are considered a benchmark of reliability, proven through years of use in professional motorsport and OEM applications for leading automotive manufacturers.
CHRA Construction and Functional Role of Components
The cartridge integrates all functional elements responsible for air compression. The main components include:
- Shaft with turbine wheel: Manufactured from heat-resistant alloys (such as Inconel) to withstand thermal stress.
- Compressor wheel: Often produced using billet technology (machined from a solid block), reducing weight and improving response.
- Bearing system: Ensures stable shaft rotation with minimal friction.
- Sealing system: Prevents engine oil from entering the intake or exhaust system.
Modern Garrett designs place particular emphasis on ball bearing systems. Compared to traditional journal bearings, they significantly reduce mechanical resistance, allowing the turbocharger to reach operating boost faster and reducing turbo lag.
Engineering Precision: VSR Balancing and Sealing Integrity
Cartridge manufacturing requires extreme precision. A critical stage is VSR balancing (Vibration Sorting Rig). This is a final test of the assembled unit at speeds close to real operating conditions. Only this process ensures the absence of vibrations, which are the primary cause of premature wear of bearings and shafts.
The lubrication system within the CHRA performs a dual function: minimizing friction and dissipating excess heat. In high-performance Garrett turbochargers, the cartridge housing is additionally equipped with water cooling channels. This is crucial to prevent oil coking after engine shutdown, which is a common cause of failure in tuning projects.
Applications in Repair and Professional Tuning
Replacing the cartridge is the most effective way to restore a turbocharger. This approach allows you to obtain a virtually new unit while retaining the original housings. It is a practical solution for both daily-driven vehicles and motorsport applications.
In performance tuning projects, replacing the stock cartridge with an upgraded or higher-performance unit allows you to:
- Modify boost characteristics without complete reconfiguration of piping and exhaust.
- Increase system reliability under higher boost pressure.
- Improve acceleration dynamics through lighter rotor materials.
Criteria for Selecting a Turbocharger Cartridge
When selecting a CHRA unit, it is critically important to ensure full compatibility with the turbocharger’s serial number. Even minor differences in compressor trim or shaft diameter can make installation impossible or result in incorrect engine operation.
For professional racing applications, we recommend choosing cartridges with ceramic ball bearings. They offer increased durability under extreme temperatures. Garrett products in this segment remain industry-leading due to patented manufacturing technologies and strict quality control at every stage.
Impact on Engine Reliability and Safety
A high-quality cartridge ensures a "clean" intake system. Low-quality alternatives often suffer from sealing issues, leading to oil leakage into the intercooler and combustion chamber, causing smoke and unstable engine operation. Installing original CHRA units guarantees stable air-fuel mixture conditions and compliance with designed boost parameters.
At ATOMIC-SHOP, you will find only certified cartridges and related components. Our experts will help you select the optimal solution for restoring your turbocharger or preparing your engine for new performance achievements on the track.
