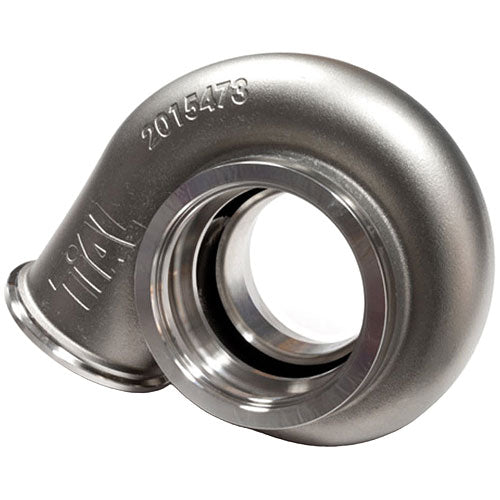

TIAL 003018 TIALVB42116 Хаузинг турбины GT42 1.16 A/R

_Lightweight stainless steel turbine housing for the GT/X 42 series turbochargers. Compatible with the 82mm 84 trim turbine wheel_ __SPECIFICATIONS__ Typically lighter weight than a corresponding iron housing of the same A/R Investment cast stainless steel for a beautiful, smooth interior and exterior Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts Three A/R options Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays Better heat retention than cast iron Pivoting of the turbo 360\* possible __CONFIGURATION__ Flange Materials 304L Stainless Pipe Size Inlet Flange: 2.75" OD, Outlet Flange: 4.00" OD Flanges/Clamps Included? No Housing Weight 13.3lbs (largest A/R) Turbine Wheel 82mm 84 Trim __INCLUDED WITH EVERY HOUSING__ Turbine Housing __AVAILABLE A/R__ 1.02 1.16 1.30 __TIAL V-BAND CLAMP AND FLANGE SYSTEM__ TiAL V-Band flanges are manufactured in house TVBFL42INLET - Inlet Flange VC381 - Inlet Clamp TVBFL42DC40 - Outlet Flange VC450 - Outlet Clamp VC450 - CHRA to Housing Clamp
