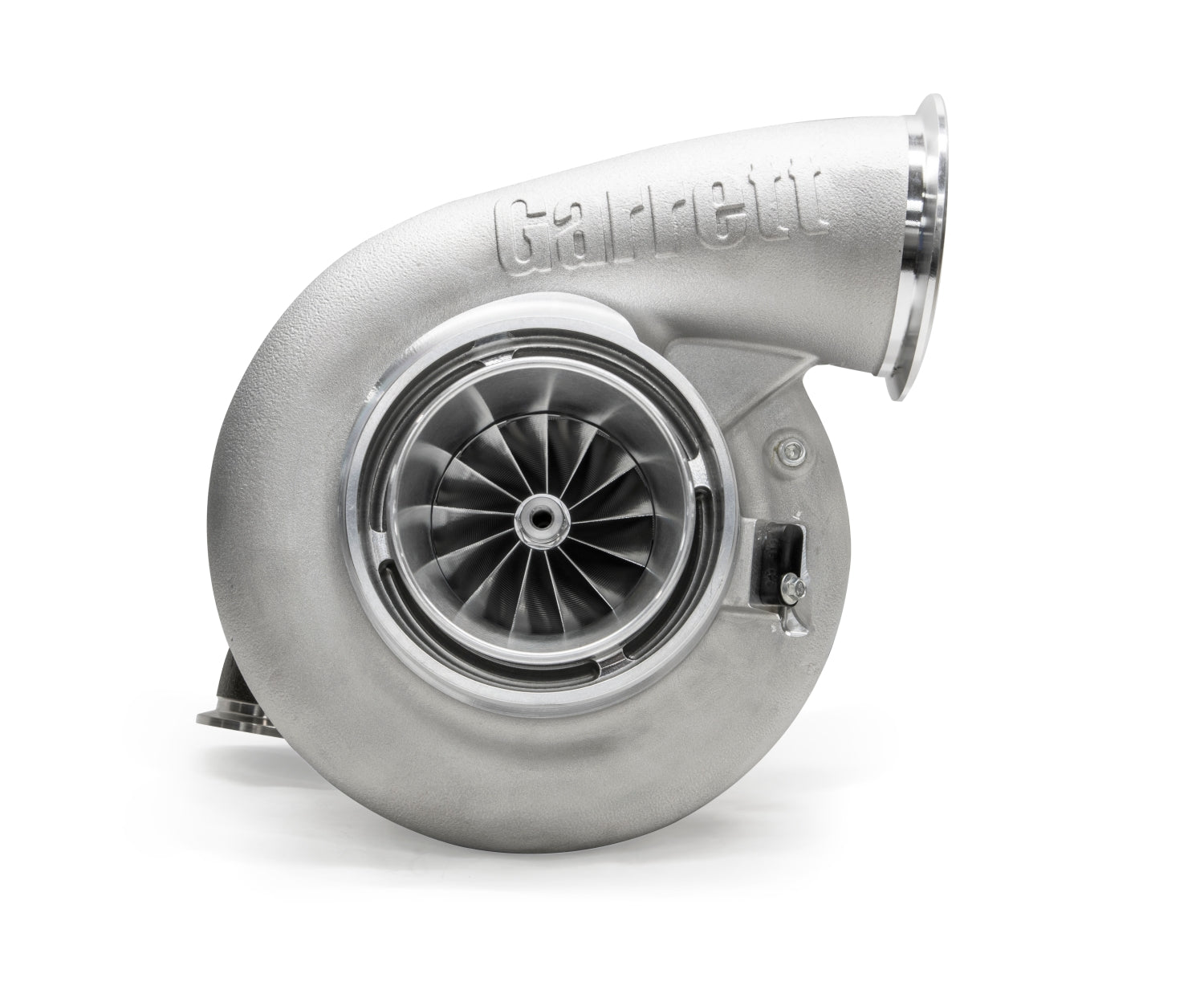

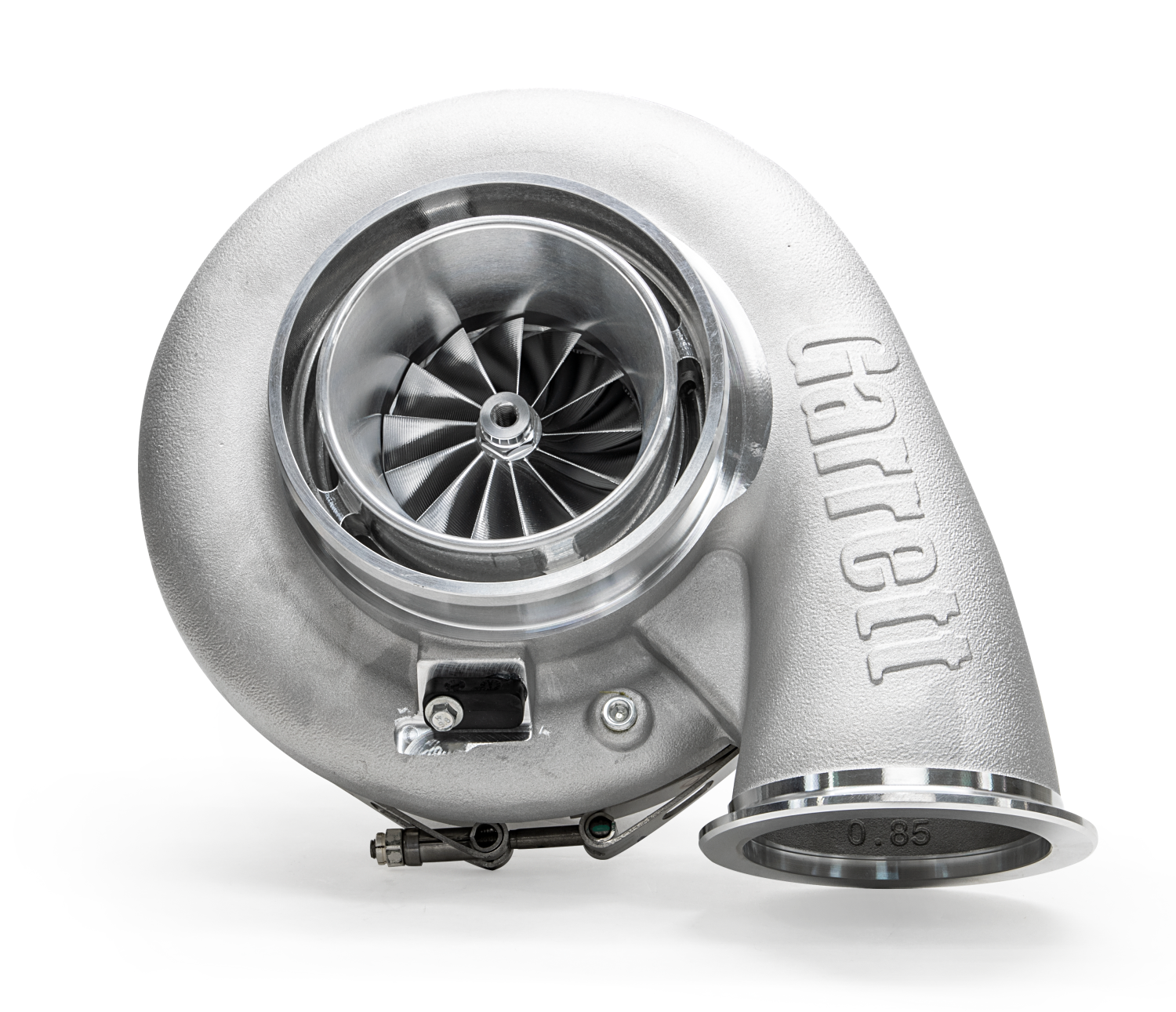

GARRETT 888169-5005S Турбина G45-1500 без горячего хаузинга

An exciting new addition to the G Series performance product line. G45 mid-frame turbochargers are engineered for 2.0L - 8.0L engine displacements and capable of supporting from 600 - 1500 horsepower. G45 provides a 24% increase in compressor flow and a 14% increase in turbine flow when compared to the GTX4508R turbo. Stainless steel turbine housings are available in T4 divided inlet configurations.







• G45-1500 (previously 1550) compressor aero increases flow up to 18% (compared to GTX4508R 76mm)

• G45-1350 compressor aero increases flow up to 15% (compared to GTX4502R 72mm)

• G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)

• G Series turbine aero increases flow 14% (compared to GTX45R)



Horsepower comparisons for each G45 inducer size have been added to the sell sheet. Notably, 76mm has been updated from 1550 to the G45-1500. This was calculated from the compressor map data of the GTX4508R / GTX4502R to better represent the increase in performance in G45. GTX4508R uses an 80mm/108mm compressor wheel and through calculations we can estimate the performance of the new, smaller G45 sizes to produce more power than the GTX4508R turbo.





Features:

Three super core part number configurations: 67mm (600-1125hp), 72mm (650-1350hp), and 76mm (750-1500hp)

Four stainless steel T4 divided turbine housing configurations: 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R

Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min

Lightweight aluminum backplate

Fully machined speed sensor and pressure ports

Water fittings included with super core

Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter



---

NOTE

For a complete turbine kit, purchase one of the  Turbine Housing with the characteristics you need
