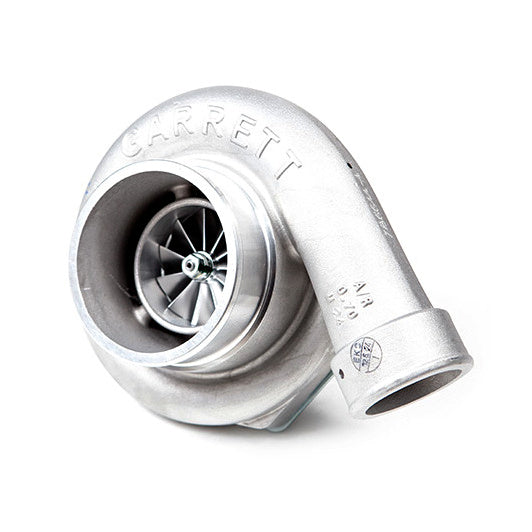

GARRETT 836033-5002S Турбина GT3582R (w/ Ported Shroud)
Количество:
Этот товар поставляется под заказ и недоступен для немедленного самовывоза и отправки. Цена и срок поставки может отличаться. Обратите внимание, что такие товары не подлежат возврату и обмену.
Забрать можно в ATOMIC-SHOP UA
Обычно готов за час
GARRETT 836033-5002S Турбина GT3582R (w/ Ported Shroud)
ATOMIC-SHOP UA
Возможен самовывоз, обычно готов за час
вул. Набережно-Лугова, 29
Київ
02000
Украина
Ball bearing.
Oil & Water cooled bearign system.
Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable
Ideal for medium displacement engines making up to 600 HP
Turbine housing option available.

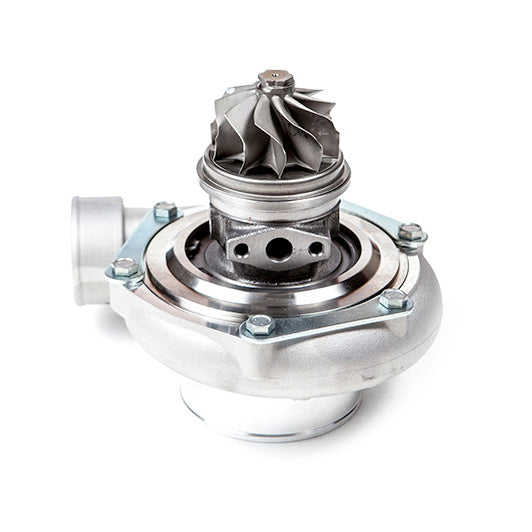

Note: The 836033-5002S GT3582R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836033-5002S | 815113-5002S | GT3582R | 68.0 | 62.0 | 84 | w/t | 82.0 | 61.4 | 56 | .70 |
HORSEPOWER 400HP - 600HP
DISPLACEMENT 2.0L - 4.5L
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 836005-5003S | 706451-5005S |
Applicable Garrett P/N's:
TBO - 815113-0002
CHRA - 706451-0005
| GT35 TURBINE HOUSING OPTIONS | ||
| PART NUMBER | A/R | TYPE |
| 740902-0006 | 0.63 | Free Float |
| 740902-0005 | 0.82 | Free Float |
| 740902-0004 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS (OUTLET WITH V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0012 | 0.63 | Free Float |
| 740902-0011 | 0.82 | Free Float |
| 740902-0010 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS - STAINLESS STEEL (V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0021 | 0.61 | Free Float |
| 740902-0020 | 0.83 | Free Float |
| 740902-0019 | 1,01 | Free Float |
| TURBINE HOUSING OPTIONS - HI SIL (T4 - V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 774301-0012 | 0.63 | Free Float |
| 774301-0011 | 0.82 | Free Float |
| 774301-0010 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS (T3 - 5-BOLTS) | ||
| PART NUMBER | A/R | TYPE |
| 771300-0003 | 0.63 | Wastegated |
| 771300-0002 | 0.82 | Wastegated |
