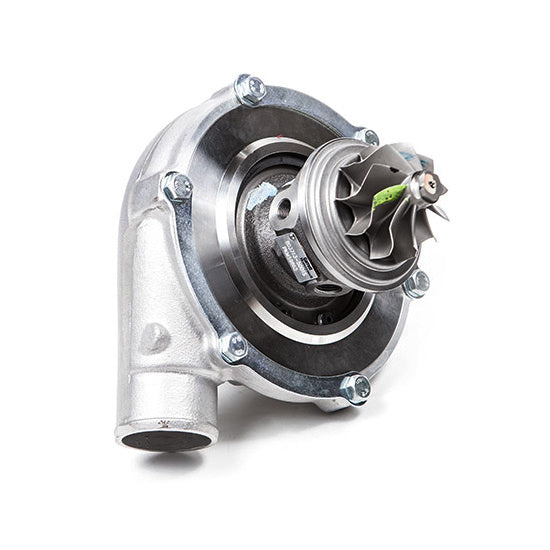

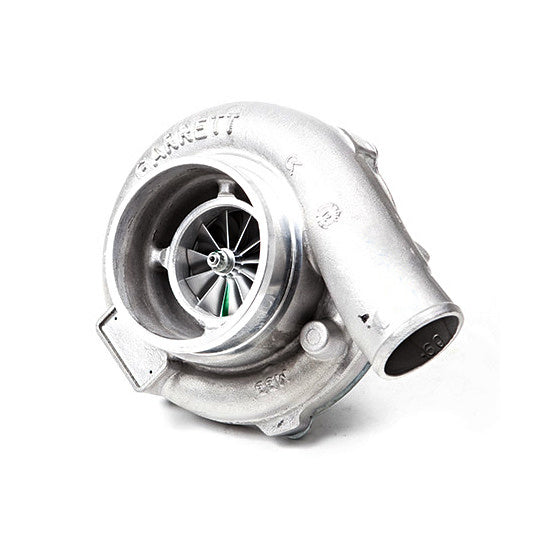

GARRETT 836028-5003S Турбина GT3076R TRIM 84 без горячего хаузинга
Количество:
Этот товар поставляется под заказ и недоступен для немедленного самовывоза и отправки. Цена и срок поставки может отличаться. Обратите внимание, что такие товары не подлежат возврату и обмену.
Забрать можно в ATOMIC-SHOP UA
Обычно готов за час
GARRETT 836028-5003S Турбина GT3076R TRIM 84 без горячего хаузинга
ATOMIC-SHOP UA
Возможен самовывоз, обычно готов за час
вул. Набережно-Лугова, 29
Київ
02000
Украина
Ball bearing.
Oil & Water cooled bearign system.
Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable
Ideal for medium displacement engines making up to 525 hp
Turbine housing option available.
Note: The 700382-0012 GT3076R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836028-5003S | 700382-5012S | GT3076R | 60.0 | 55.0 | 84 | w/t | 76.2 | 57.0 | 56 | .60 |
HORSEPOWER 310HP - 525HP
DISPLACEMENT 2.0L - 3.0L
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 836000-5003S | 700177-5007S |
Applicable Garrett P/N's:
Применяемые альтернативные номера Garrett
TBO - 700382-0012
CHRA - 700177-0007
| TURBINE HOUSING OPTIONS (O/V T3 / 4-Bolted ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0003 | 0.63 | Free Float |
| 740902-0002 | 0.82 | Free Float |
| 740902-0001 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS (O/V T3 / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0009 | 0.63 | Free Float |
| 740902-0008 | 0.82 | Free Float |
| 740902-0007 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS Hi Sil (O/V T4 / V-Band ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0015 | 0.63 | Free Float |
| 740902-0014 | 0.82 | Free Float |
| 740902-0013 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( Div V-Band / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0024 | 0.61 | Free Float |
| 740902-0023 | 0.83 | Free Float |
| 740902-0022 | 1.01 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( Div T3 / V-Band ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0030 | 0.61 | Free Float |
| 740902-0029 | 0.83 | Free Float |
| 740902-0028 | 1.01 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( V-Band / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0036 | 0.61 | Free Float |
| 740902-0035 | 0.83 | Free Float |
| 740902-0034 | 1.01 | Free Float |
