AP RACING CP9561-3S0S10 Тормозной суппорт Radi-CAL (EEK)LHTx36.00-CP7555

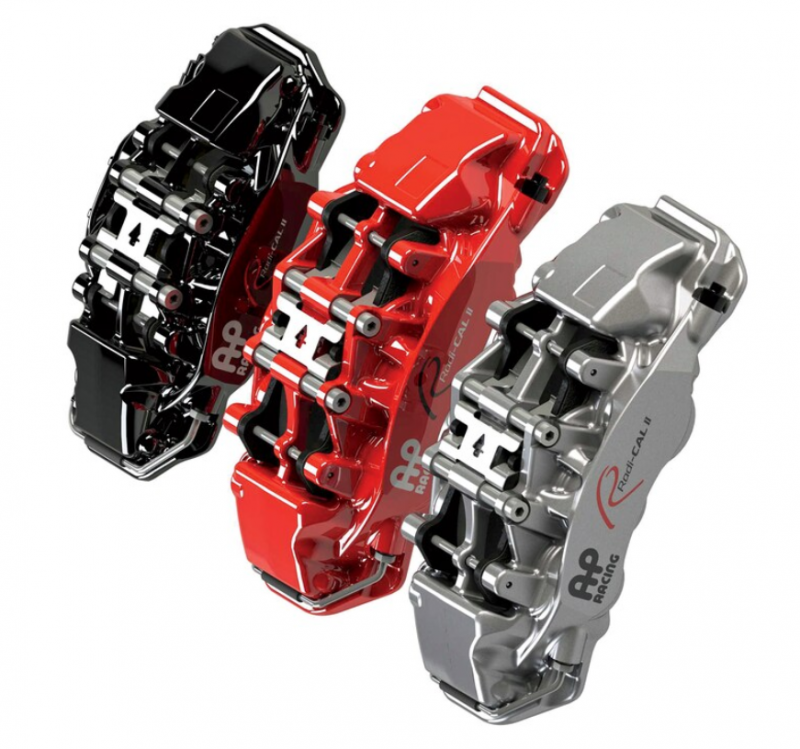

CP9561 Family - 58.6cm² Piston Area ----------------------------------- __Applications:__ \- Performance Road Front or Rear. __Features:__ \- Benefits from our latest radical asymmetric design concept. \- Radial Mount, 195mm centres. \- Suits Ø390mm Max or 356mm Min x 36mm Max or 34mm Min thick discs. \- Forged two piece Aluminium alloy body. \- Aluminium alloy pistons. \- Boot type dirt seals fitted. \- Advanced Red, Black or Silver anti-corrosion paint finish. \- Pad anti-rattle clip fitted. __Black Caliper Part Numbers:__ __RHT = CP9561-2S0BG4 / LHT = CP9561-3S0BG4__ RHL = CP9561-4S0BG4 / LHL = CP9561-5S0BG4 __Red Caliper Part Numbers:__ For Red calipers add __'R12'__ to end of Part Number e.g. CP9561-2S0R12 __Silver Caliper Part Numbers:__ For Silver calipers add __'S10'__ to end of Part Number e.g. CP9561-2S0S10 __Brake Pad__ CP7555D70 \- Pad Area = 108.9cm² \- Pad Depth = 70mm \- Thickness = 16.75mm CALIPER TECHNICAL SPECIFICATIONS Piston Sizes - mm \- Ø31.8 x 4 \- Ø41.3 x 2 Piston Area - cm² 58.6 Disc Diameter - mm \- Max = 390.0 \- Min = 362.0 Disc Diameter - mm \- Max = 36.0 \- Min 34.0 Weight (No Pads) - Kg 4.5 Hydraulic Threads M10x1.0 Mounting Type Radial Mounting centres - mm 195.0 Mounting Offest - mm 49.50 Mounting Hole Ø - mm 12.1 PL Dimension - mm 70.0 Bleed Scrwe Tightening Torque - Nm 17.0 CALIPER SPARES Pistons Ø31.8mm = CP8336-116 x 4 Ø41.3mm = CP8335-111 x 2 Seal Repair Kit CP427-EEK Tube Pad Retainer and Bolt part Nos CP9560-106 x 4 CP5555-156ST Pad Retaining Pin CP7555-116 x 2 Bleed Screw Kit CP3880-1 Pad Anti Rattle Clip CP9560-107
