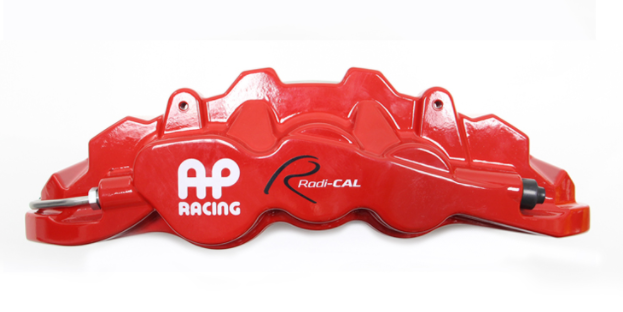

AP RACING CP8520-5S0R2 Тормозной суппорт Radi-CAL (EHK)LHLx35.6-CP7555
Количество:
Этот товар поставляется под заказ и недоступен для немедленного самовывоза и отправки. Цена и срок поставки может отличаться. Обратите внимание, что такие товары не подлежат возврату и обмену.
Забрать можно в ATOMIC-SHOP UA
Обычно готов за час
AP RACING CP8520-5S0R2 Тормозной суппорт Radi-CAL (EHK)LHLx35.6-CP7555
ATOMIC-SHOP UA
Возможен самовывоз, обычно готов за час
вул. Набережно-Лугова, 29
Київ
02000
Украина
CP8520 Family - 62.5cm² Piston Area ----------------------------------- __Applications:__ \- Performance Road Front. \- Factory Radi-CAL™ Brake Kits. __Features:__ \- Benefits from a radical asymmetric design concept. \- Radial Mount, 195mm centres. \- Suits Ø410mm or 380mm x 36mm thick discs. \- Forged two piece Aluminium alloy body. \- Aluminium alloy pistons. \- Boot type dirt seals fitted. \- Advanced Red or Black anti-corrosion paint finish. \- Pad anti-rattle clip fitted. __Black Caliper Part Numbers:__ \- RHT = CP8520-2S0BG \- LHT = CP8520-3S0BG. \- RHL = CP8520-4S0BG \- LHL = CP8520-5S0BG __Red Caliper Part Numbers:__ For Red calipers add __'R2'__ to end of Part Number e.g. CP8520-2S0R2 Brake Pad Information \- Pad Area = 108.9cm² \- Pad Depth = 70mm \- Thickness = 16.75mm CALIPER TECHNICAL SPECIFICATIONS Piston Sizes - mm Ø31.8 / Ø36.0 / Ø41.3 Piston Area - cm² 62.5 Disc Diameter - mm \- Max = Ø410.0 \- Min = Ø380.0 Disc Thickness - mm 36.0 Weight (No Pads) - Kg 4.65 Hydraulic Threads M10x1.0 Mounting Type Radial Mounting Centres - mm 195.0 Mounting Offset - mm 49.50 Mounting Hole Ø - mm 12.10 PL Dimension - mm 70.0 Bleed Screw Tightening Torque - Nm 17 CALIPER SPARES Pistons \- Ø31.8mm = CP8336-116 \- Ø36.0mm = CP8520-107 \- Ø41.3mm = CP8335-111 Seal Repair Kit CP4527-EHK Pad Retainer Type / Part No. Pin / CP7555-116 H / Piece and Bolt CP8520-106 & CP3596-112ST x 2 Bleed Screws CP3880-1 Pad Anti Rattle Clip CP8520-110
