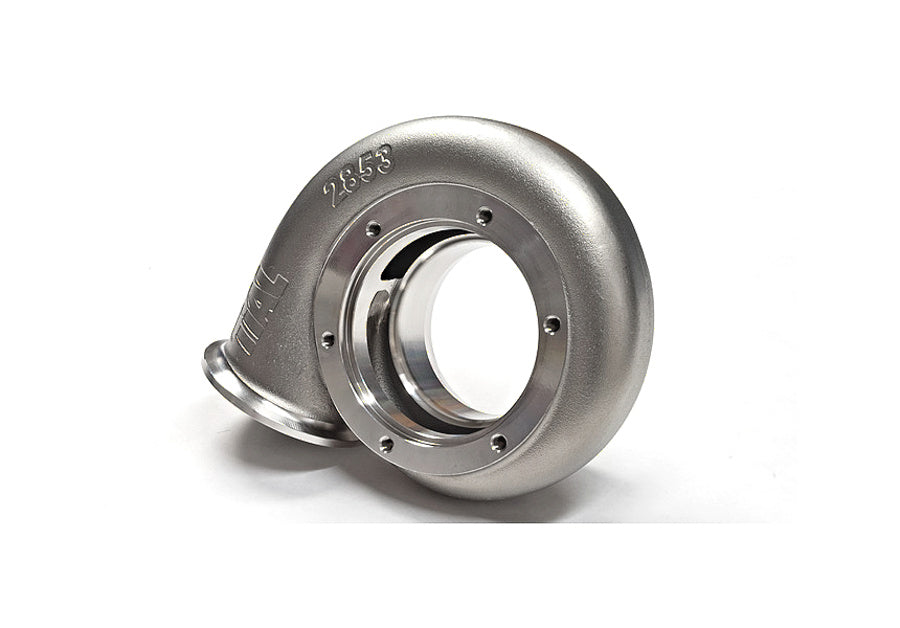

TIAL 002461 TIALVB35103 Хаузинг турбины GT35 1.03 A/R

_Lightweight stainless steen turbine housing for the GT/X 35 series turbochargers. Compatible with the 68mm 84 trim turbine wheel_ __SPECIFICATIONS__ Typically lighter weight than a corresponding iron housing of the same A/R Investment cast stainless steel for a beautiful, smooth interior and exterior Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts Three A/R options Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays Better heat retention than cast iron Inconel bolts provided for vibration and stretching resistance in extreme applications Locking tabs included for high vibration applications Pivoting of the turbo 360\* possible __CONFIGURATION__ Flange Materials 304L Stainless Pipe Size Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD Flanges/Clamps Included? No Housing Weight 6.7lbs (largest A/R) Turbine Wheel 68mm 84 Trim __INCLUDED WITH EVERY HOUSING__ Turbine Housing Three Moon Tabs Six Inconel Bolts Three Locking Tabs __AVAILABLE A/R__ .63 .82 1.03 __TIAL V-BAND CLAMP AND FLANGE SYSTEM__ TiAL V-Band flanges are manufactured in house GTVFL3.0 - Inlet Flange VC300 - Inlet Clamp VBF300M - Outlet Flange VC355 - Outlet Clamp
